Ignition Control Module: Locations

Ignition Control Module:

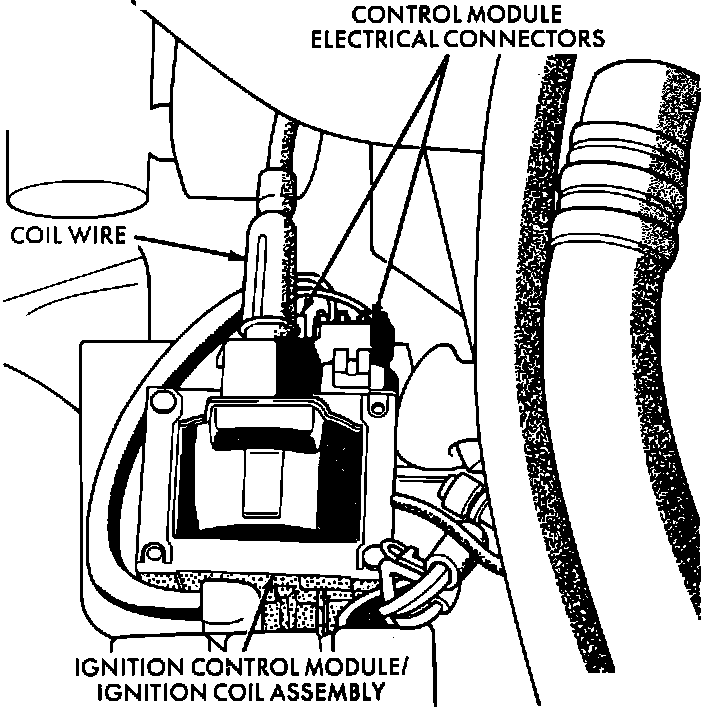

The Ignition Control Module is mounted on the right-hand side of the engine compartment.
