Code 813 - Brake Fault

Fig 1: ABS Module Connector

G93A45559

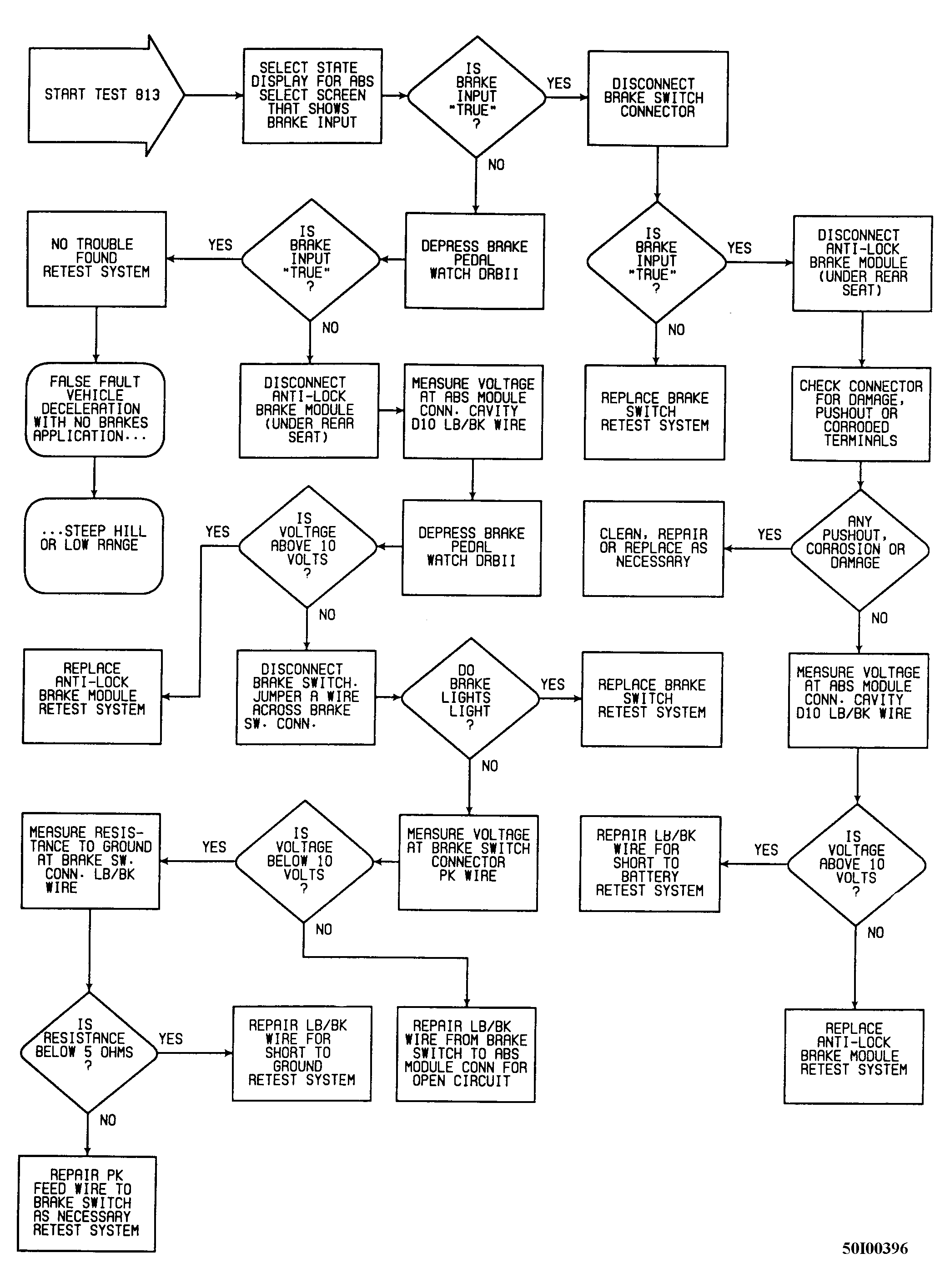

Fig 2: Fault 813: Brake Fault

G50I00396

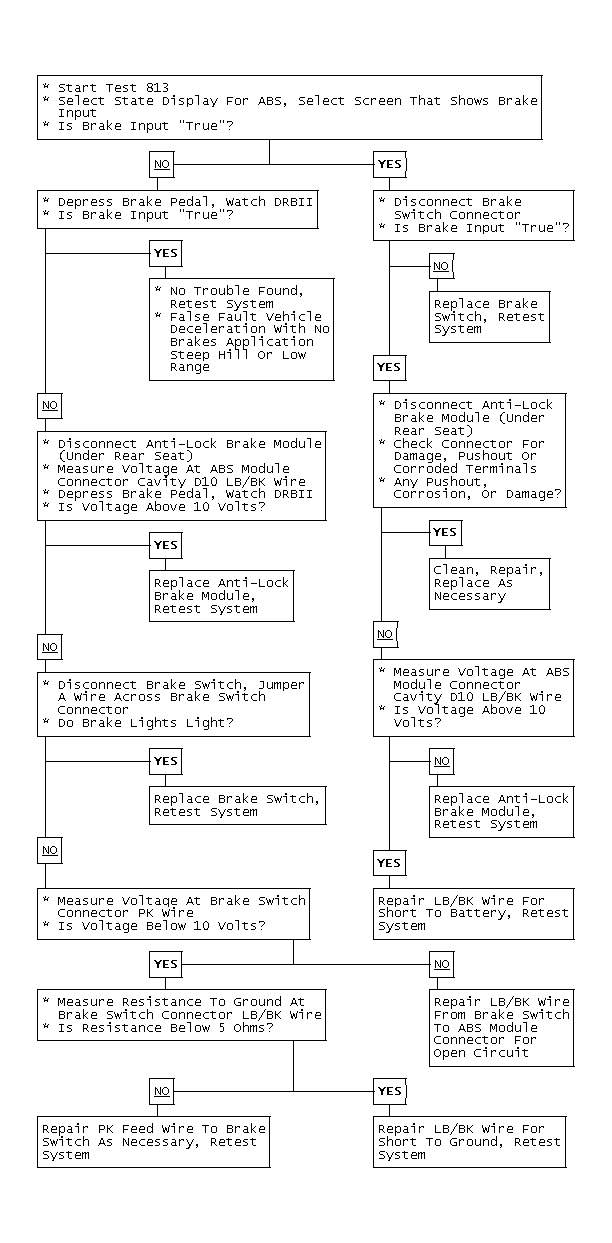

Fig 3: Fault 813: Brake Fault

GB0010723
