Fault 1201: Injector Short To B+

Fig 1: Fault 1201: Circuit Diagram Injector Short to B+
G90F17835
Fig 2: Fault 1201: Flow Chart Injector Short to B+ (1 of 2)
G90A17905

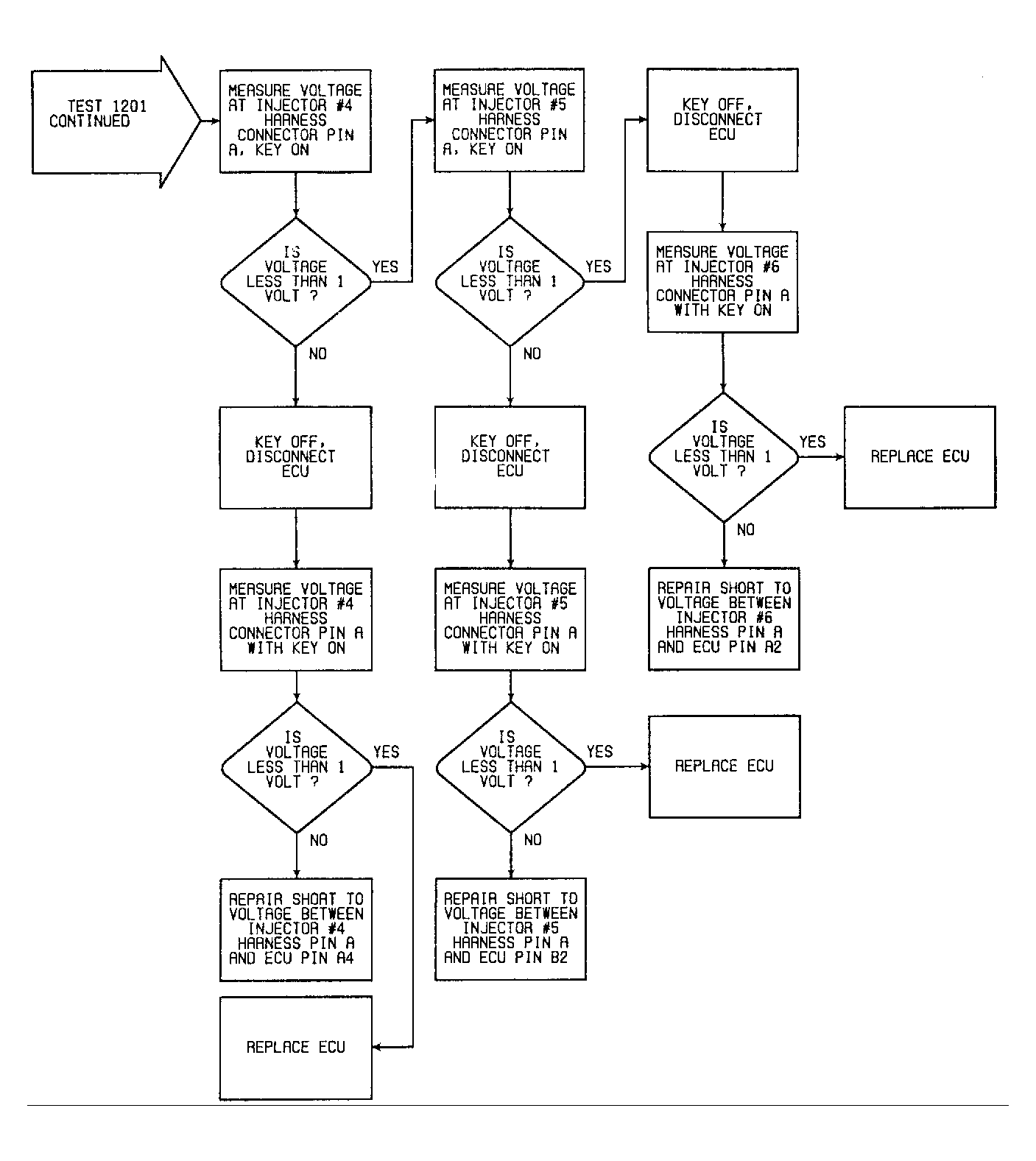

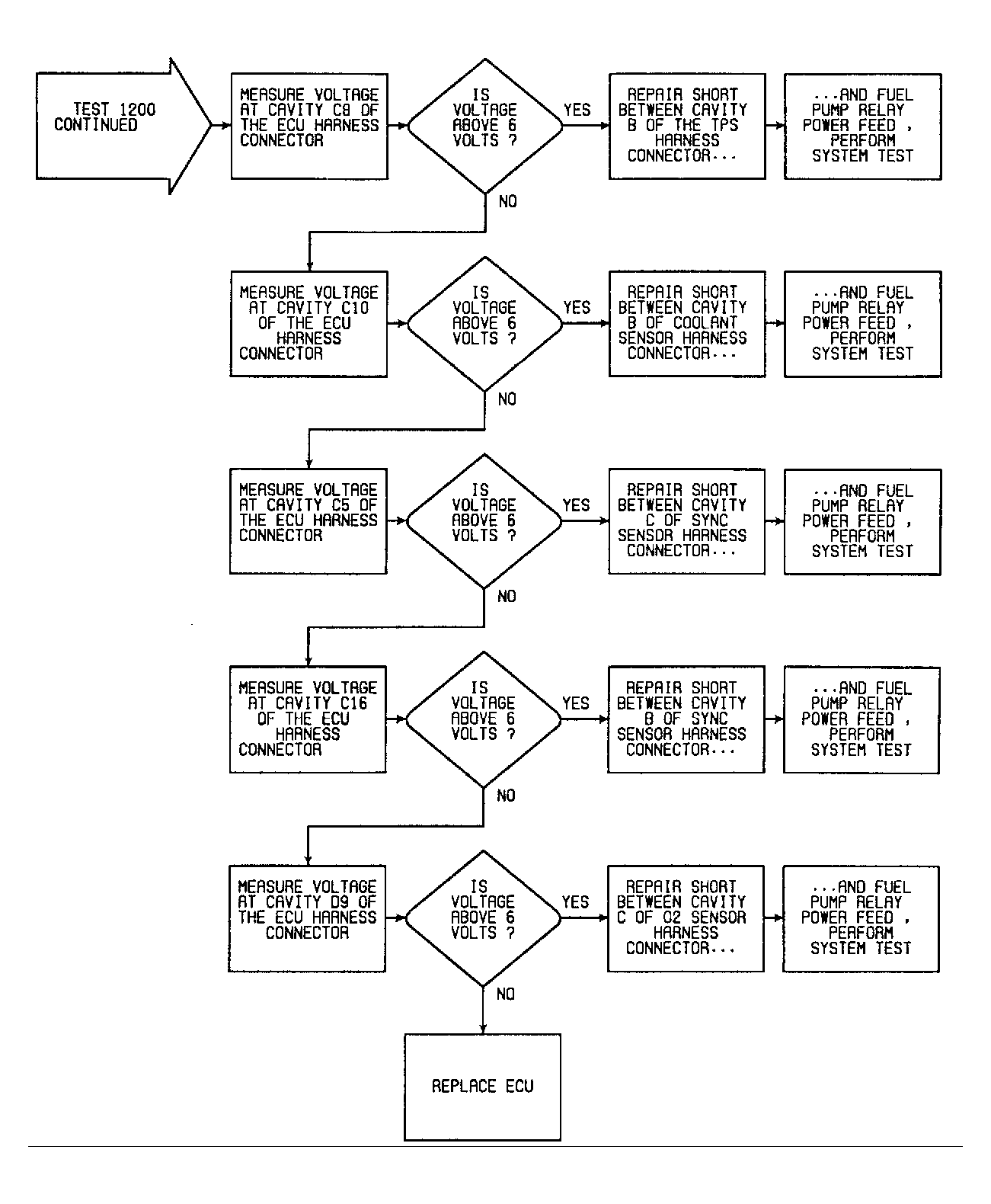

Fig 3: Fault 1201: Flow Chart Injector Short to B+ (2 of 2)
G90B17906
