Code 806 - Boost Pressure Fault

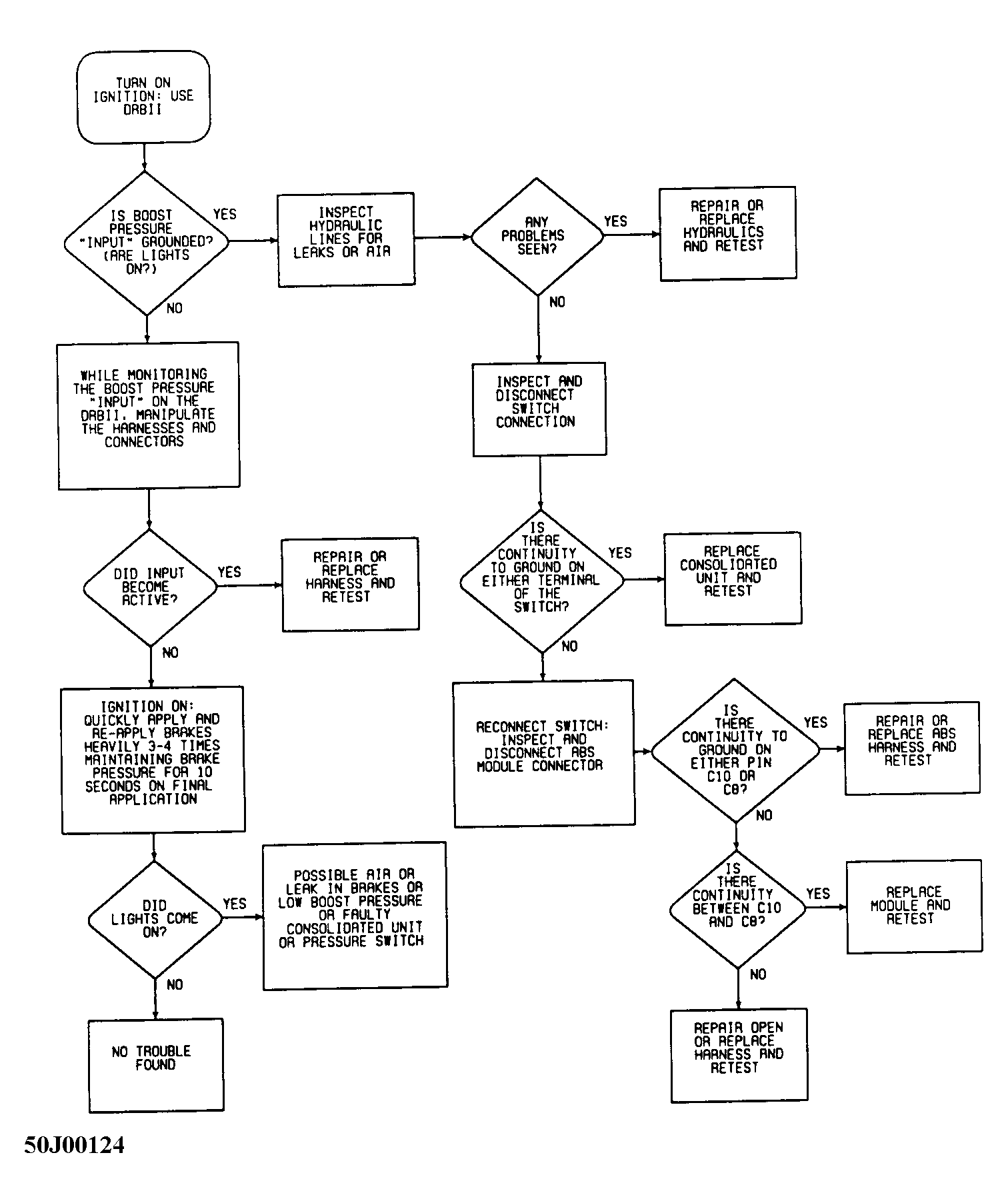

Fig 1: Code 806: Boost Pressure Fault

G50J00124

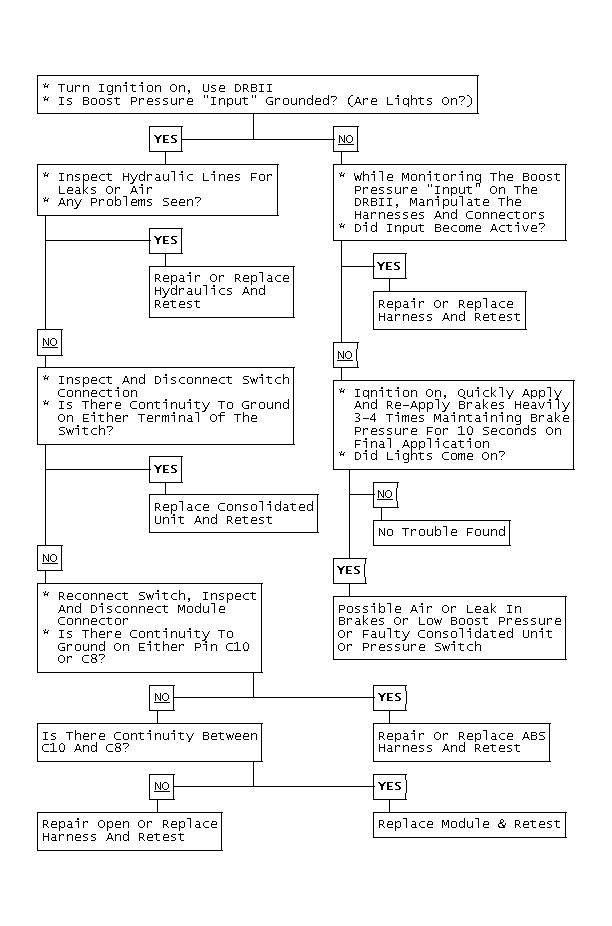

Fig 2: Code 806: Boost Pressure Fault

GB0010692
