Code 803 - Abs Light Inoperative

Fig 1: ABS Module Connector
G93A45559
Fig 2: Instrument Panel Harness Connector
G93F45562

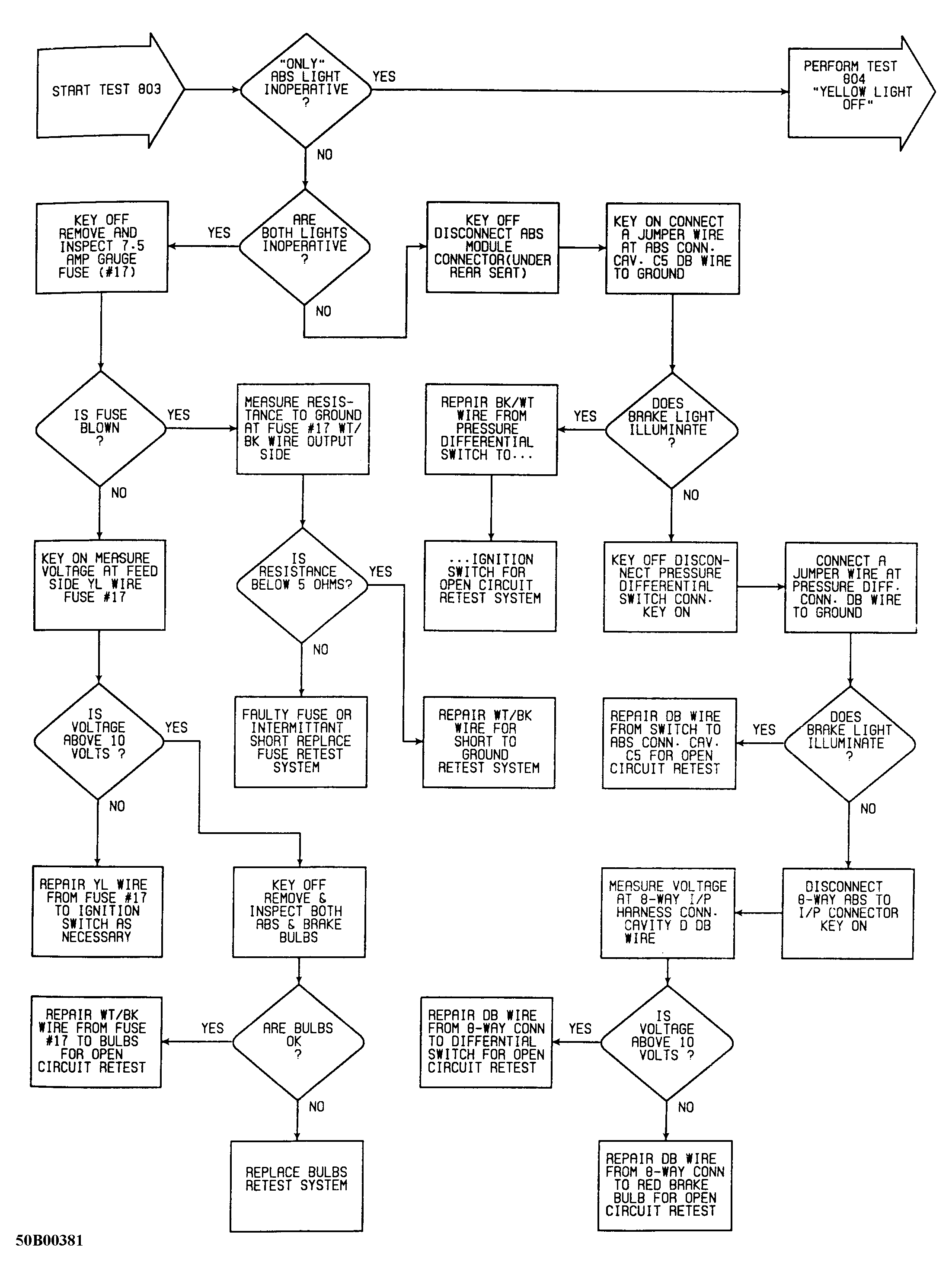

Fig 3: Fault 803: ABS Light Inoperative
G50B00381

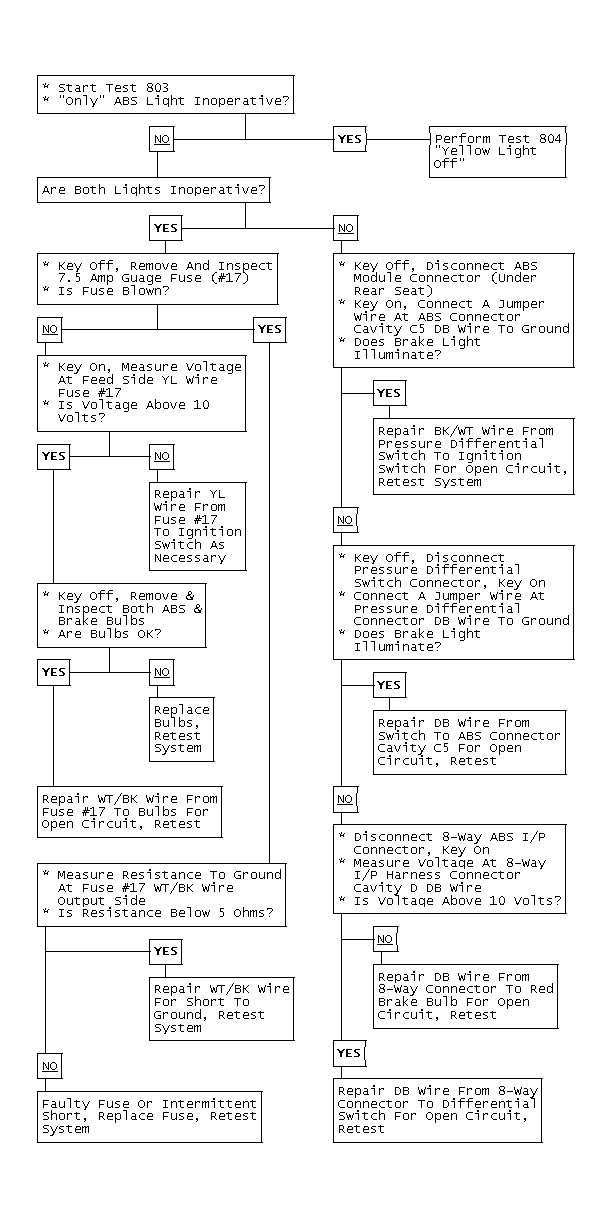

Fig 4: Fault 803: ABS Light Inoperative
GB0010710
