Code 819 - Open In Yellow Light Circuit

Fig 1: ABS Module Connector

Fig 2: Diagnostic Connector D2

Fig 3: Yellow Light Relay Connector

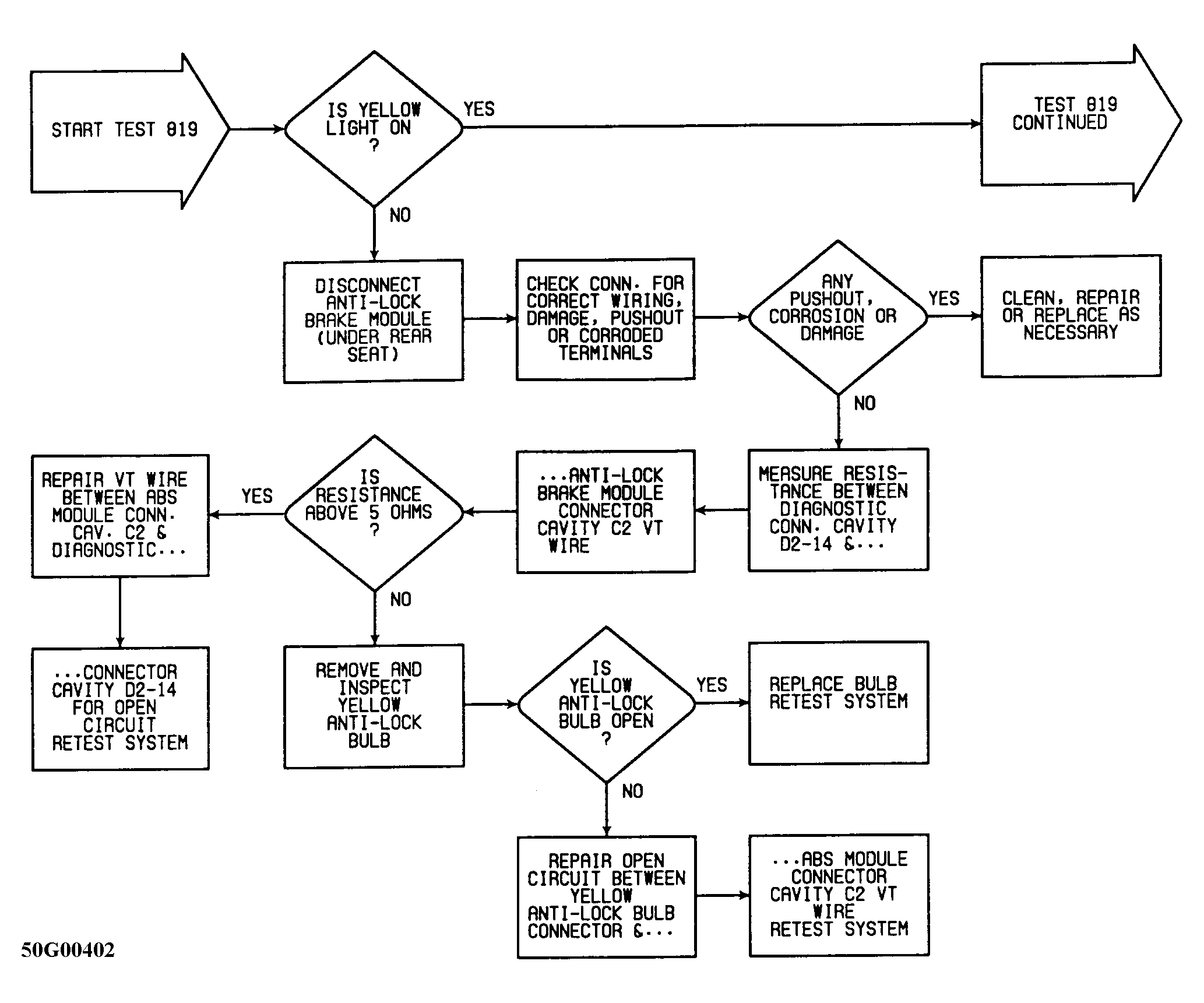

Fig 4: Fault 819: Open In Yellow Light Circuit (1 of 2)

Fig 5: Fault 819: Open In Yellow Light Circuit (1 of 2)

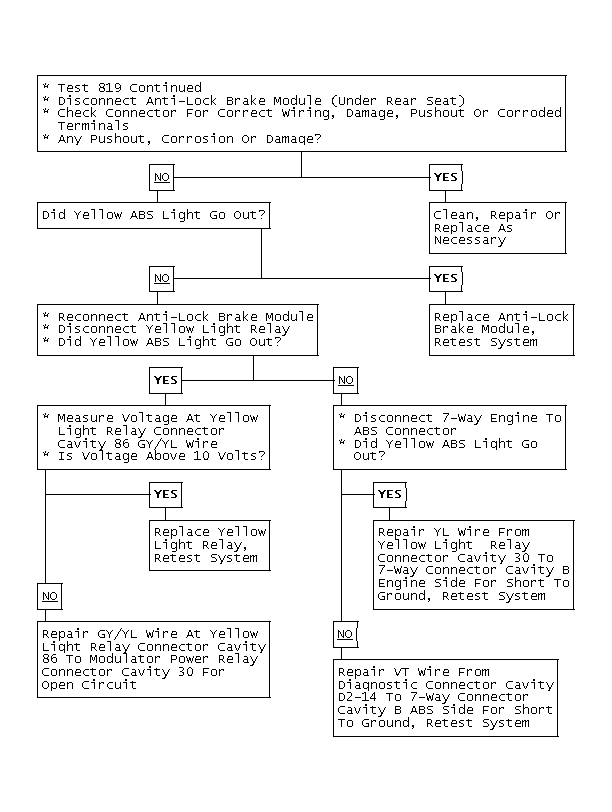

Fig 6: Fault 819: Open In Yellow Light Circuit (2 of 2)

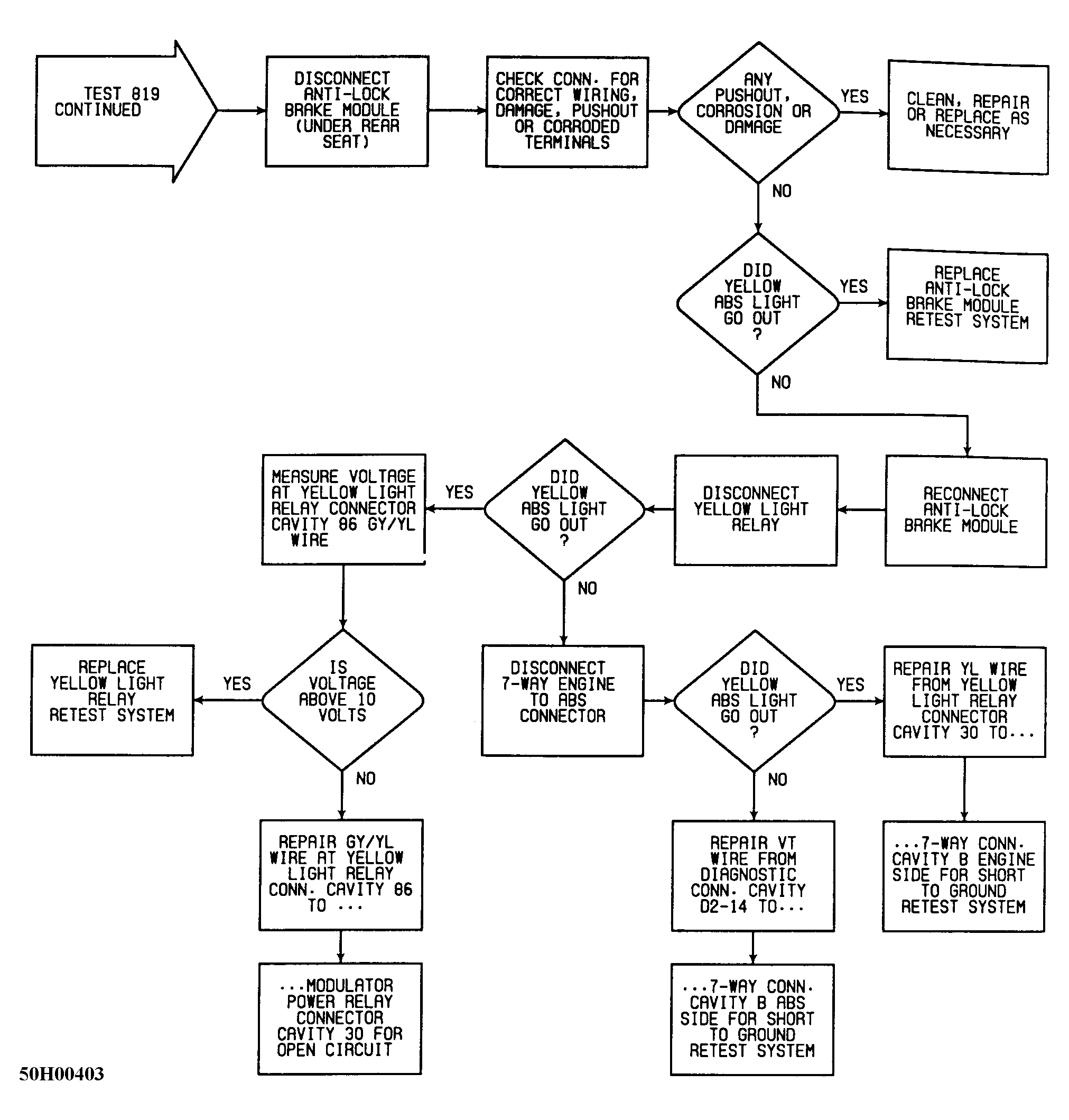

Fig 7: Fault 819: Open In Yellow Light Circuit (2 of 2)
