Component Locations

COMPONENT LOCATIONS

Component Location
Daytime Running Lamp Module Between Right Front Inner Fender And Firewall. Under ABS Pump If Equipped. See Fig 1 .
Door Lock & Unlock Relays Behind Right Kick Panel. See Fig 2 .
Fog Lamp Relay Left Side Of Engine Compartment Next To Radiator. See Fig 3 .
Fuse Panel Lower Left Side Of Instrument Panel. See Fig 4 .
Headlamp Delay Module Attached To Instrument Panel, To The Right Of Headlamp Switch.
Hood Switch On Right Inner Fender. See Fig 5
Horn Relay Relay Taped To Wiring Harness, Above Fuse Panel. See Fig 6 .
Illuminated Entry Relay Tan Relay Mounted On A Bracket With 3 Relays Behind Instrument Panel.
Power Distribution Center Engine Compartment, Top Of Right Front Inner Fender. See Fig 7 .
Radio/Clock Illumination Relay On Wiring Harness Above Fuse Panel. See Fig 6 .
Security Alarm Module Relay Rear Of Instrument Panel Center.
Security Alarm Module Driver's Side Of Heater, A/C Housing. See Fig 8 .
Fig 1: Locating Daytime Running Light Module (Canada Only)
G00190809Courtesy of CHRYSLER CORP.

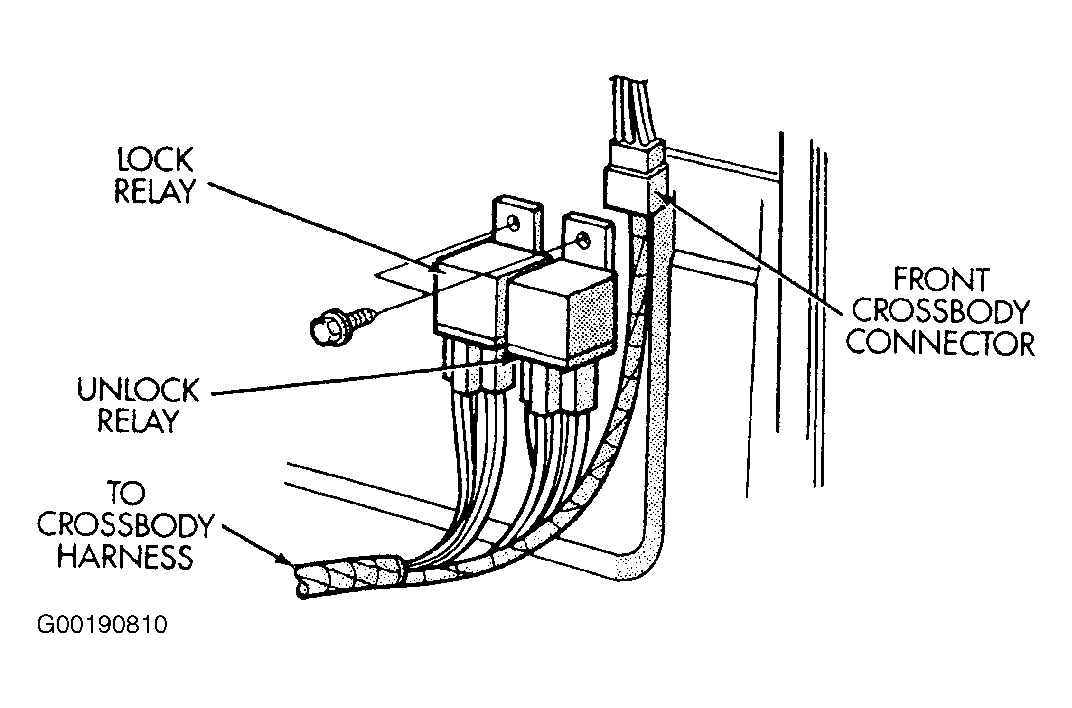

Fig 2: Locating Door Lock & Unlock Relays
G00190810Courtesy of CHRYSLER CORP.

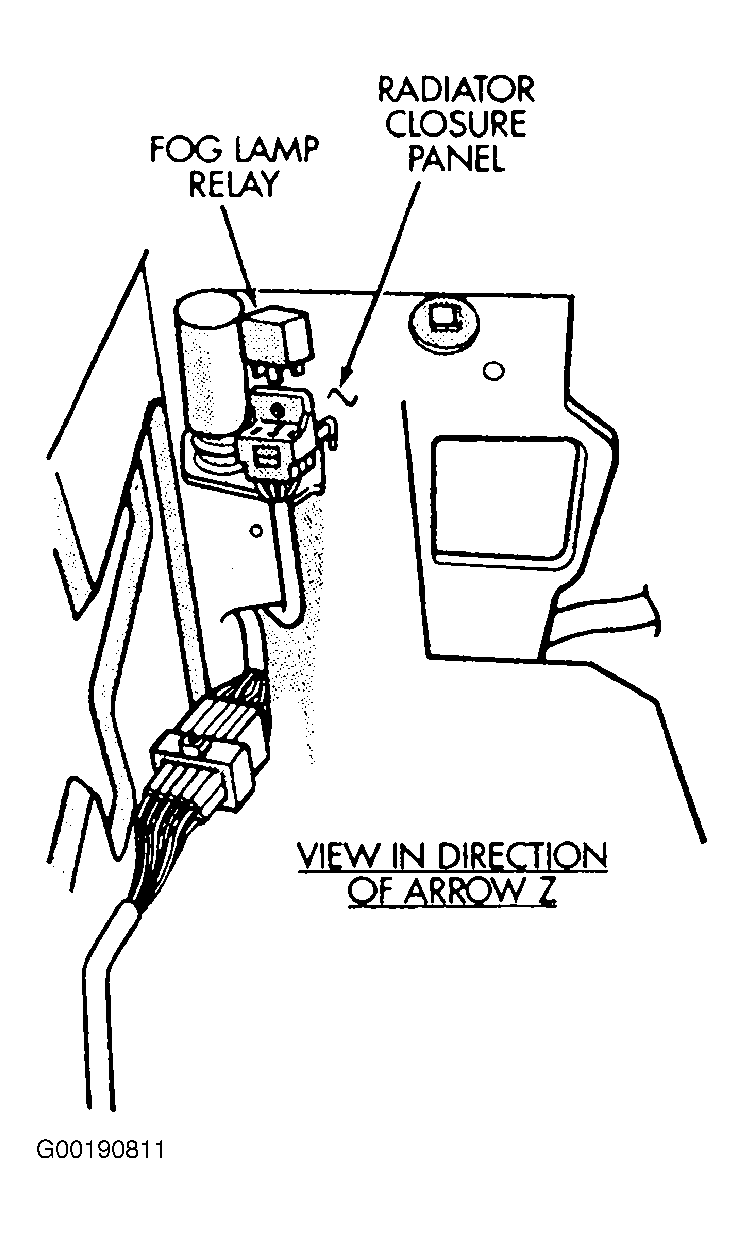

Fig 3: Locating Fog Light Relay
G00190811Courtesy of CHRYSLER CORP.

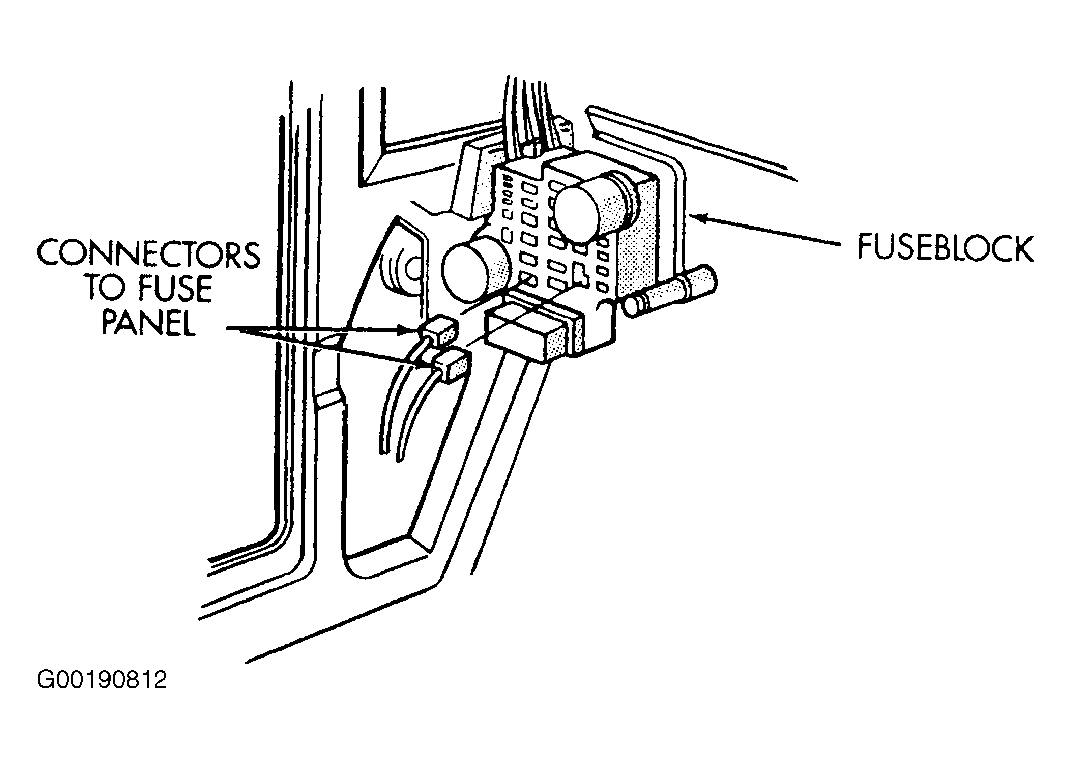

Fig 4: Locating Fuse Panel
G00190812Courtesy of CHRYSLER CORP.

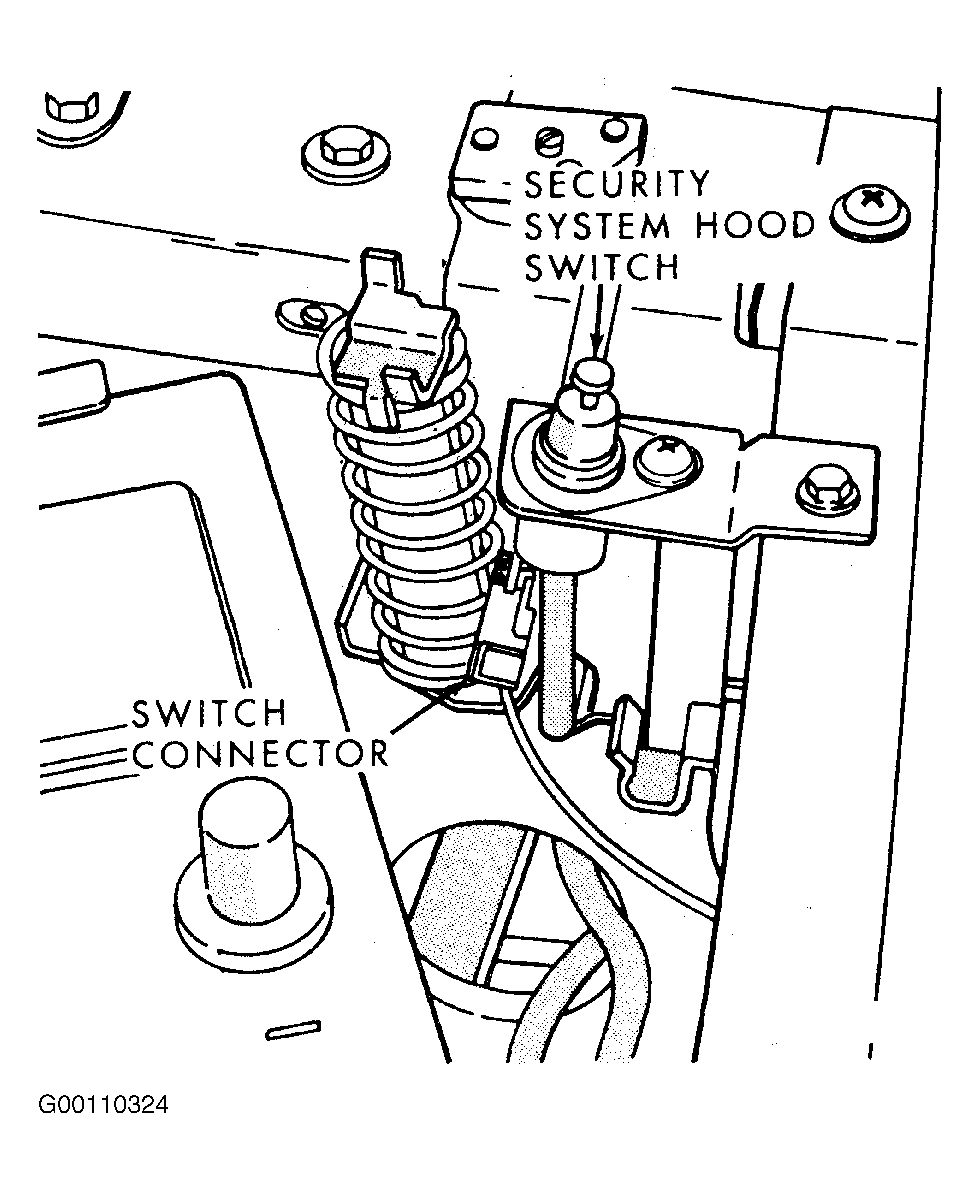

Fig 5: Locating Security System Hood Switch
G00110324Courtesy of CHRYSLER CORP.

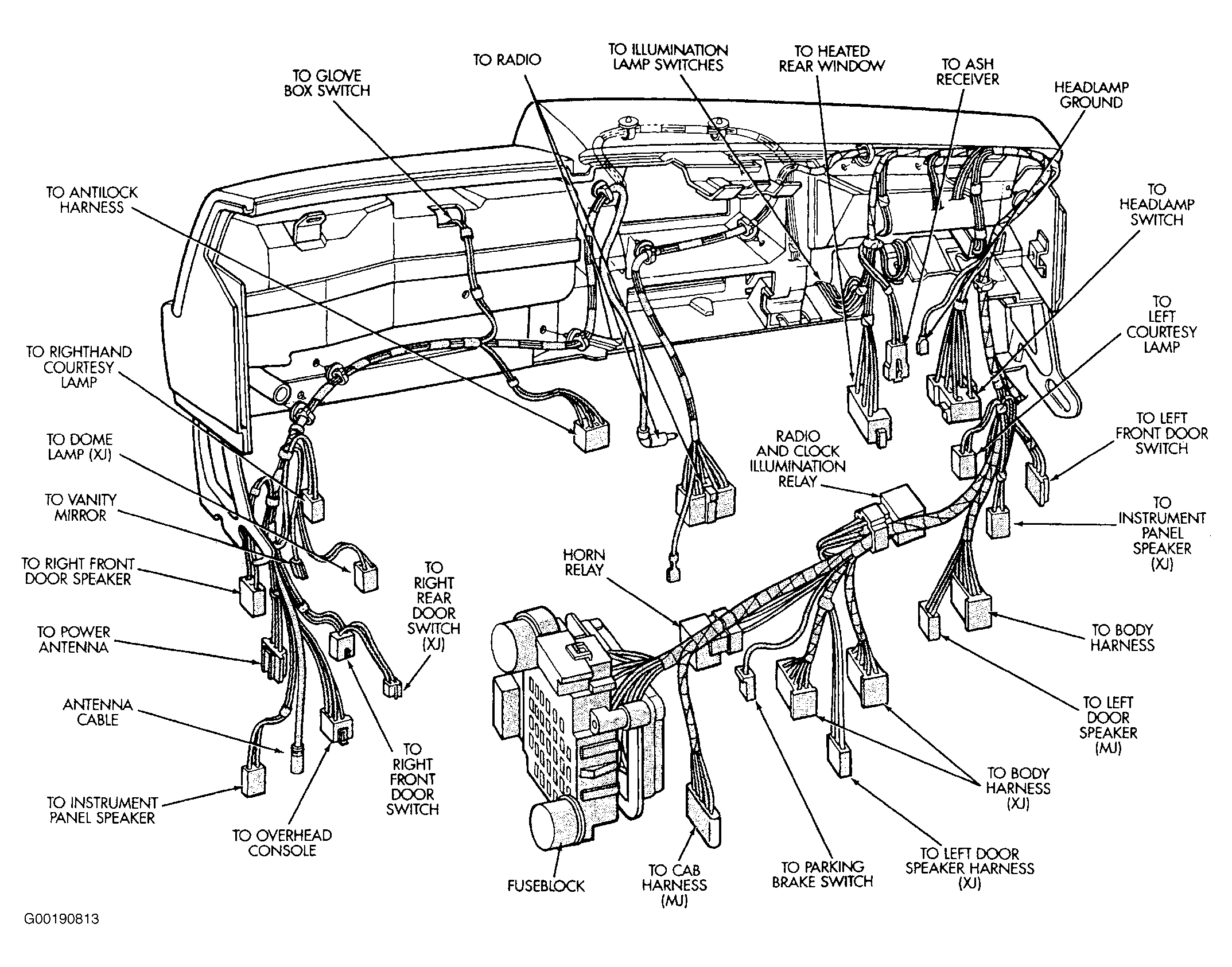

Fig 6: Locating Horn Relay & Radio/Clock Illumination Relay
G00190813Courtesy of CHRYSLER CORP.

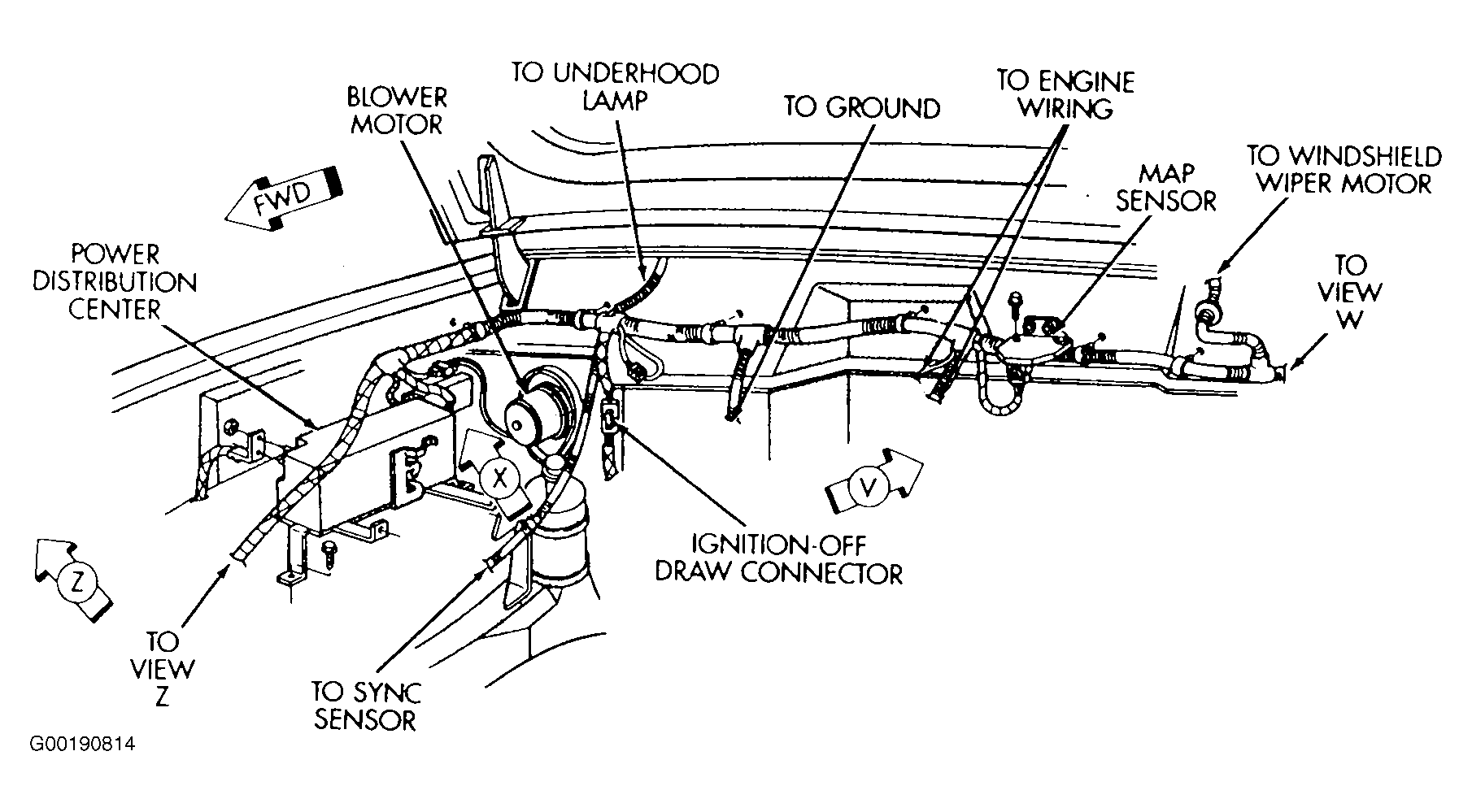

Fig 7: Locating Power Distrubition Center
G00190814Courtesy of CHRYSLER CORP.

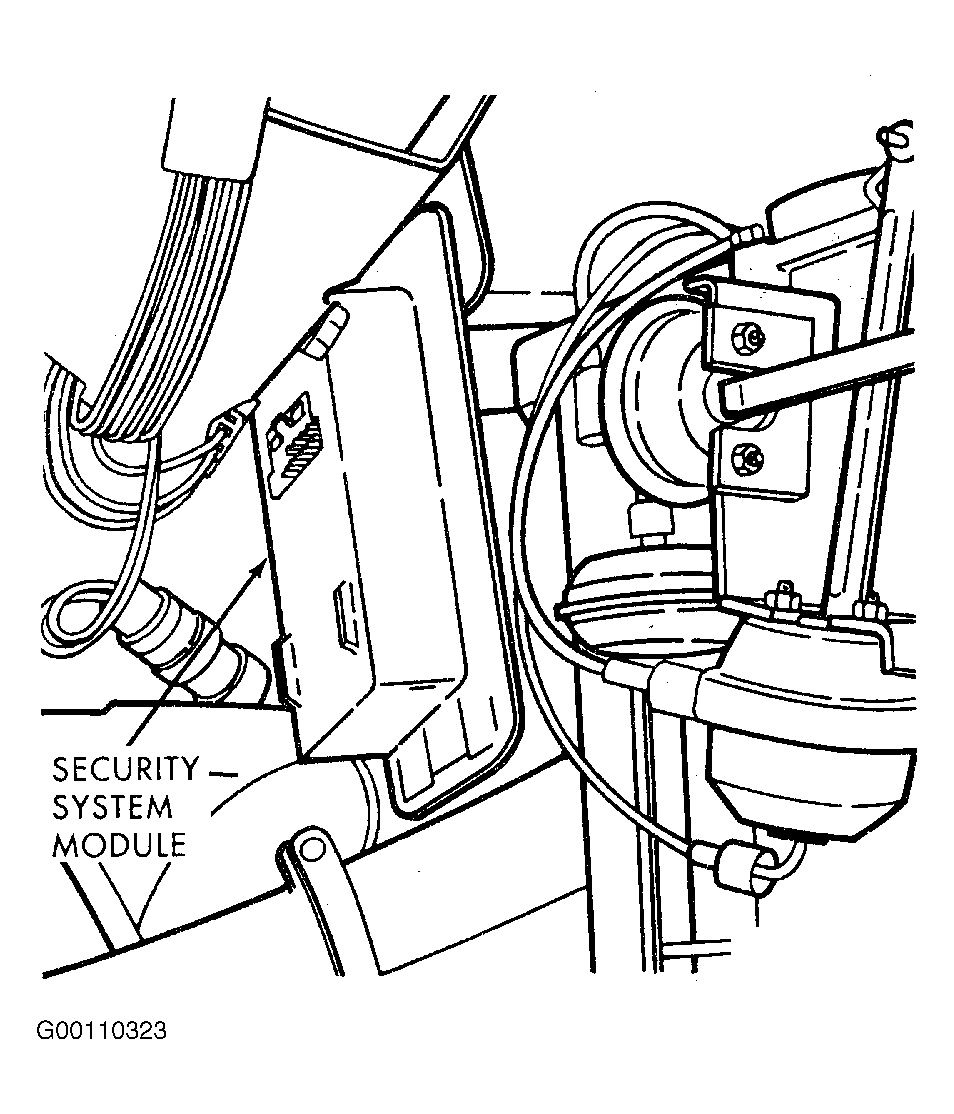

Fig 8: Identifying Security System Module
G00110323Courtesy of CHRYSLER CORP.

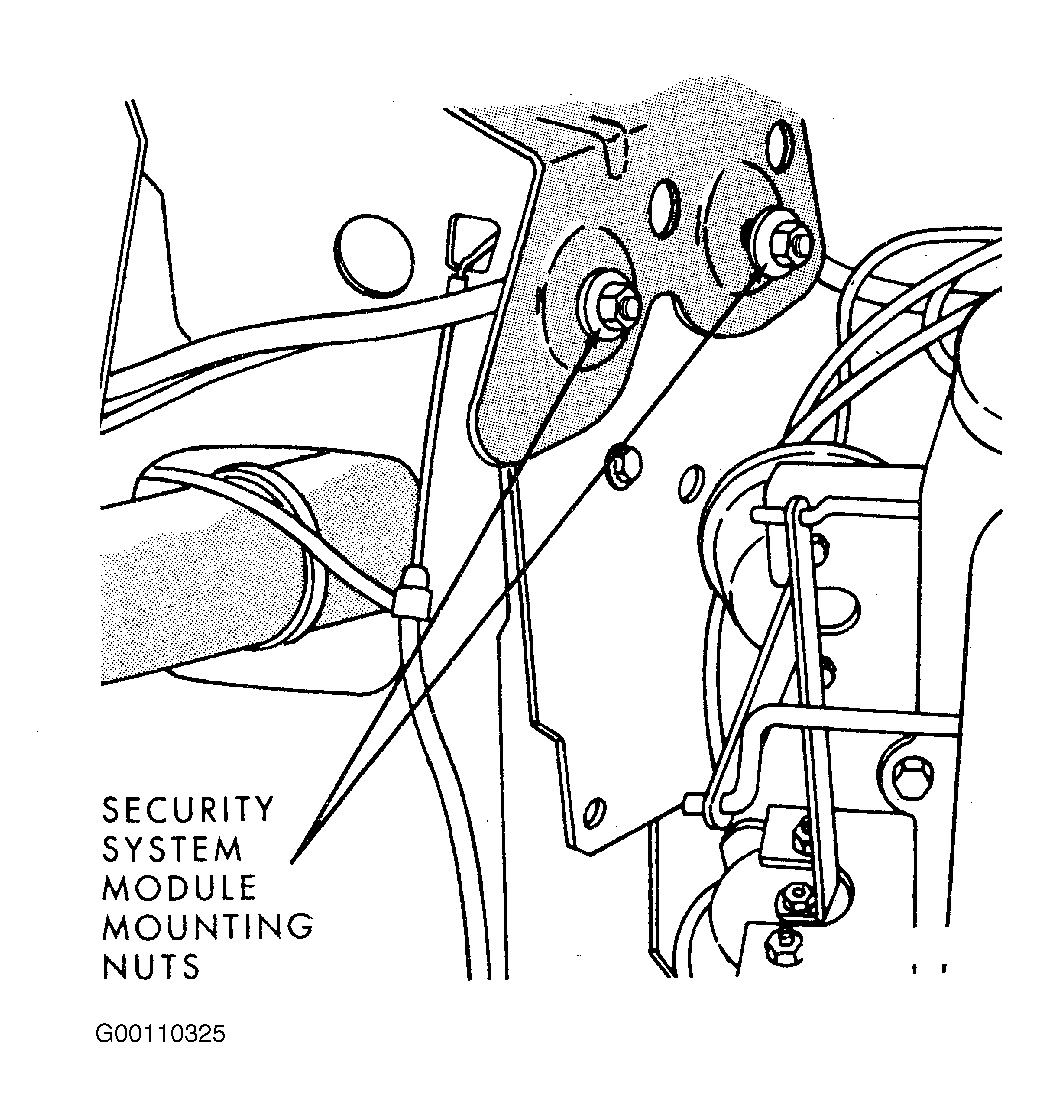

Fig 9: Identifying Security System Module Mounting Nuts
G00110325Courtesy of CHRYSLER CORP.
