Control Units

CONTROL UNITS LOCATION

Component Location

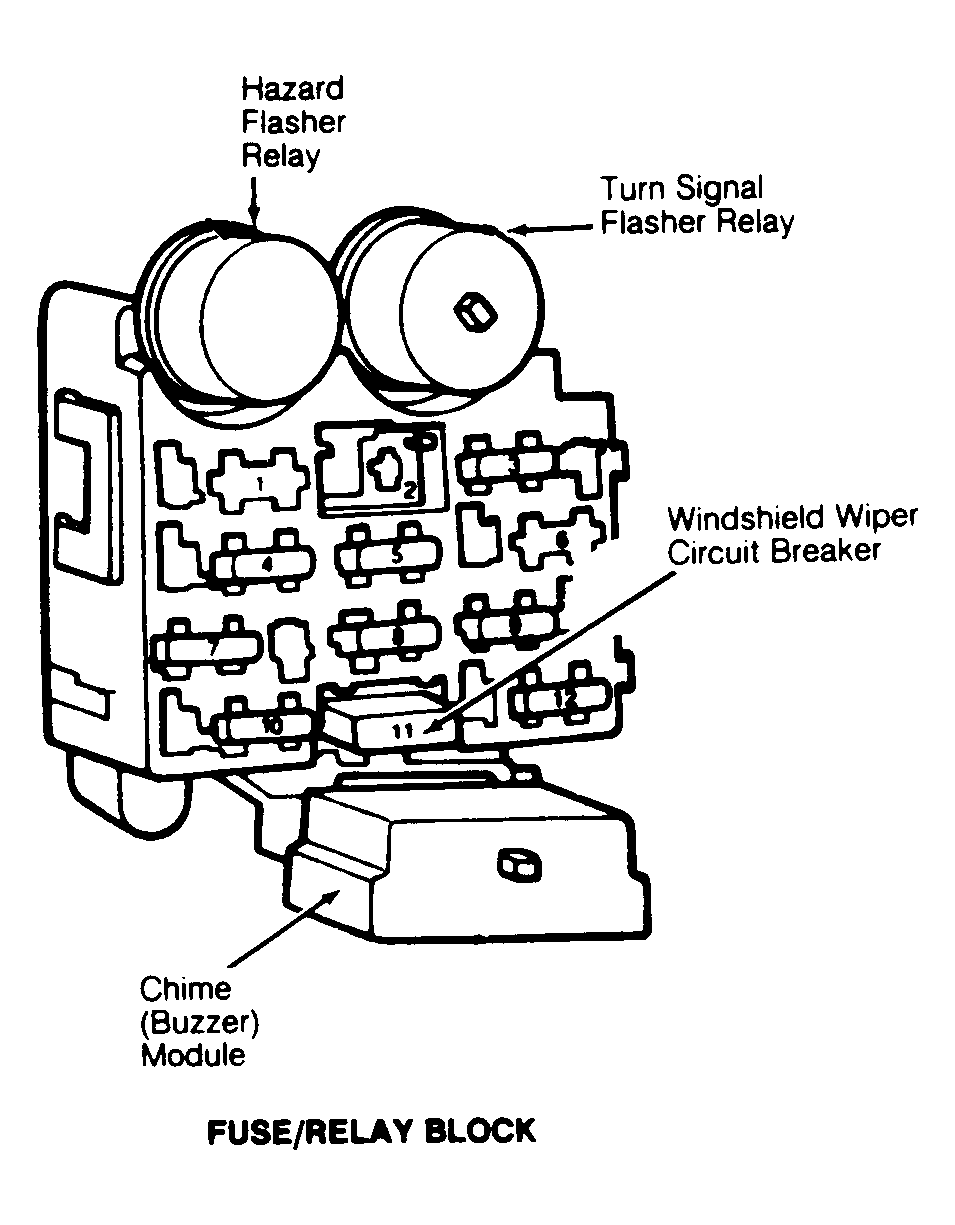

Chime (Buzzer) Module On fuse/relay block. See Figure.
Intermittent Wiper Module On bracket, at bottom of steering column.
Maintenance Reminder Module Integral in SBEC.

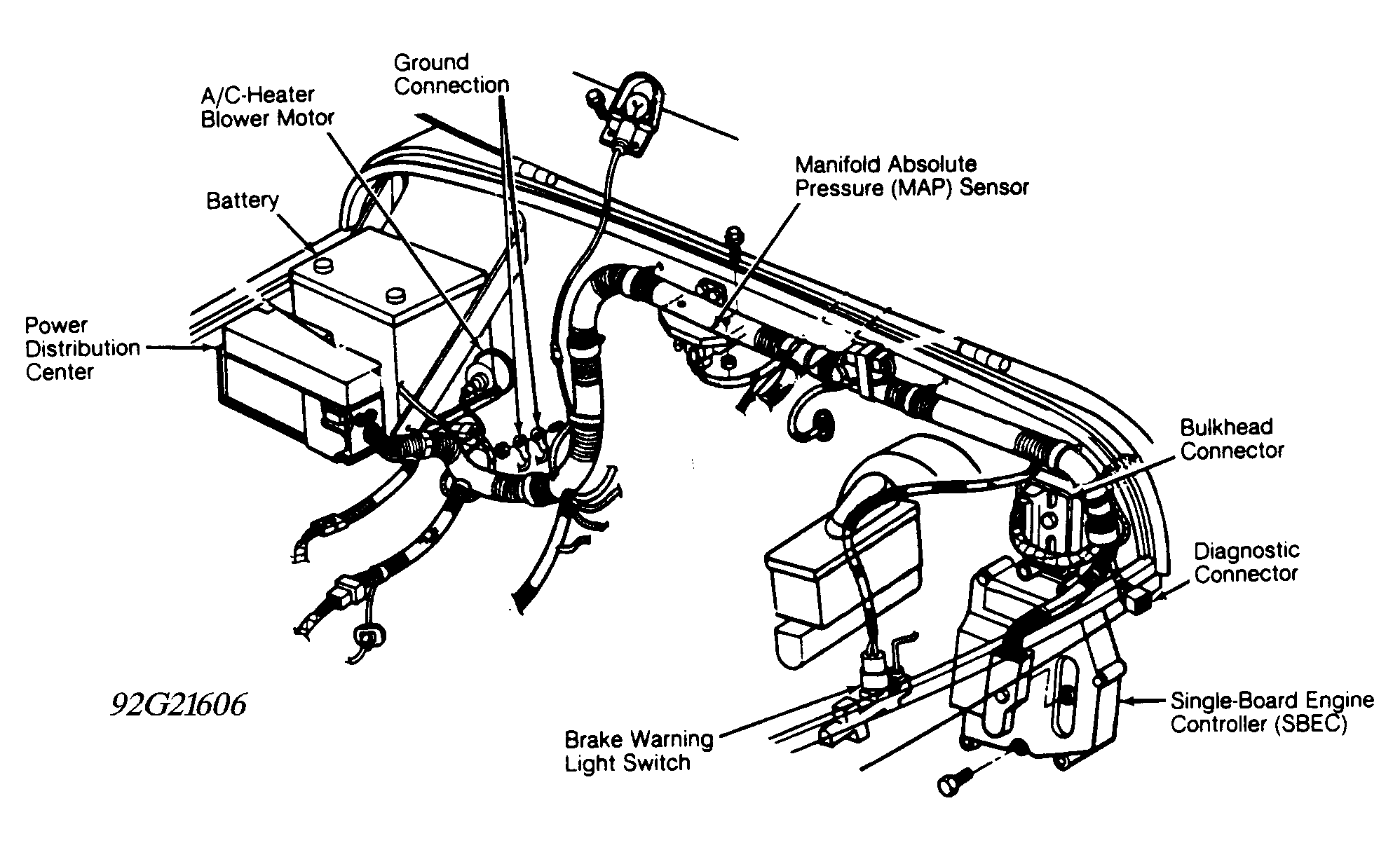

Single-Board Engine Controller (SBEC) On firewall. See Figure.
