Fuse Box

NOTE: Fuse box is mounted to the left dash panel, outboard of the steering column. It can be accessed from under the instrument panel without the removal of any components.

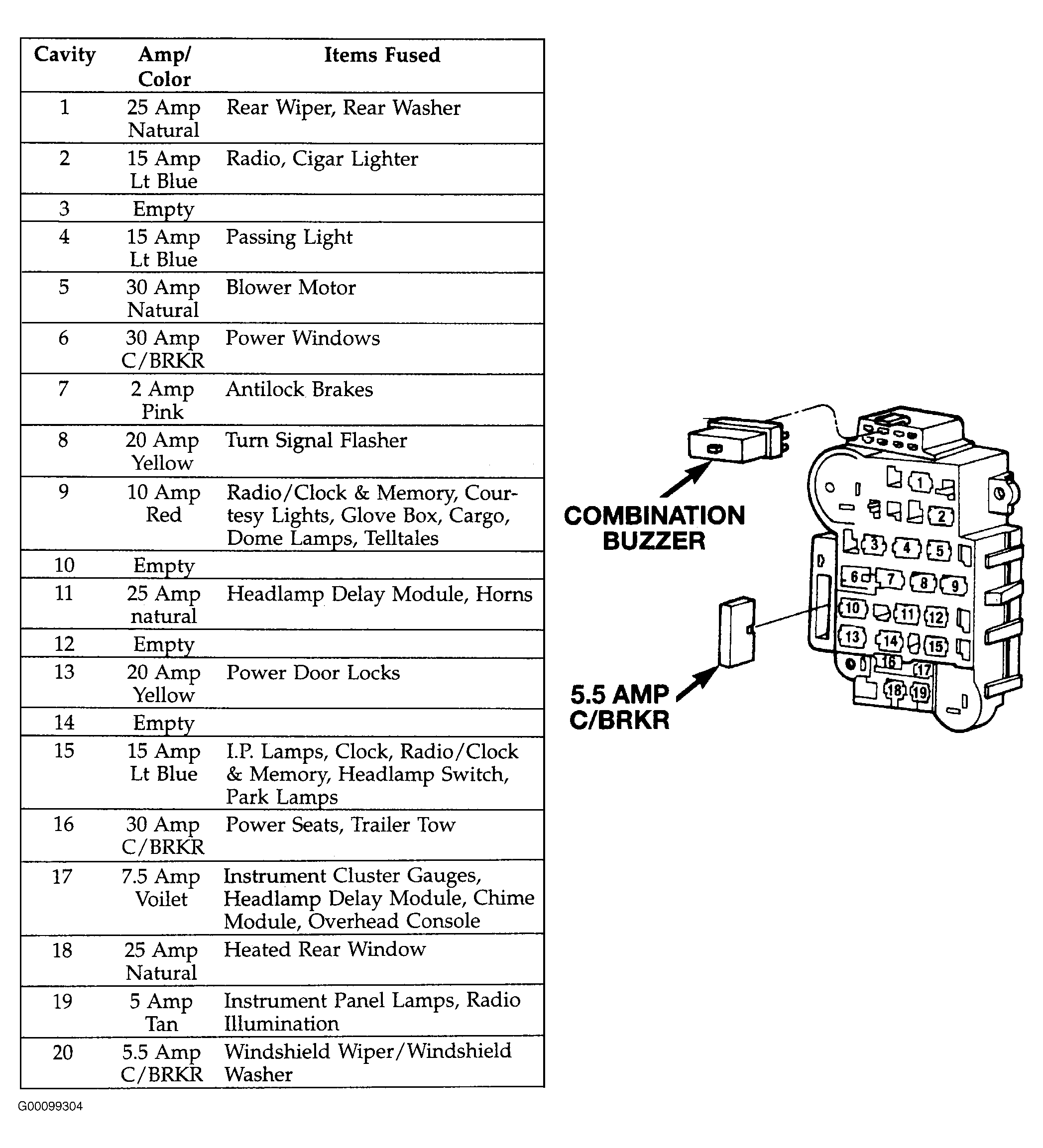

Fig 1: Identifying Fuse Box Components
G00099304Courtesy of CHRYSLER CORP.
