Crankshaft Main Bearing

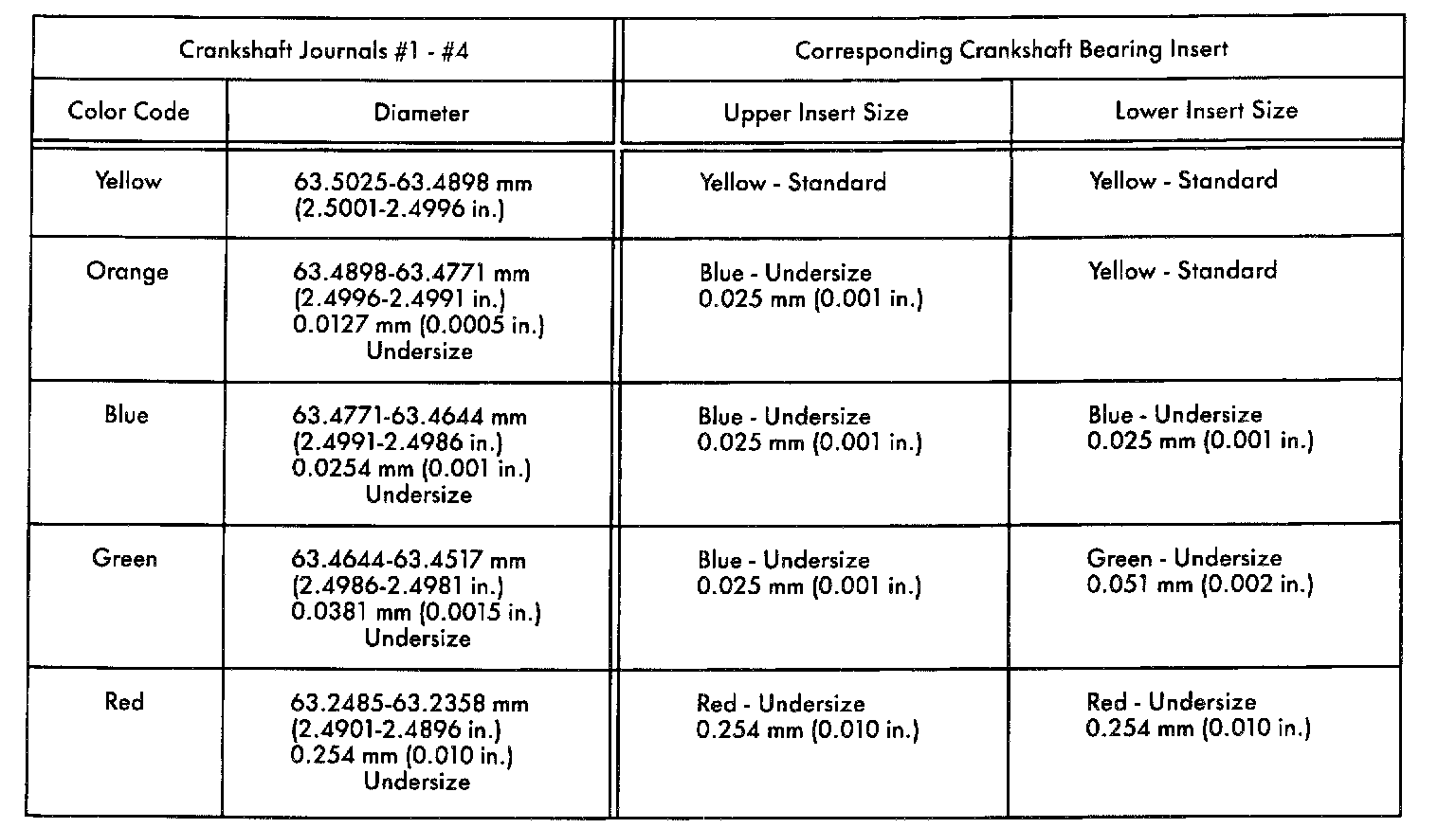

Main Bearing Fitting Chart - Part 1 Of 2:

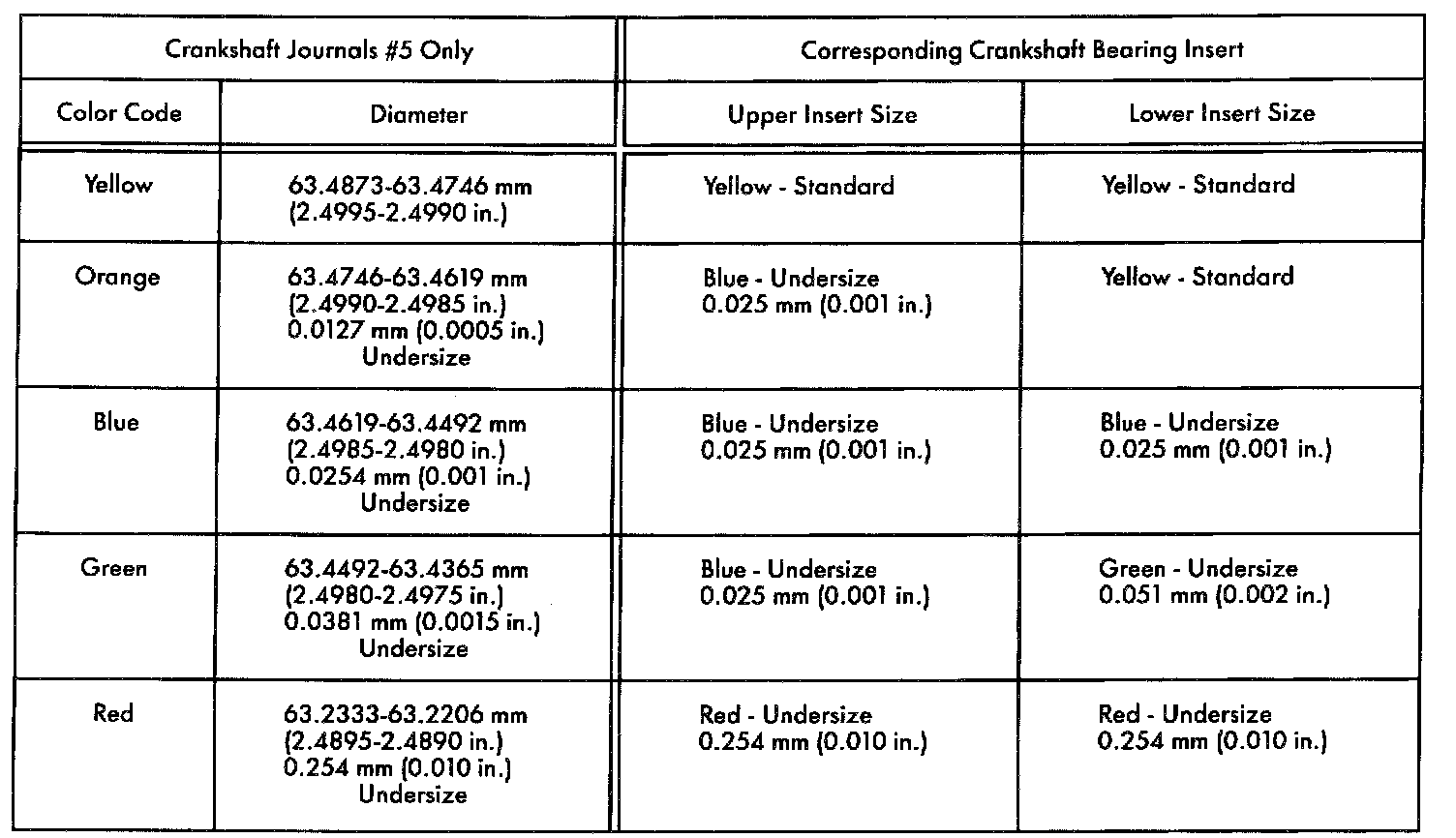

Main Bearing Fitting Chart - Part 2 Of 2:
