Starter Relay: Service and Repair

REMOVAL
1. Disconnect and isolate the battery negative cable.

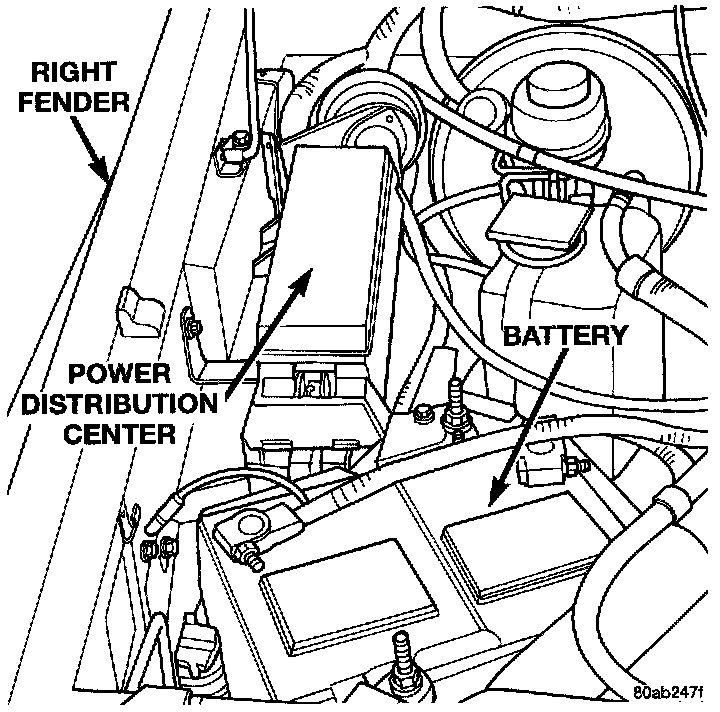

Power Distribution Center:

2. Remove the cover from the Power Distribution Center (PDC).
3. Refer to the fuse and relay layout label affixed to the underside of the PDC cover for starter relay identification and location.
4. Remove the starter relay from the PDC.

INSTALLATION
1. Refer to the fuse and relay layout label affixed to the underside of the PDC cover for the proper starter relay location.
2. Position the starter relay in the proper receptacle in the PDC.
3. Align the starter relay terminals with the terminal cavities in the PDC receptacle.
4. Push down firmly on the starter relay until the terminals are fully seated in the terminal cavities in the PDC receptacle.
5. Install the cover onto the PDC.
6. Connect the battery negative cable.
