Electronic Brake Control Module
Controller Anti-lock Brake C1 - Gray 12 Way:

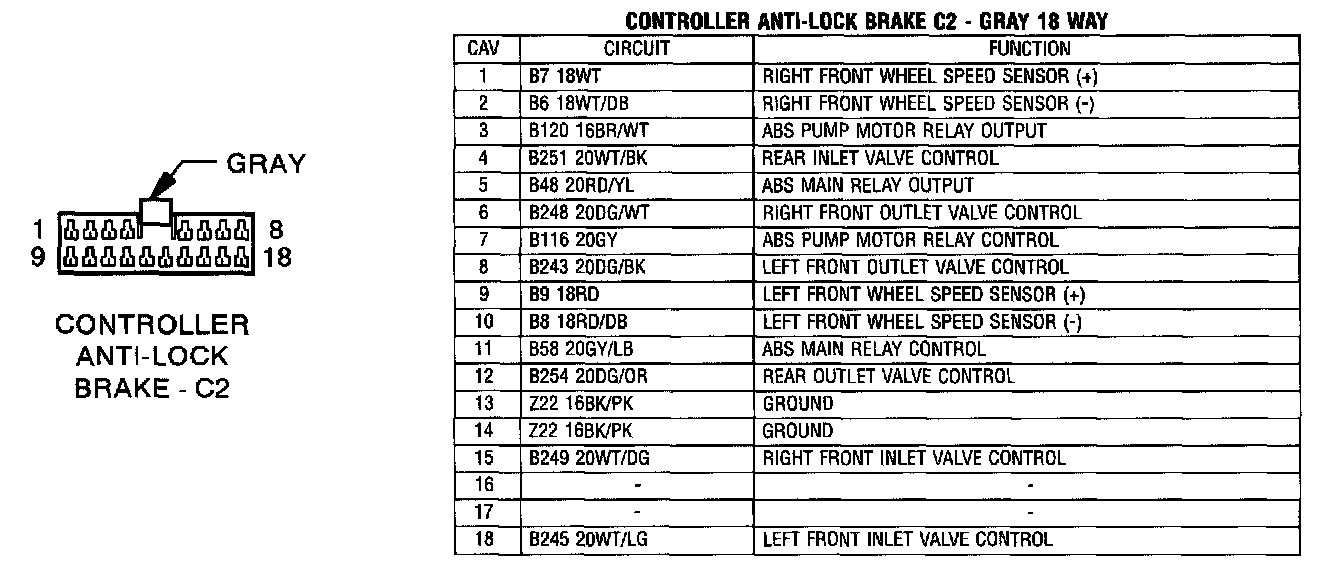

Controller Anti-lock Brake C2 Gray 18 Way:
