Crankshaft Position Sensor: Locations

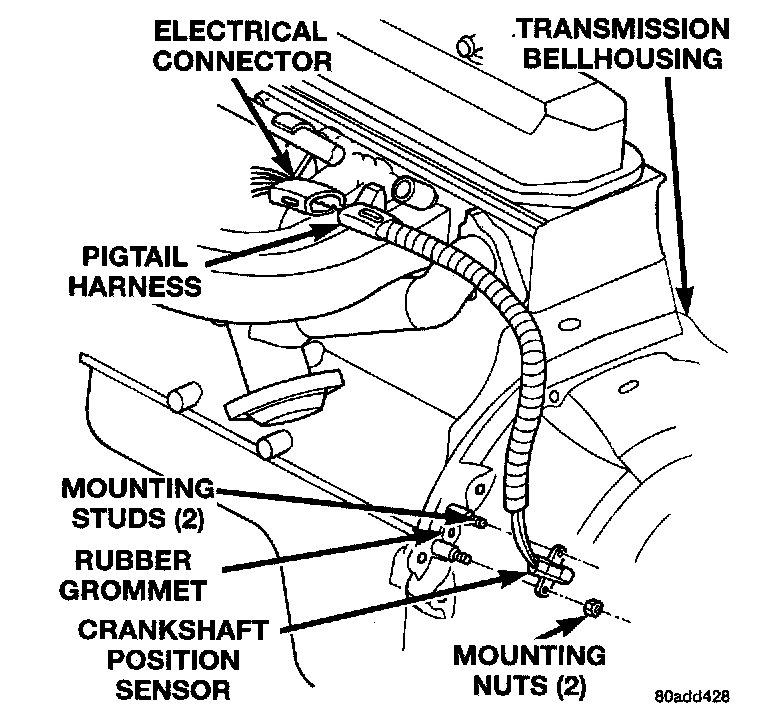

Crankshaft Position Sensor - Auto Trans:

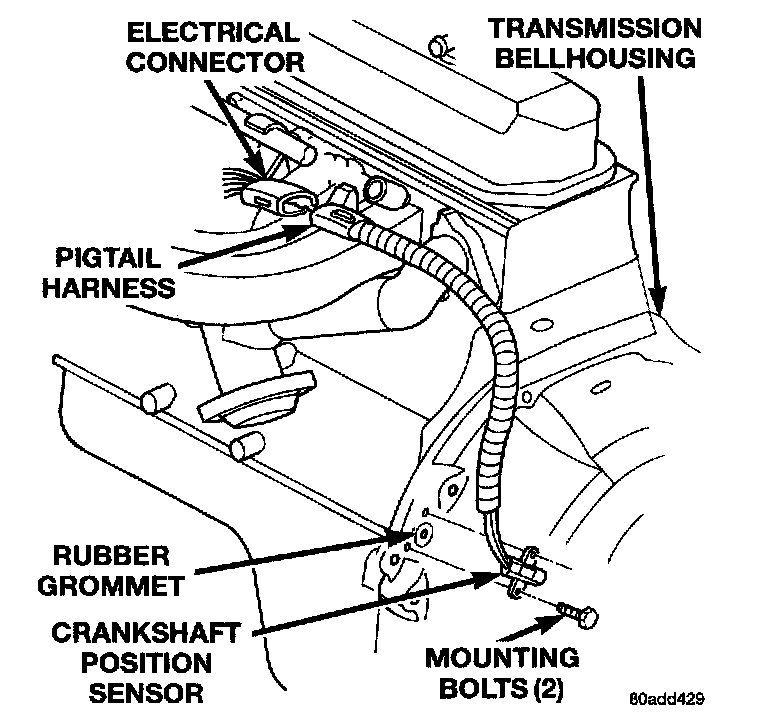

Crankshaft Position Sensor - Manual Trans:

The crankshaft position sensor is mounted to the transmission bellhousing at the left/rear side of the engine block.
