Manifold Pressure/Vacuum Sensor: Locations

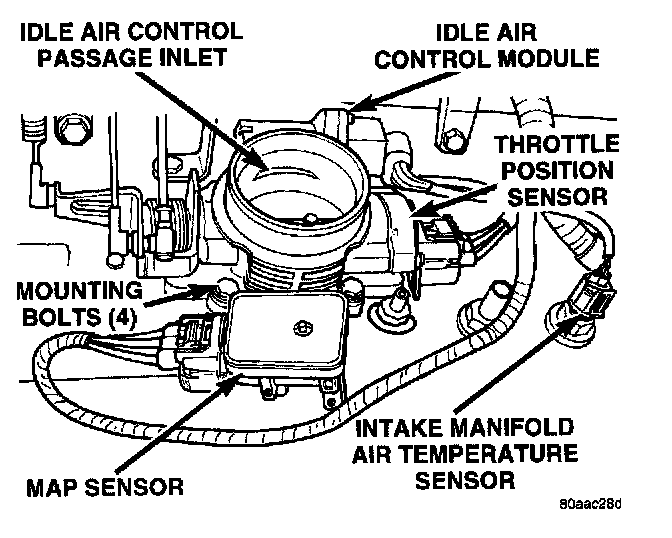

MAP Sensor Mounting:




Idle Air Control Passage Inlet, Idle Air Control Module, Throttle Position Sensor, Intake Manifold Air Temperature Sensor, MAP Sensor, Mounting Bolts (4):




The MAP sensor is mounted to the side of the throttle body.
