Front Fender Liner: Service and Repair

RIGHT FRONT WHEELHOUSE SPLASH SHIELD

REMOVAL

1. Hoist vehicle.
2. Remove tire.
3. Remove the push-in fasteners attaching the wheelhouse liner to the inner fender.

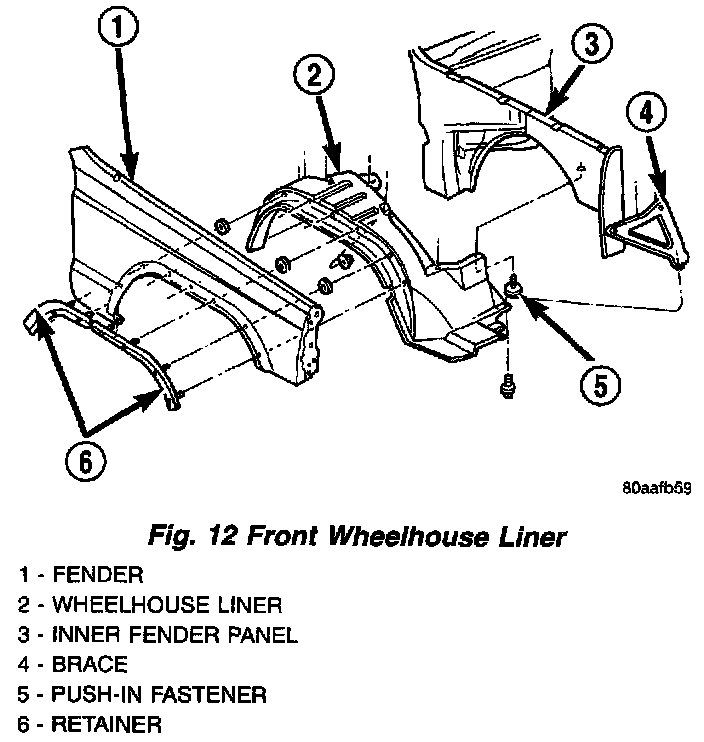

Fig. 12:

4. Separate the wheelhouse liner from the fender (Fig. 12).

INSTALLATION

1. Position the wheelhouse liner in the fender.
2. Install new push-in fasteners attaching the wheelhouse liner to the inner fender.
3. Install tire.
4. Lower vehicle.
