Checking Speed Control Resume/Accel Switch

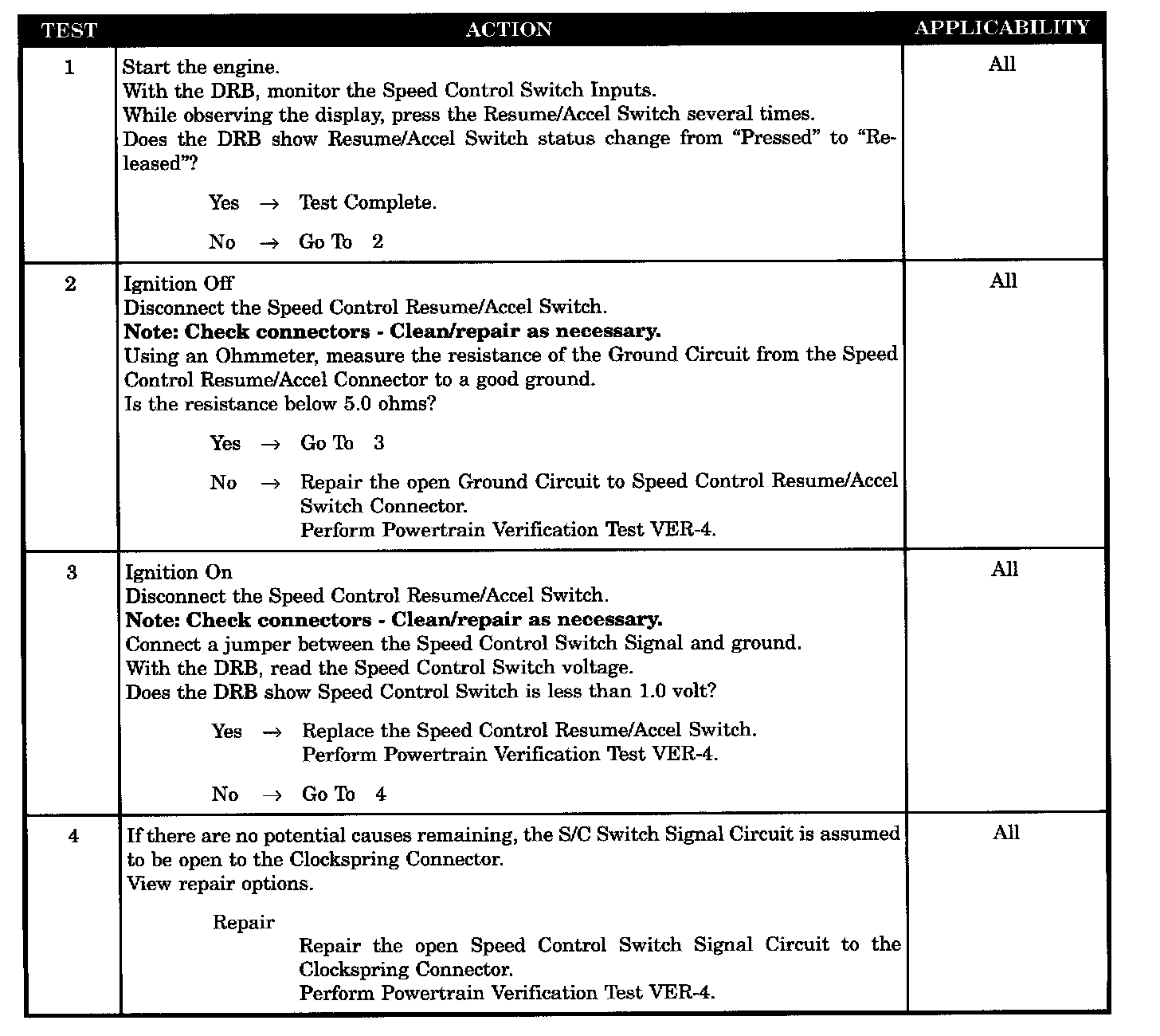

Tests 1 - 4:





SYMPTOM
CHECKING SPEED CONTROL RESUME/ACCEL SWITCH

POSSIBLE CAUSES
- speed control ground circuit open
- Speed control RESUME/ACCEL switch defective
- Speed control switch signal switch open
