Checking Radiator Fan Operation

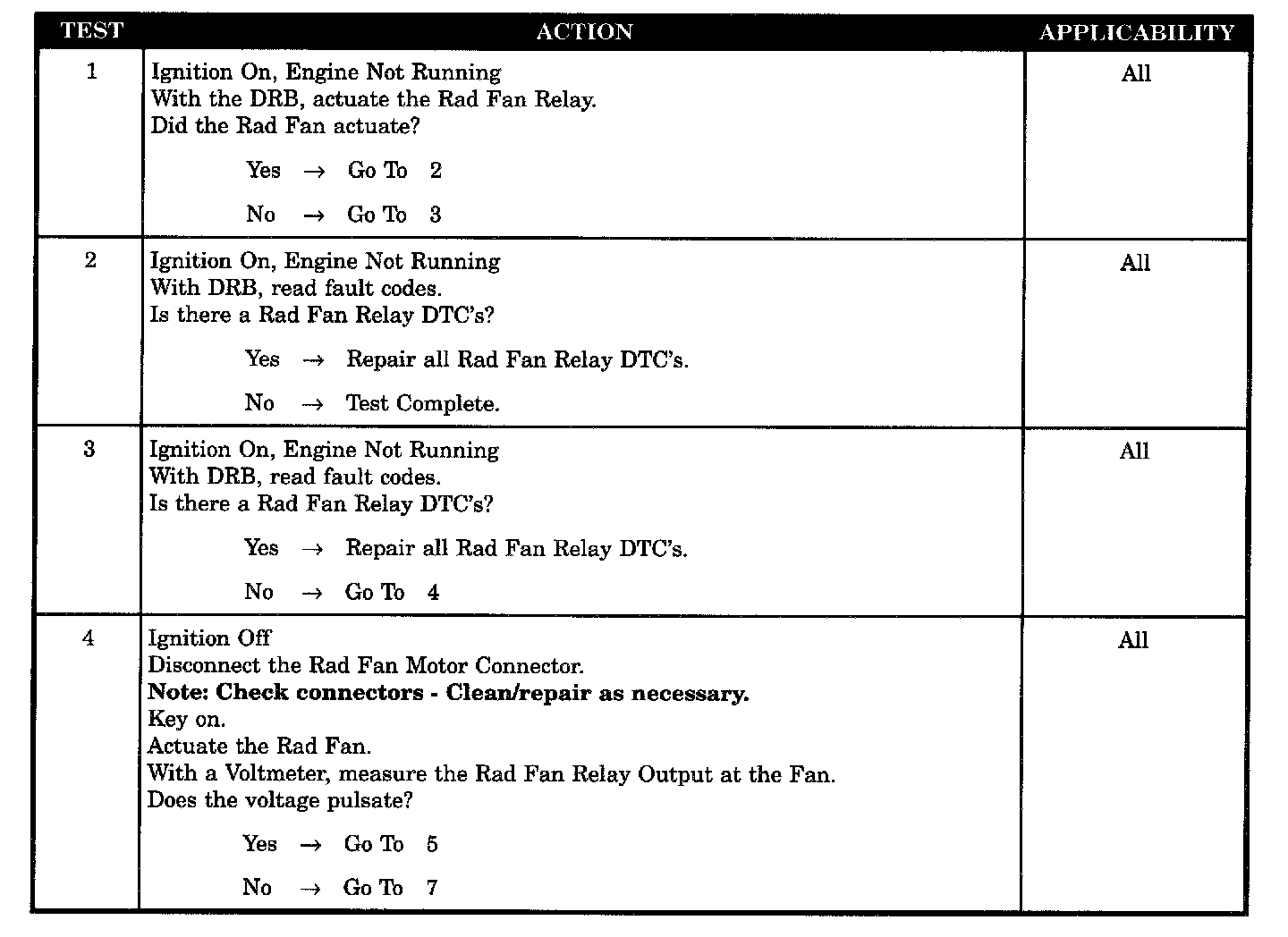

Tests 1 - 4:

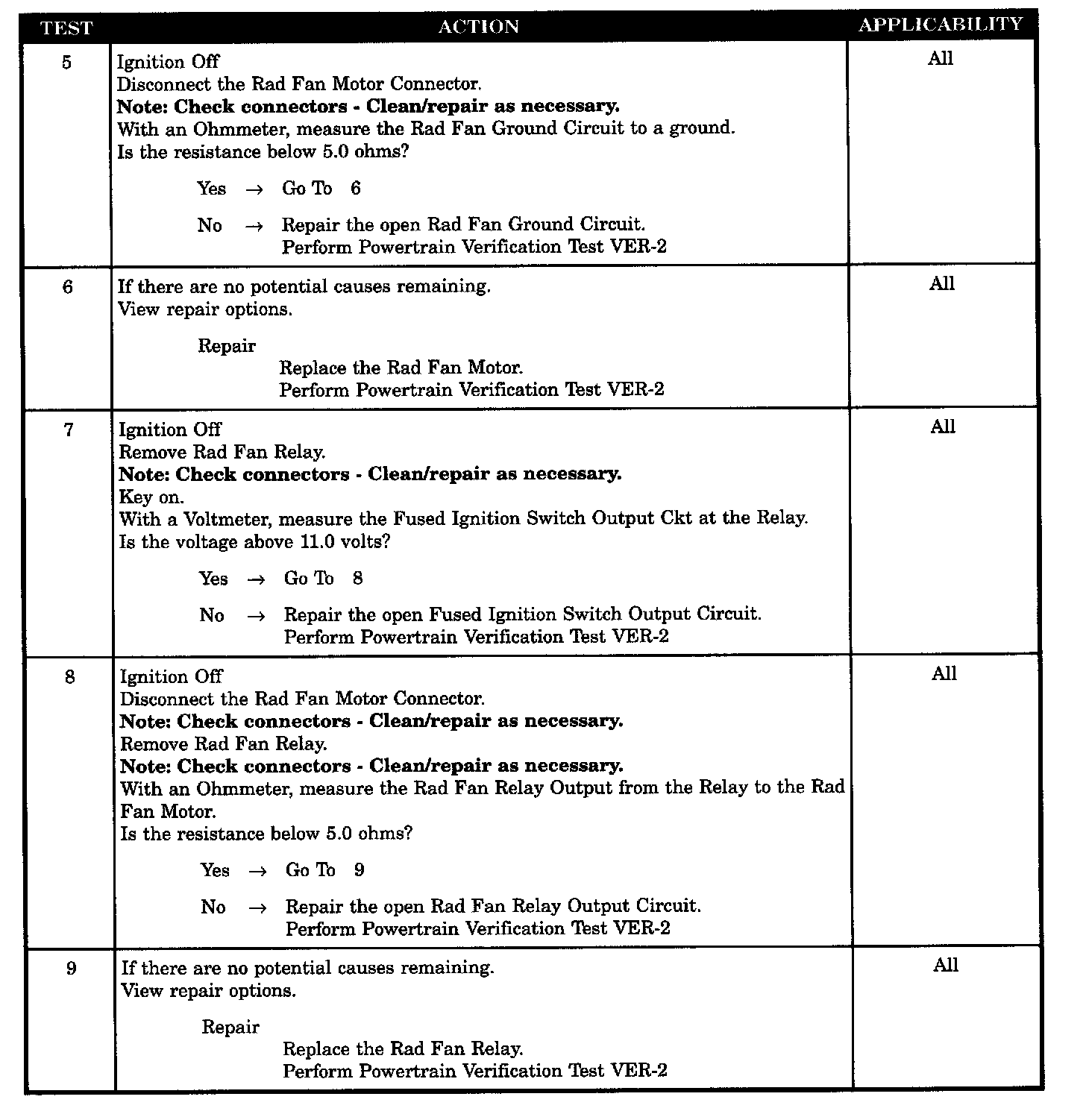

Tests 5 - 9:





SYMPTOM
CHECKING THE RADIATOR FAN OPERATION

POSSIBLE CAUSES
- Fused ignition switch out circuit open
- Radiator fan ground circuit open
- Radiator fan relay output circuit open
- Radiator fan motor
- Radiator fan relay
- Radiator fan relay fault code present
