Camshaft Position Sensor: Locations

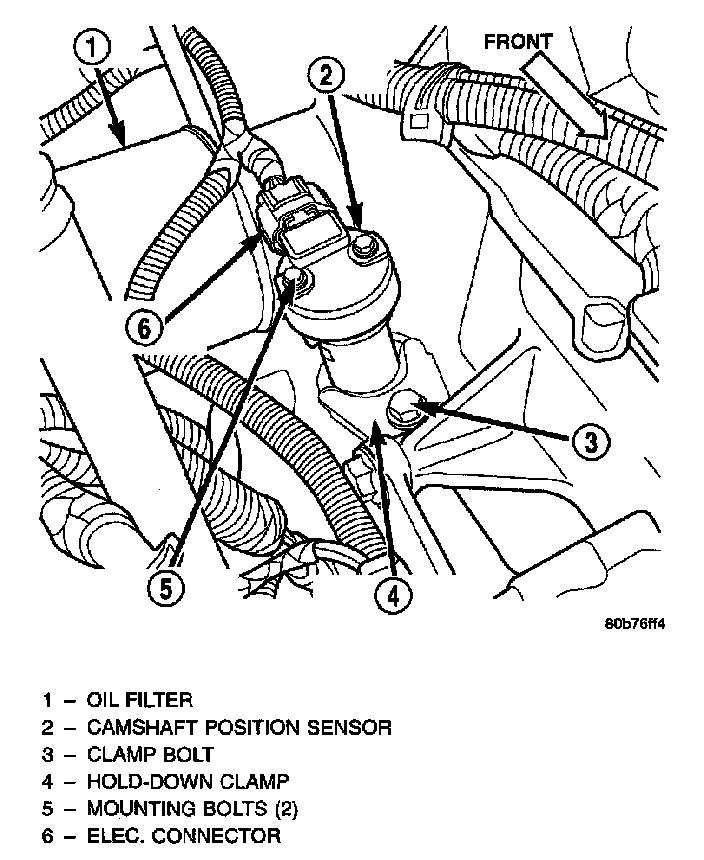

CMP Location:

The Camshaft Position Sensor (CMP) on the 6-cylinder engine is bolted to the top of the oil pump drive shaft assembly. The sensor and drive shaft assembly is located on the right side of the engine near the oil filter.
