Fuel Level Sensor: Installation

  1. Install fuel level sensor on channels on fuel pump module. Slide fuel level sensor onto fuel pump module until fuel level sensor snaps into place. Ensure locking tab is fully seated.
  2. Connect electrical connector at sending unit. Reinstall fuel pump module and fuel tank.
Fig 1: Locating Fuel Level Sensor
G98D00607Courtesy of CHRYSLER CORP.

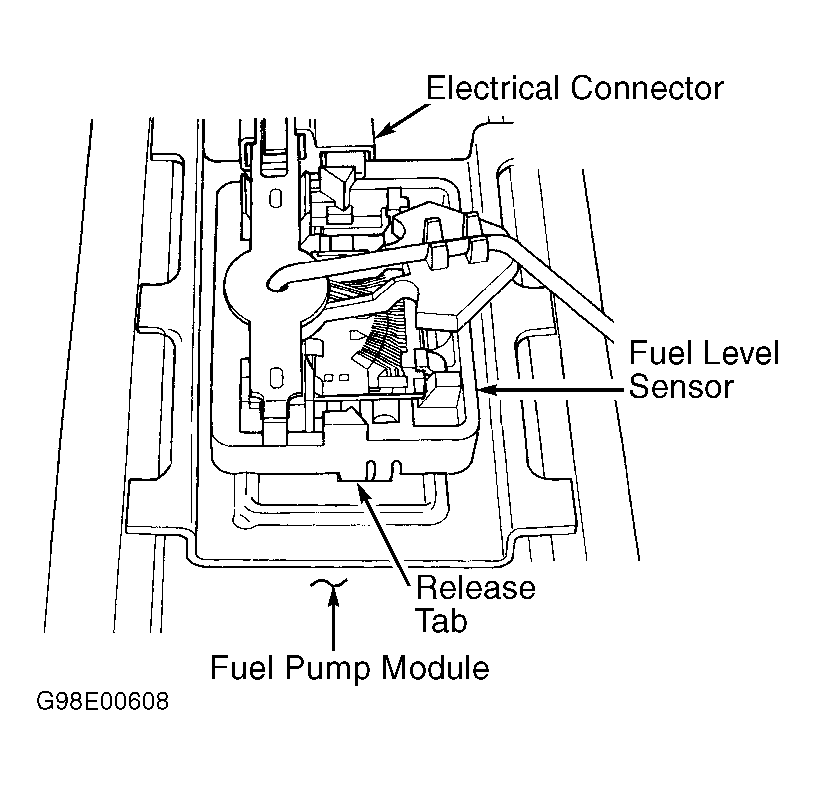

Fig 2: Locating Fuel Level Sensor Release Tab
G98E00608Courtesy of CHRYSLER CORP.
