Side View Mirror

SIDE VIEW MIRROR

REMOVAL

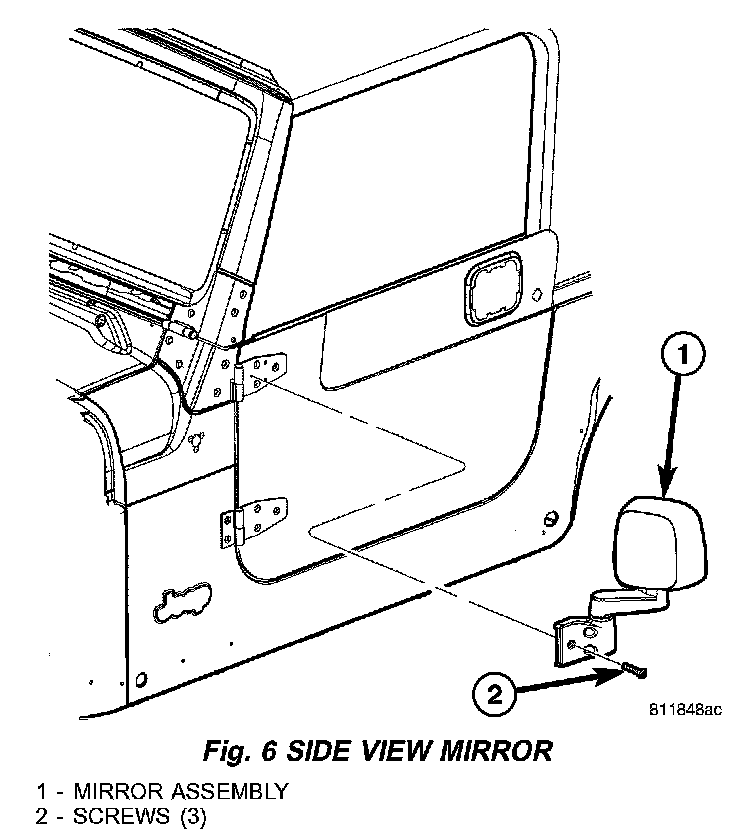

Fig. 6:

1. Remove the screws attaching the mirror to the door hinge (Fig. 6).
2. Remove the mirror from the door hinge.
3. Disconnect the electrical connector, if equipped.

INSTALLATION

1. Clean the door hinge-mirror base contact surface.
2. Position the mirror base at the door hinge.
3. Install the three screws attaching the mirror base to the door hinge.
