Checking Speed Control Resume/Accel Switch

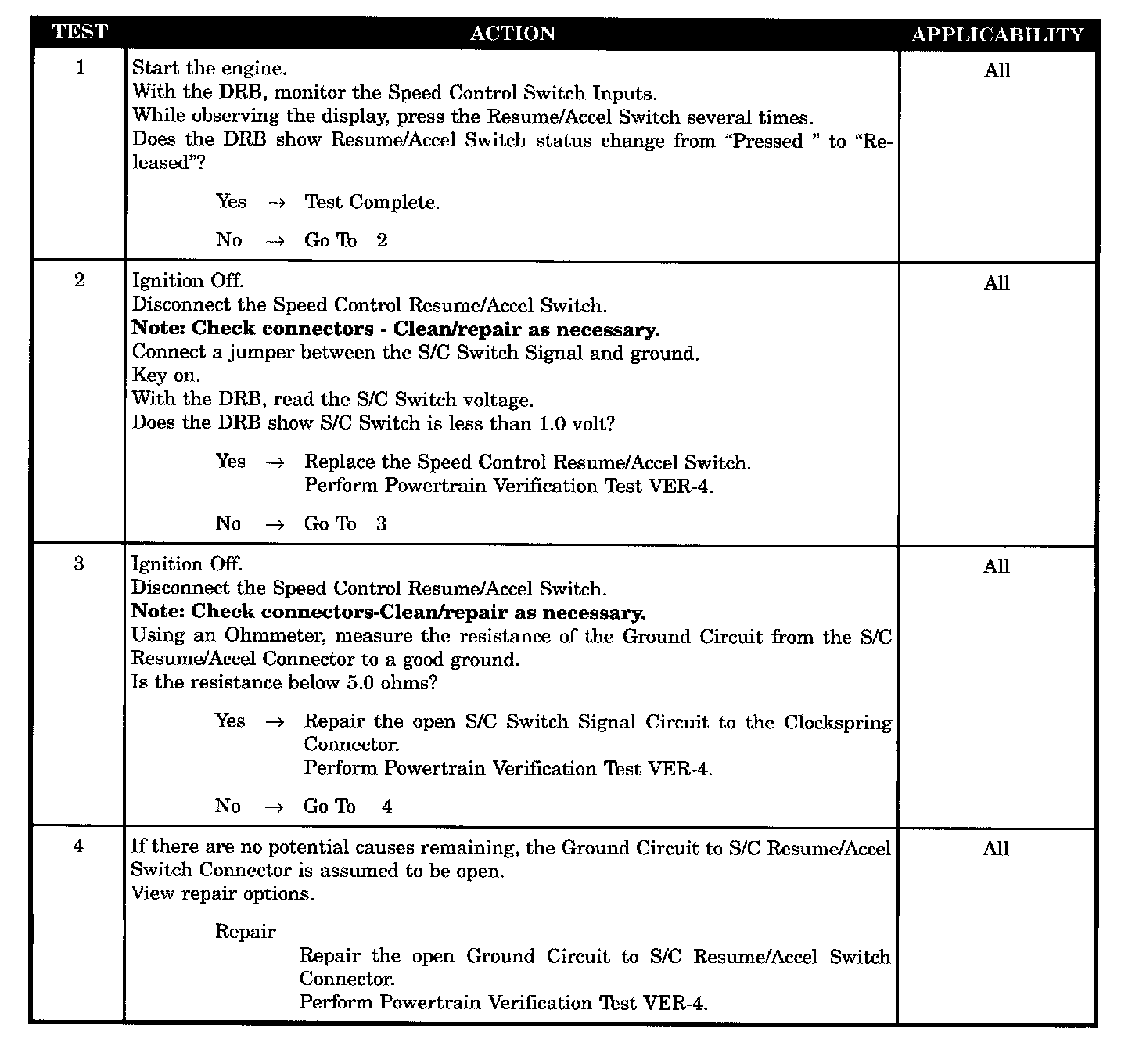

Tests 1 - 4:





SYMPTOM
CHECKING SPEED CONTROL RESUME/ACCEL SWITCH

POSSIBLE CAUSES
- Ground circuit open
- RESUME/ACCEL switch
- S/C switch signal circuit open
