Checking Oxygen Sensor Switching

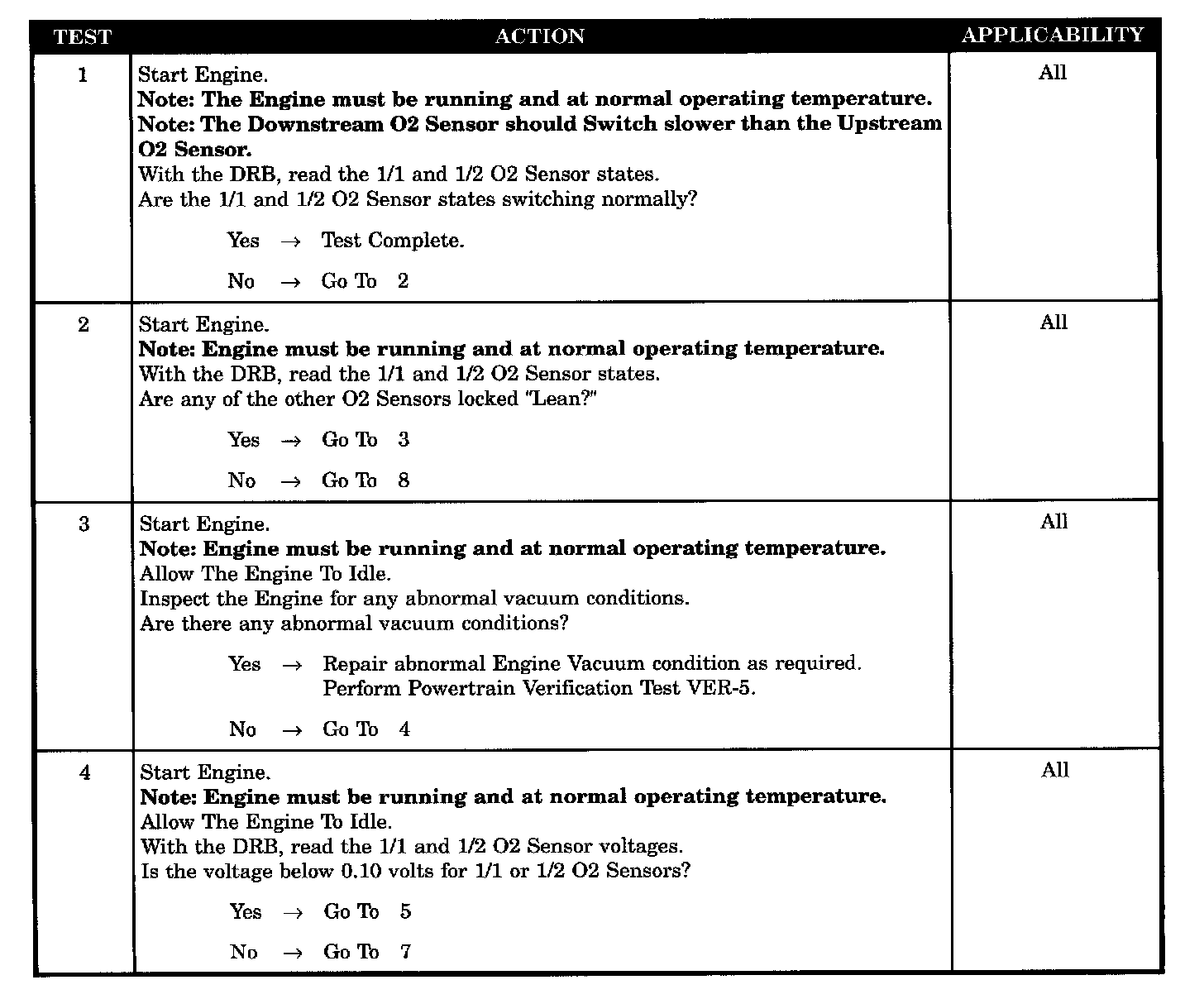

Tests 1 - 4:

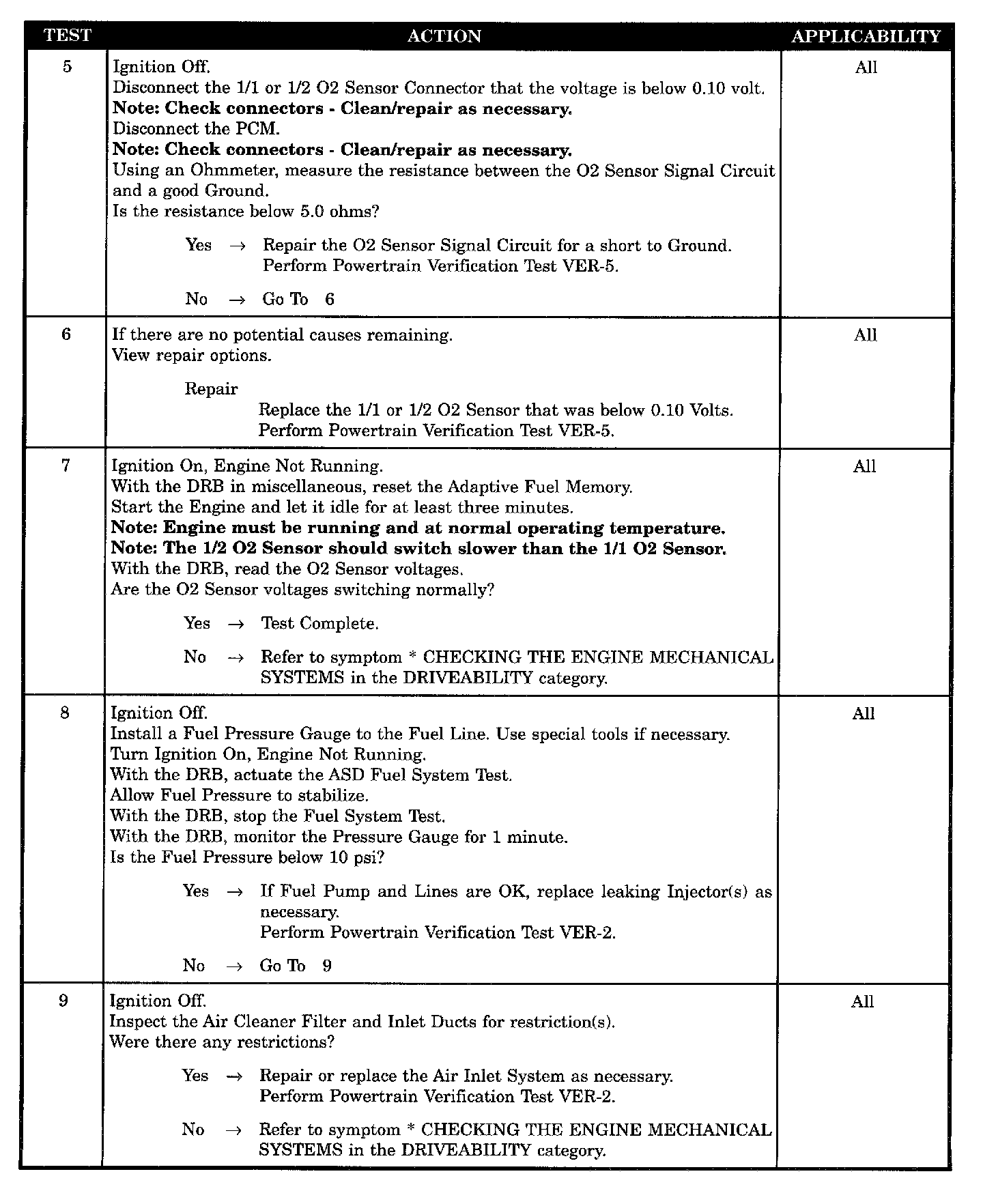

Tests 5 - 9:

SYMPTOM
CHECKING FOR OXYGEN SENSOR SWITCHING

POSSIBLE CAUSES
- O2 sensor signal circuit shorted to ground
- Injector leaking
- O2 sensor not switching
- Air inlet system
- Engine vacuum abnormal
