Engine Compartment/Exhaust System

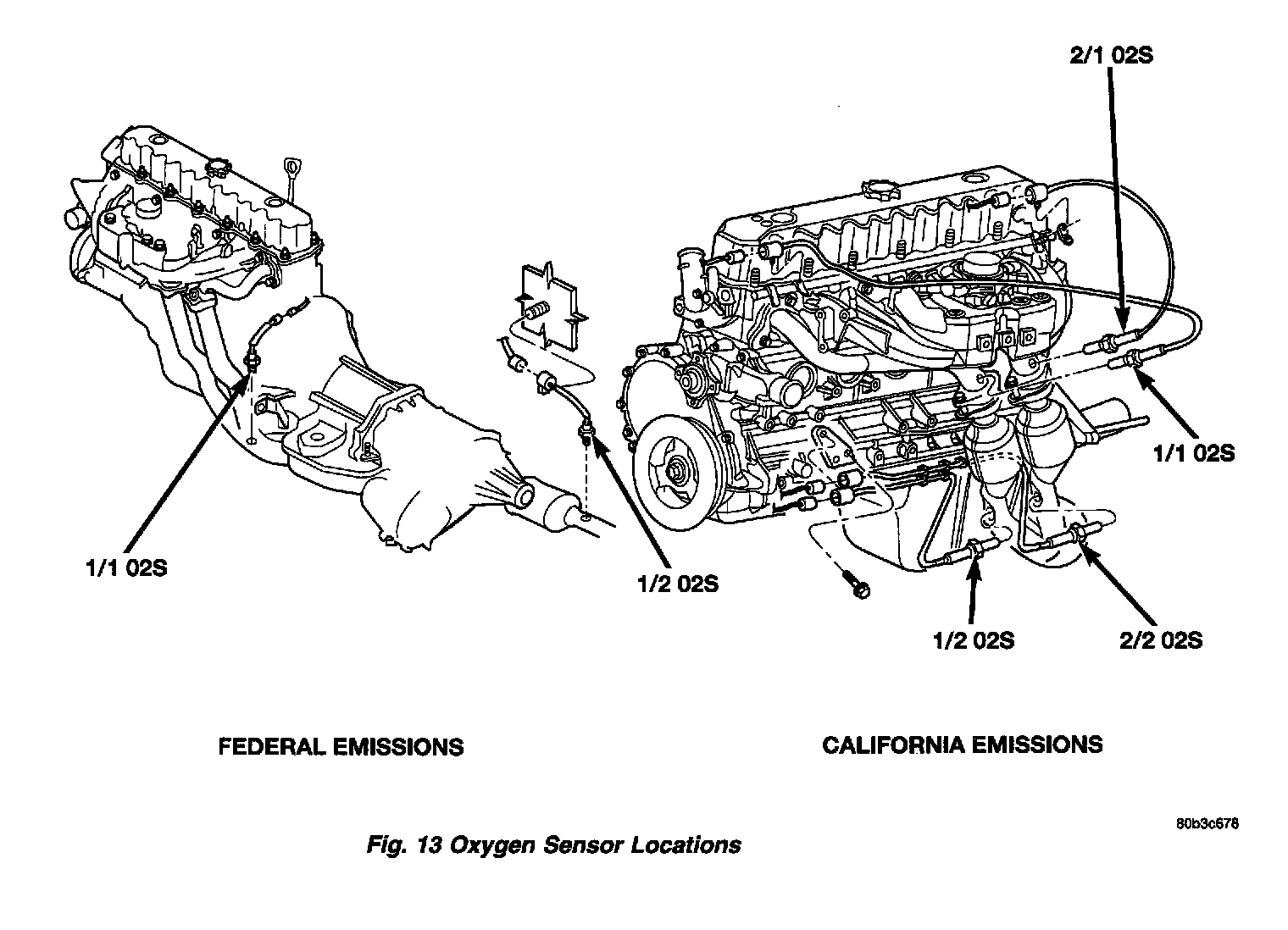

Fig.13 Oxygen Sensor Locations:







The Oxygen Sensors (O2S) are attached to, and protrude into the vehicle exhaust system.
