Battery Temperature Sensor: Removal

The battery temperature sensor is located under the vehicle battery (Fig 1) and is attached to a mounting hole on the battery tray.

The battery temperature sensor is located under the vehicle battery (Fig 1) and is attached to a mounting hole on the battery tray.

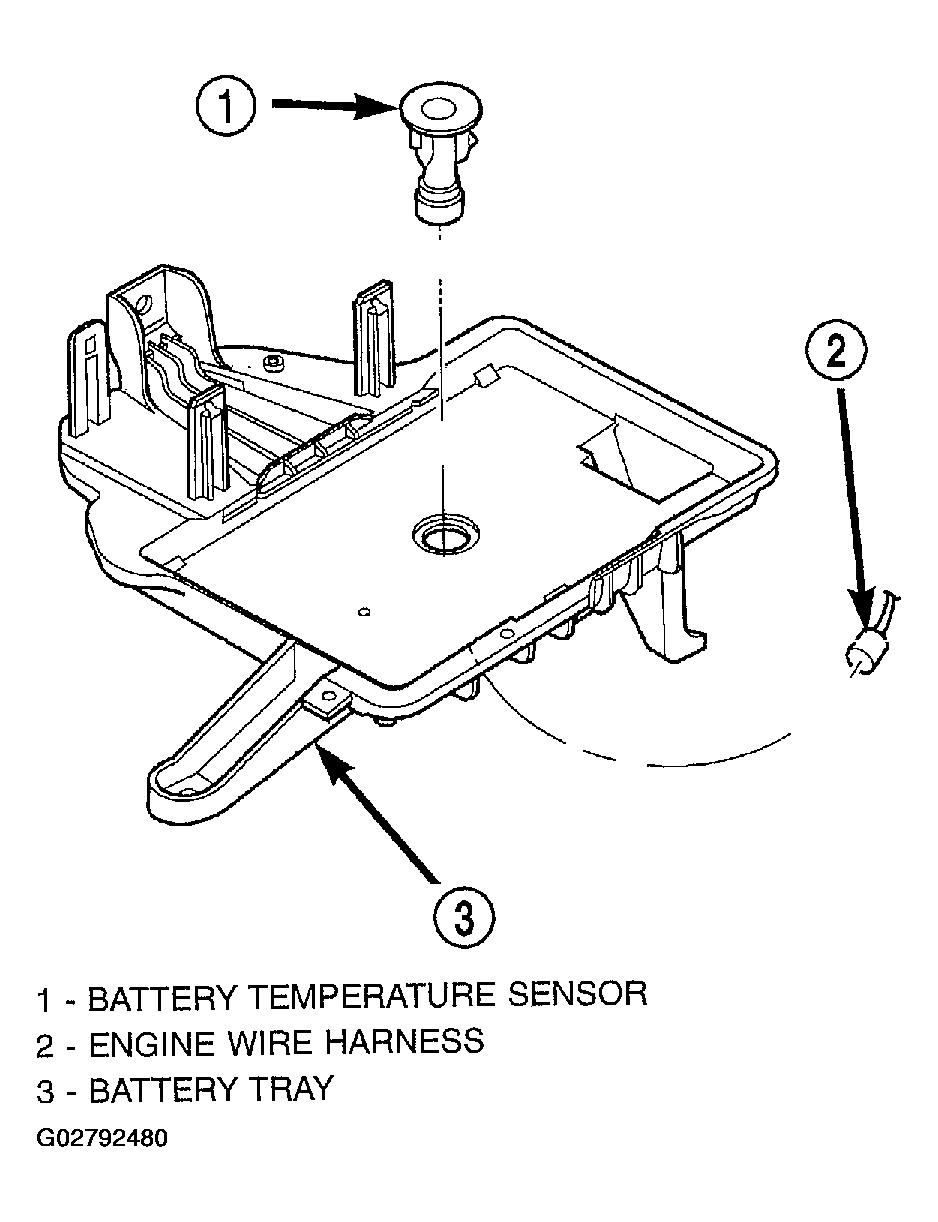

Fig 1: Removing Battery Temperature Sensor

Courtesy of DAIMLERCHRYSLER CORP.

1. Remove battery. Refer to BATTERY SYSTEM for procedures.
2. Remove battery tray.
3. Pull sensor up from battery tray and disconnect engine wire harness.
4. Remove sensor from battery tray.
