Torque Specifications- Gas Powered

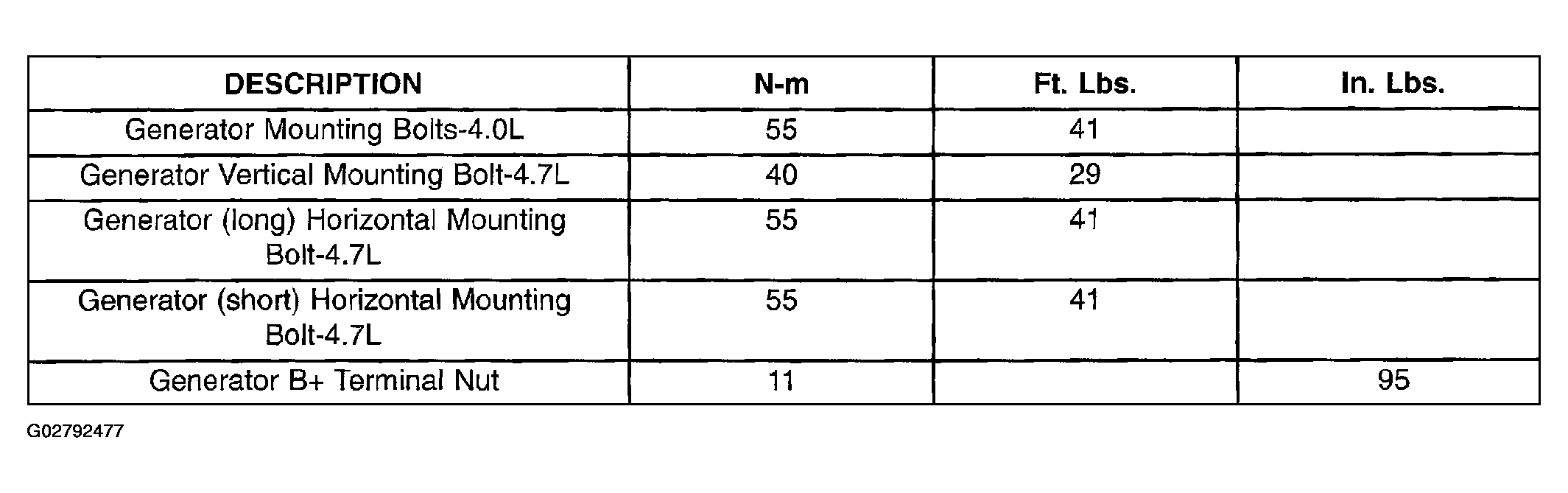

Fig 1: Generator Torque Specifications - Gas Powered

G02792477

Courtesy of DAIMLERCHRYSLER CORP.
