| A/C Compressor Bolt |
| Front Mount |
35-50 (47-65) |
| Rear Mount |
25-35 (35-47) |
| Camshaft Sprocket Bolt |
90 (122) |
| Connecting Rod Bolt |
| Step 1 |
20 (27) |
| Step 2 |
Tighten 90 Degrees |
| Crankshaft Damper Bolt |
130 (175) |

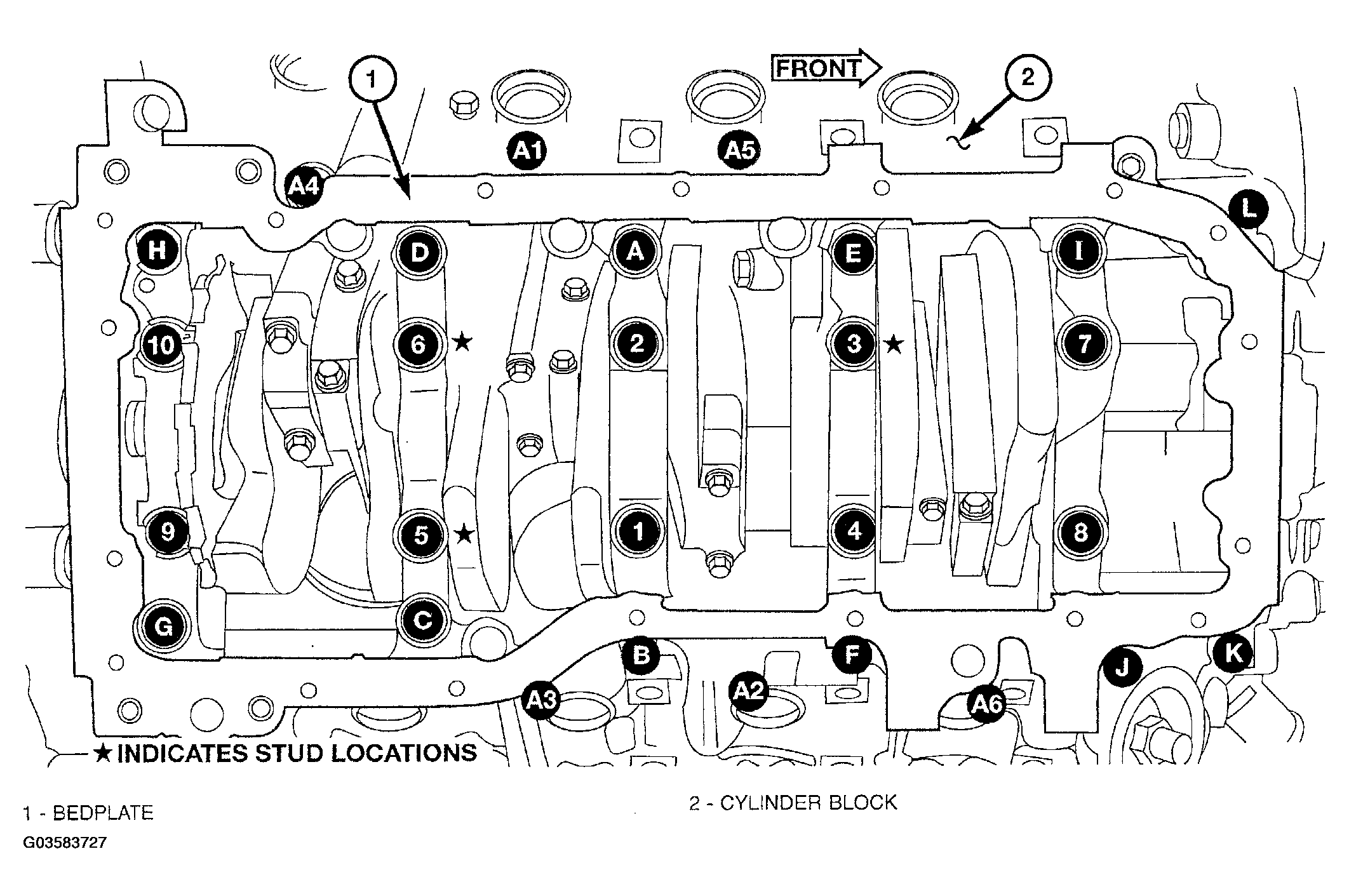

| Crankshaft Main Bearing Cap/Bedplate Bolt/Stud |
| Step 1 (Bolts/Studs A-L) |
40 (54) |
| Step 2 (Bolts/Studs 1-10) |
|
| Step 3 (Bolts 1-10) |
Tighten 90 Degrees |
| Step 4 (Bolts A1-A6) |
20 (27) |

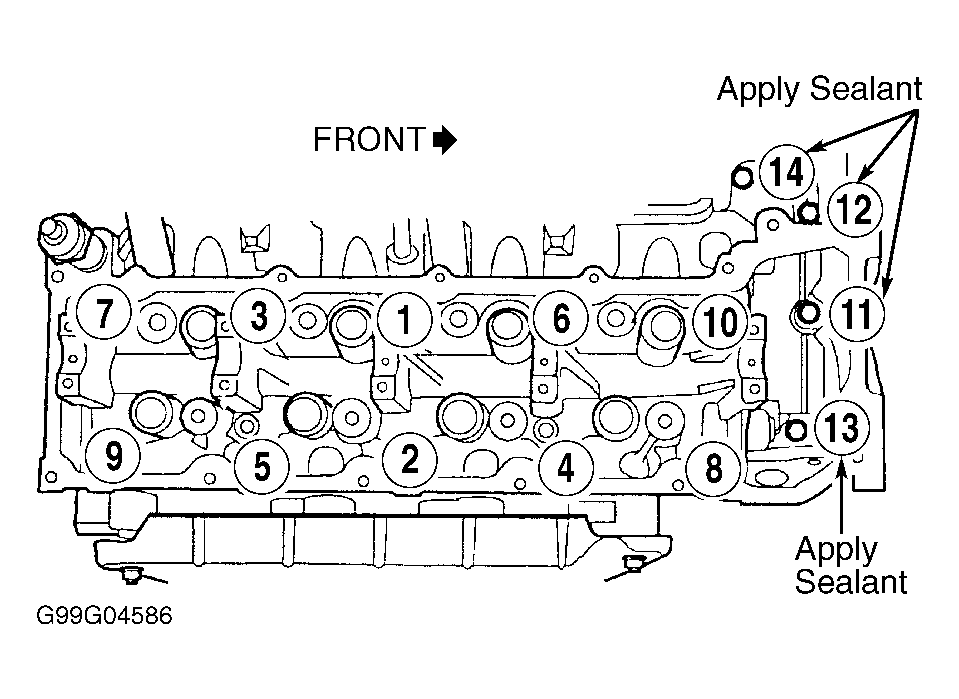

| Cylinder Head Bolt (Except Grand Cherokee) |
| Step 1 (Bolts 1-10) |
15 (20) |
| Step 2 |
| Bolts 1-10 |
35 (47) |
| Bolts 11-14 |
18 (25) |
| Step 3 |
| Bolts 1-10 |
Tighten 90 Degrees |
| Bolts 11-14 |
22 (30) |
| Cylinder Head Bolt (Grand Cherokee) |
| Step 1 (Bolts 1-10) |
20 (27) |
| Step 2 |
| Bolts 1-10 (Repeat Step 1) |
20 (27) |
| Bolts 11-14 |
10 (14) |
| Step 3 |
| Bolts 1-10 |
Tighten 90 Degrees |
| Step 4 |
| Bolts 1-10 |
Tighten Additional 90 Degrees |
| |
Bolts 11-14 |
19 (26 |
| Engine Mount Through-Bolt Retaining Nut |
45 (60) |
| Engine Mount-To-Cylinder Block Bolt |
45 (60) |
| Exhaust Manifold Bolt & Nut |
18 (24) |
| Exhaust Manifold Heat Shield Bolts |
30 (41) |
| Flywheel/Flexplate-To-Crankshaft Bolt |
45 (60) |

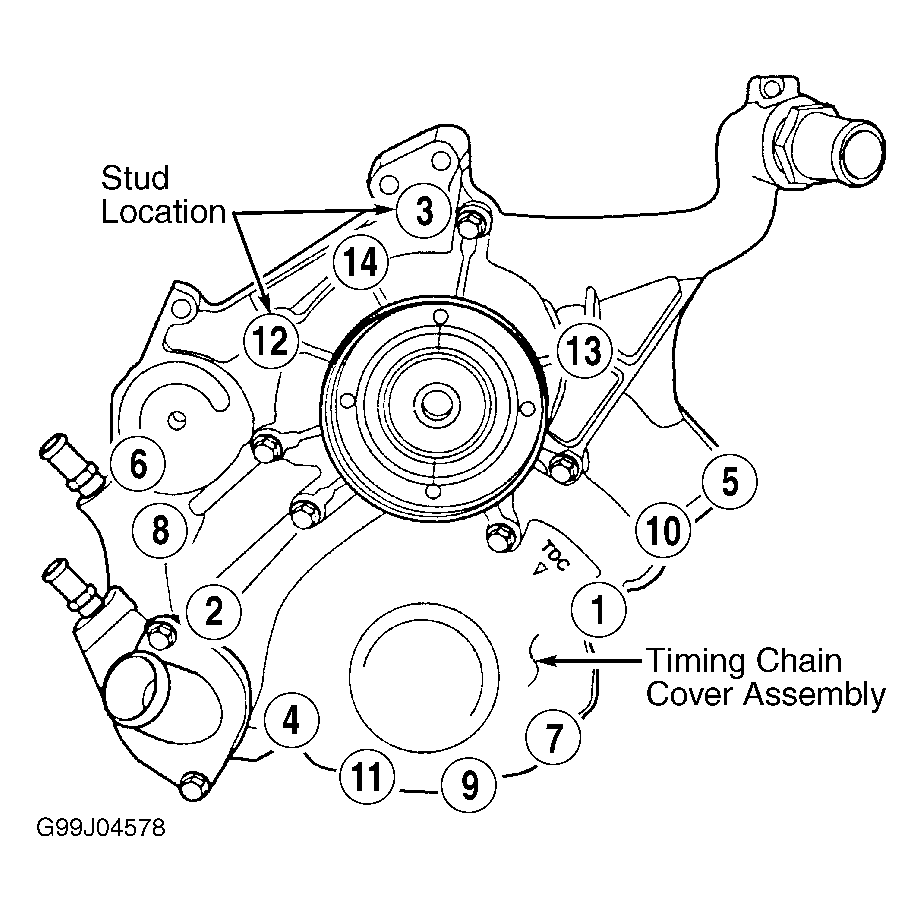

| Front Cover Bolt |
40 (54) |
| Oil Drain Plug |
25 (34) |
| Generator Mounting Bolt |
| Vertical Mounting Bolt |
29 (40) |
| Long & Short Horizontal Mounting Bolt |
41 (55) |

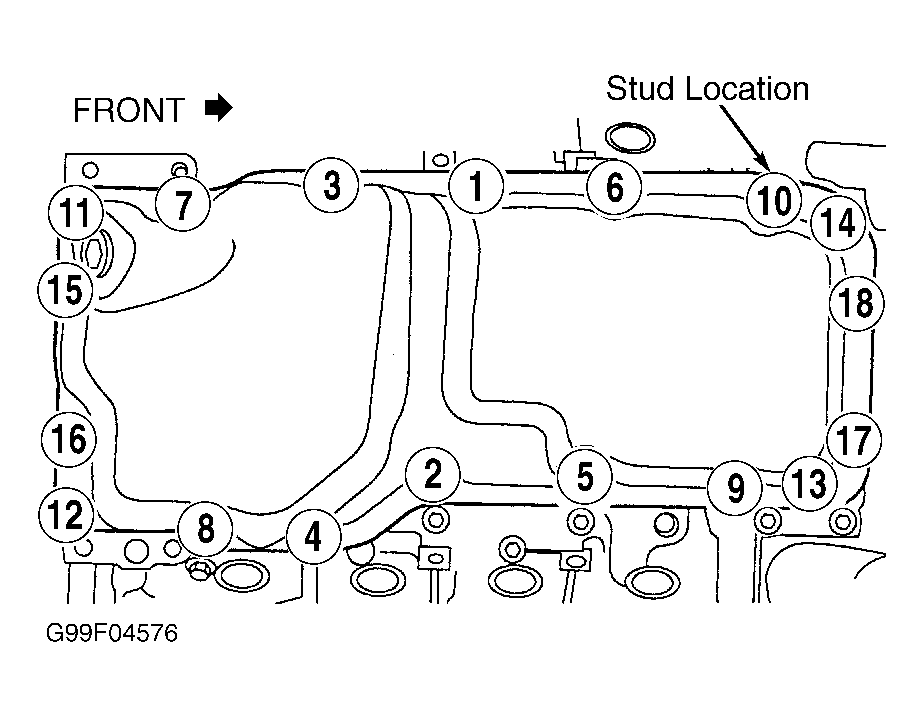

| Oil Pan Bolt |
11 (15) |
| Oil Pump/Primary Timing Chain Tensioner Bolt |
20 (27) |
| Power Steering Pump Bolt |
21 (29) |
| Rear Engine Mount Bolt |
34 (46) |
| Rear Engine Mount Bracket Through-Bolt Retaining Nut |
| Durango |
| 2WD |
70 (95) |
| 4WD |
75 (102) |
| Rear Engine Mount Through-Bolt Retaining Nut |
50 (68) |
| Spark Plug |
20 (27) |
| Starter Bolts |
33 (45) |

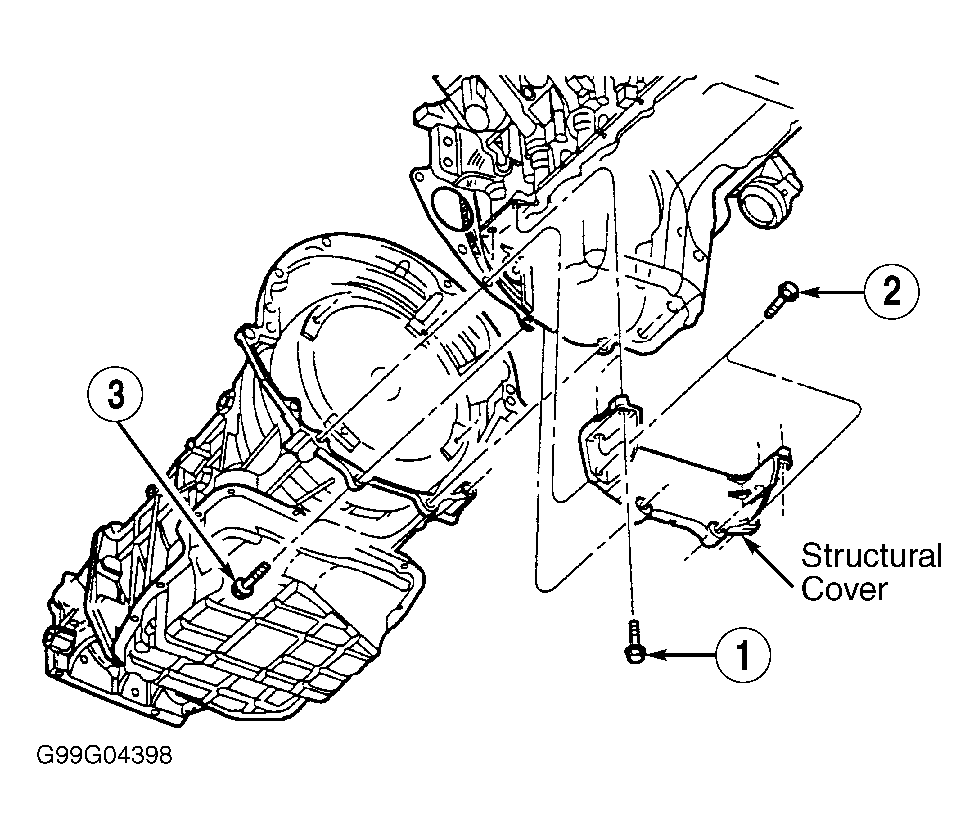

| Structural Cover Bolts |
40 (54) |
| Throttle Body Bolt |
17 (23) |
| Vibration Damper Bolt |
135 (183) |
| Water Pump Bolt |
30 (41) |
| INCH Lbs. (N.m) |

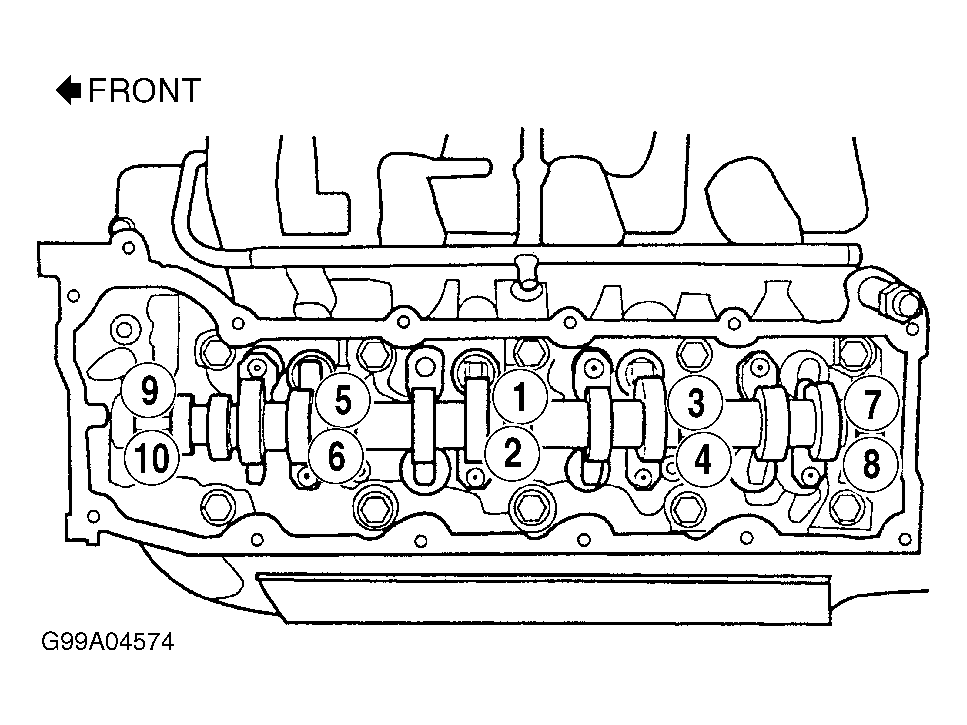

| Camshaft Bearing Cap Bolt |
100 (11) |
| Exhaust Manifold Heat Shield Bolt |
| Step 1 |
72 (8) |
| Step 2 |
Loosen 45 Degrees |

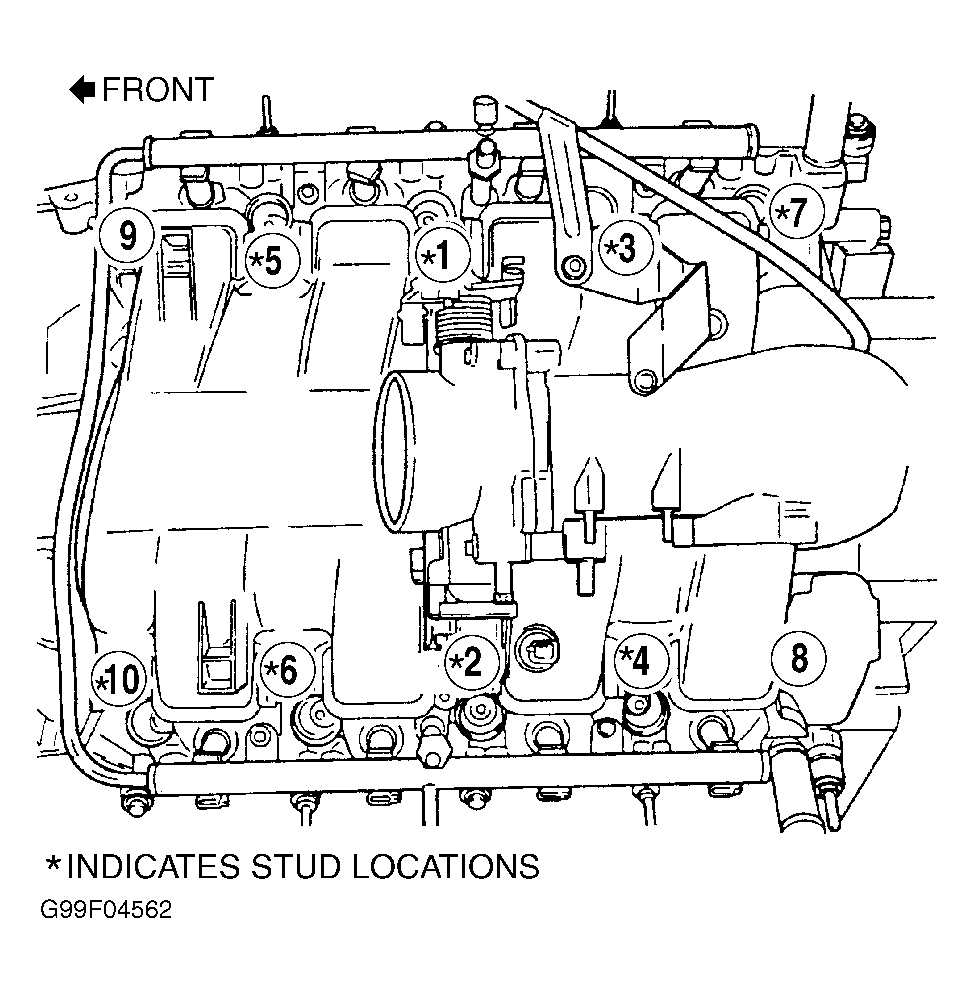

| Intake Manifold Bolt/Stud |
105 (12) |
| Oil Pump Cover Bolt |
105 (12) |
| Valve Cover Bolt |
105 (12) |
