Torque Specifications - Starter

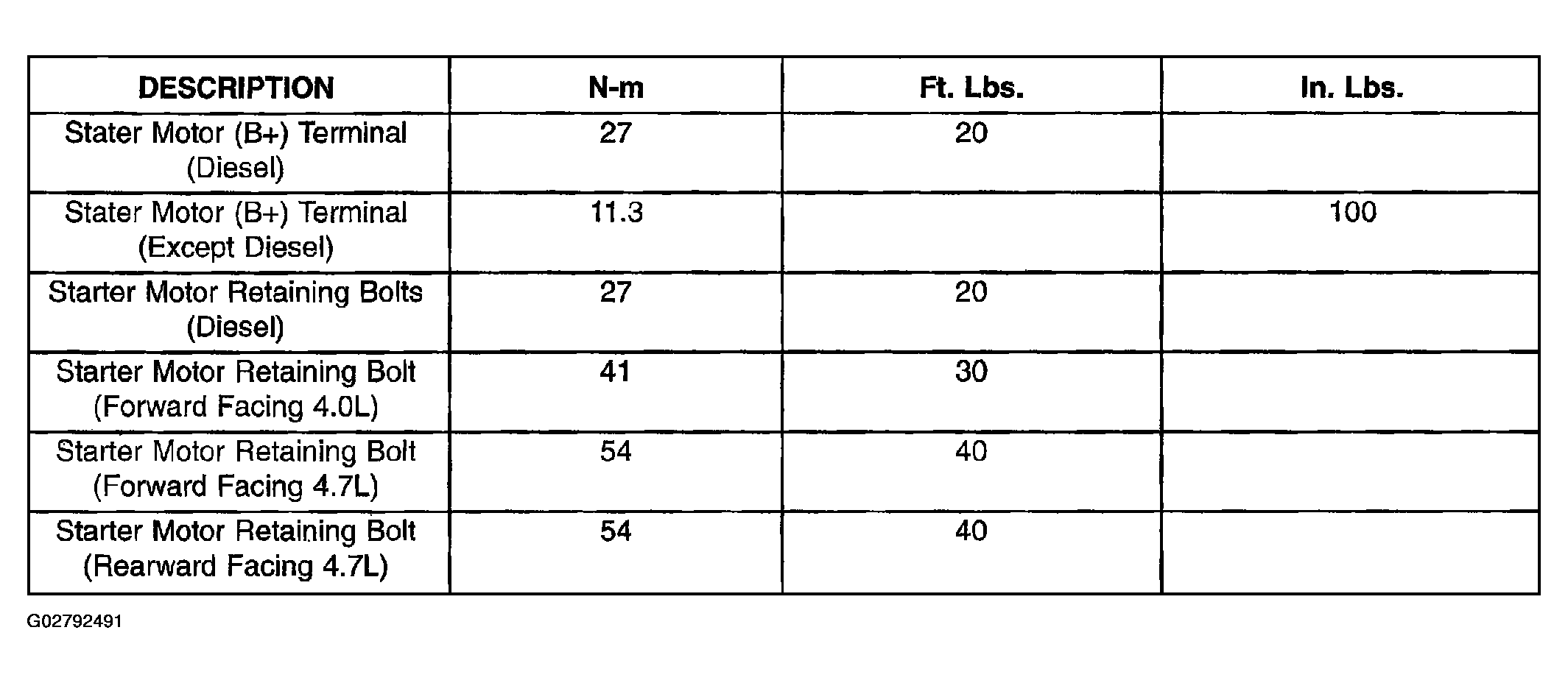

Fig 1: Starter Torque Specifications Chart

G02792491

Courtesy of DAIMLERCHRYSLER CORP.
