ORC Airbag Control Module Connector End View (C1)

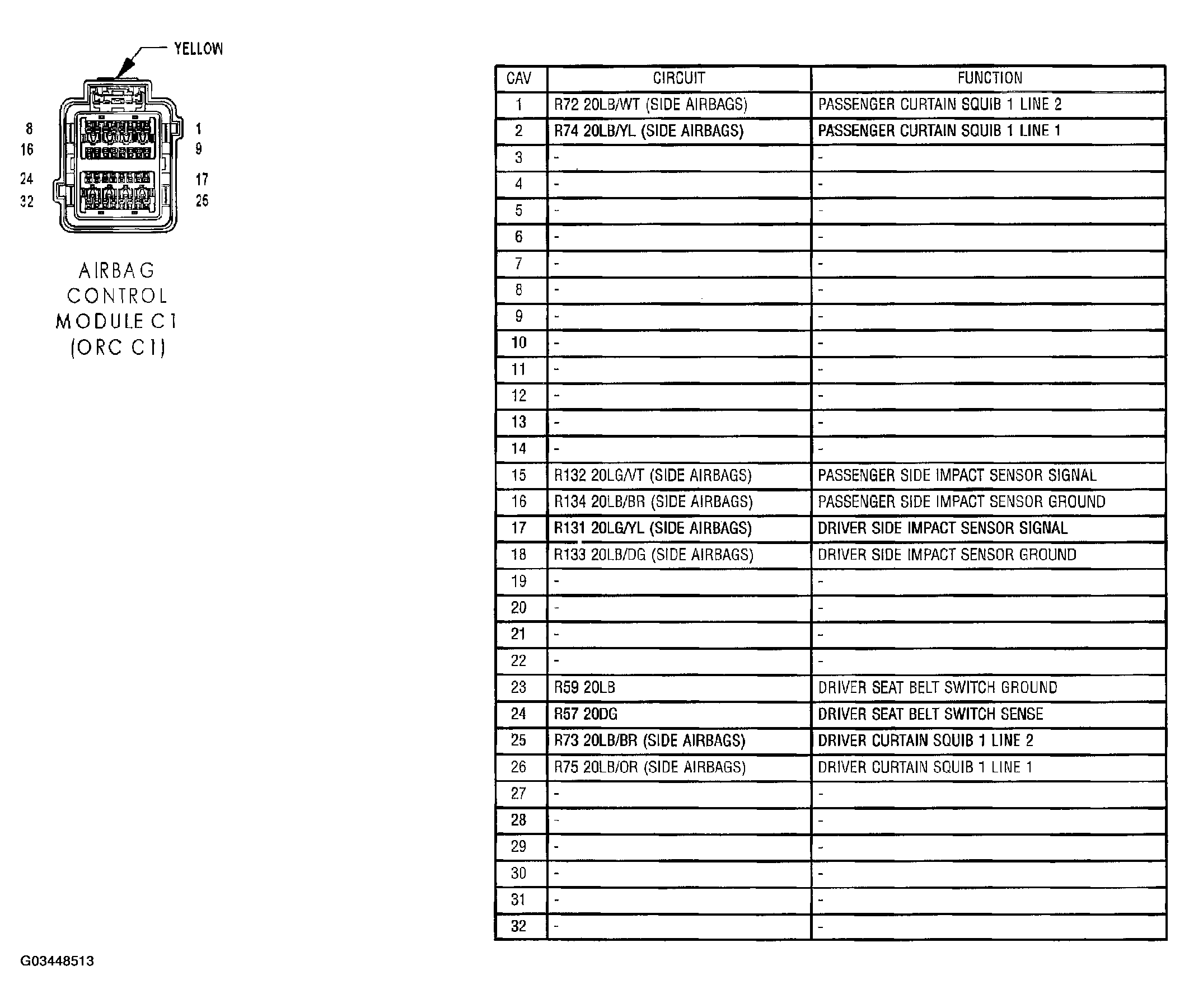

Fig 1: ORC Airbag Control Module Connector End View (C1)
G03448513Courtesy of CHRYSLER GROUP, LLC
