Right Multi-Function Switch - White 10 Way Connector End View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Right Multi-Function Switch - White 10 Way Connector End View

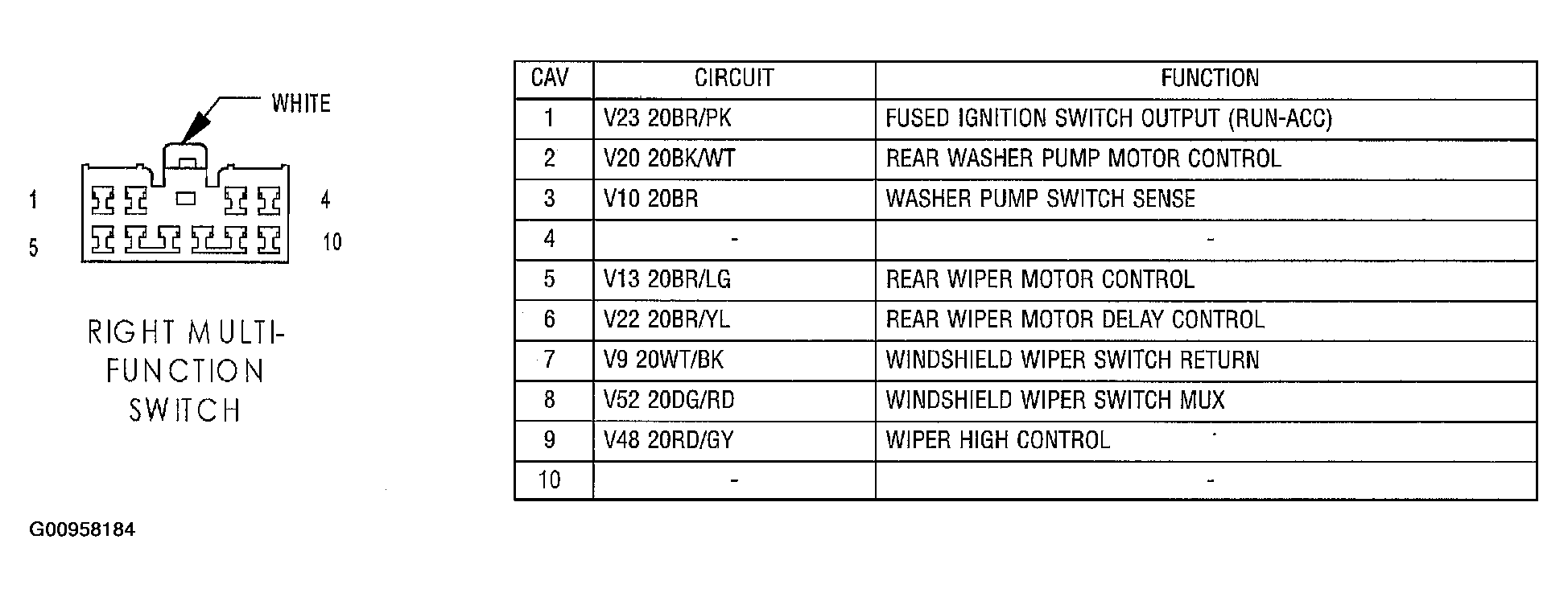

Fig 1: Right Multi-Function Switch - White 10 Way Connector End View
Courtesy of CHRYSLER GROUP, LLC
