Transfer Case Position Sensor Connector End View

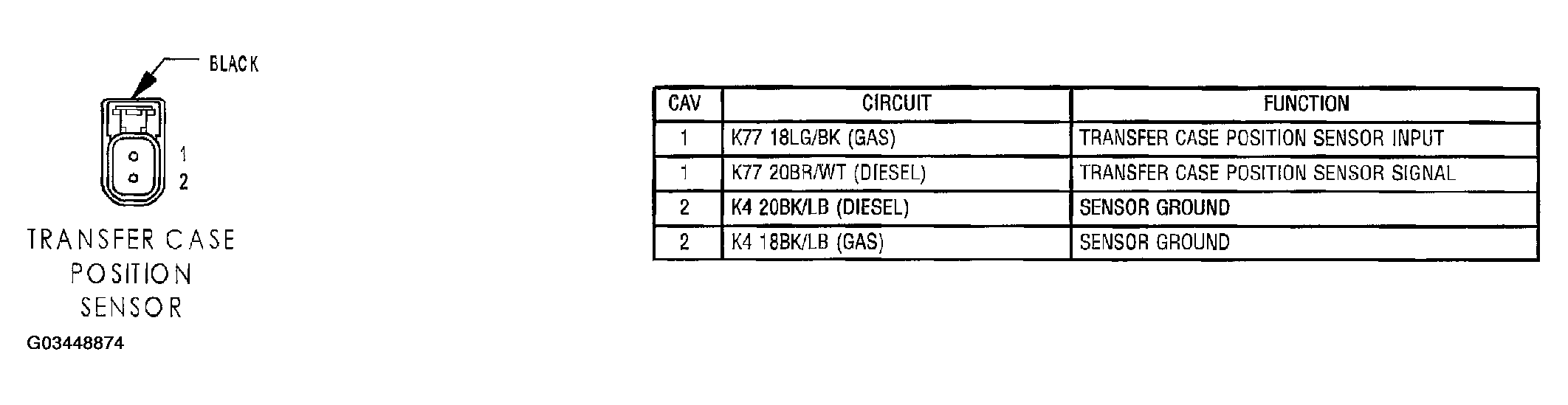

Fig 1: Transfer Case Position Sensor Connector End View
G03448874Courtesy of CHRYSLER GROUP, LLC
