Data Link Connector End View

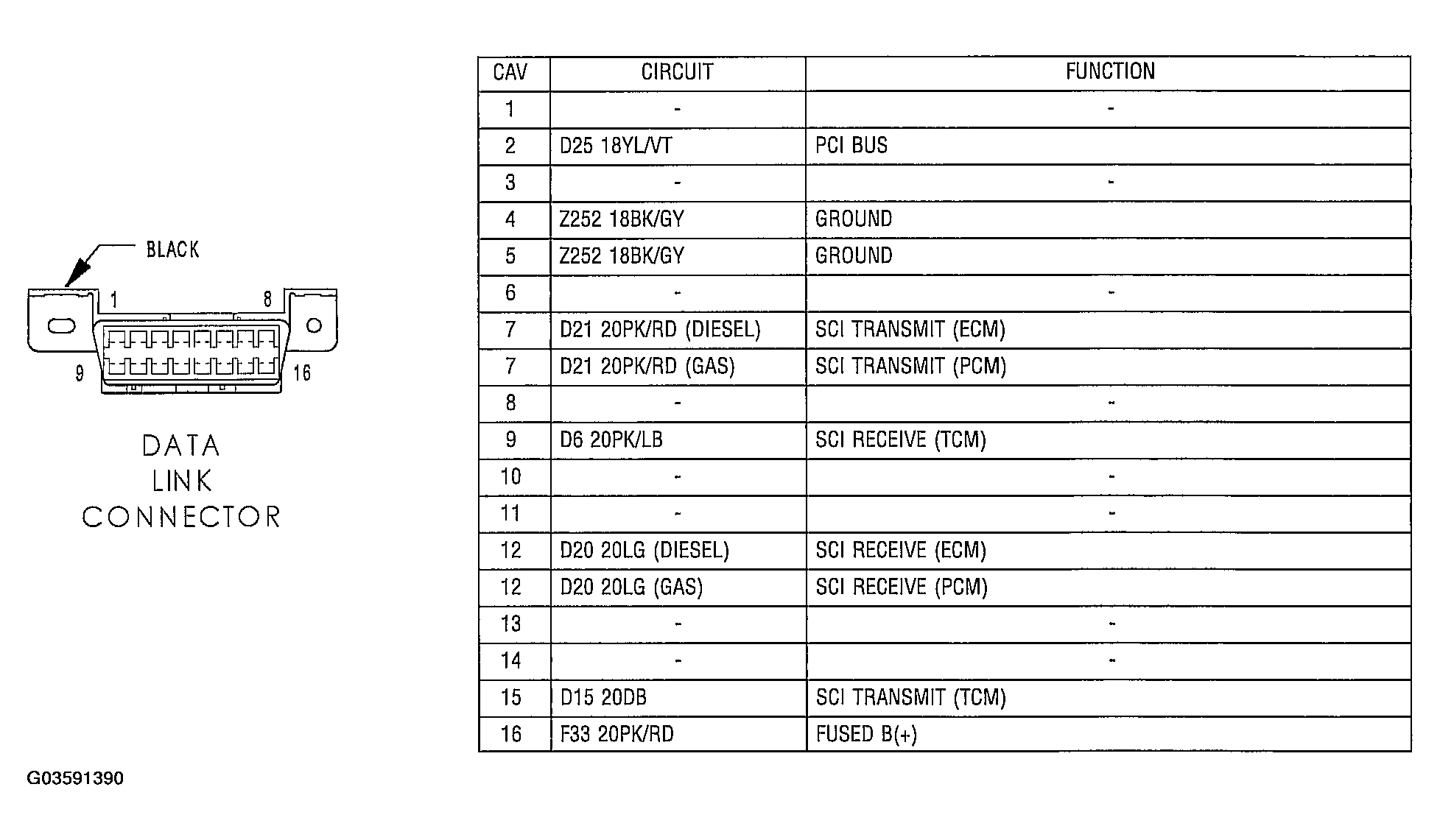

Fig 1: Data Link Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
