Multifunction Switch C1 Connector End View

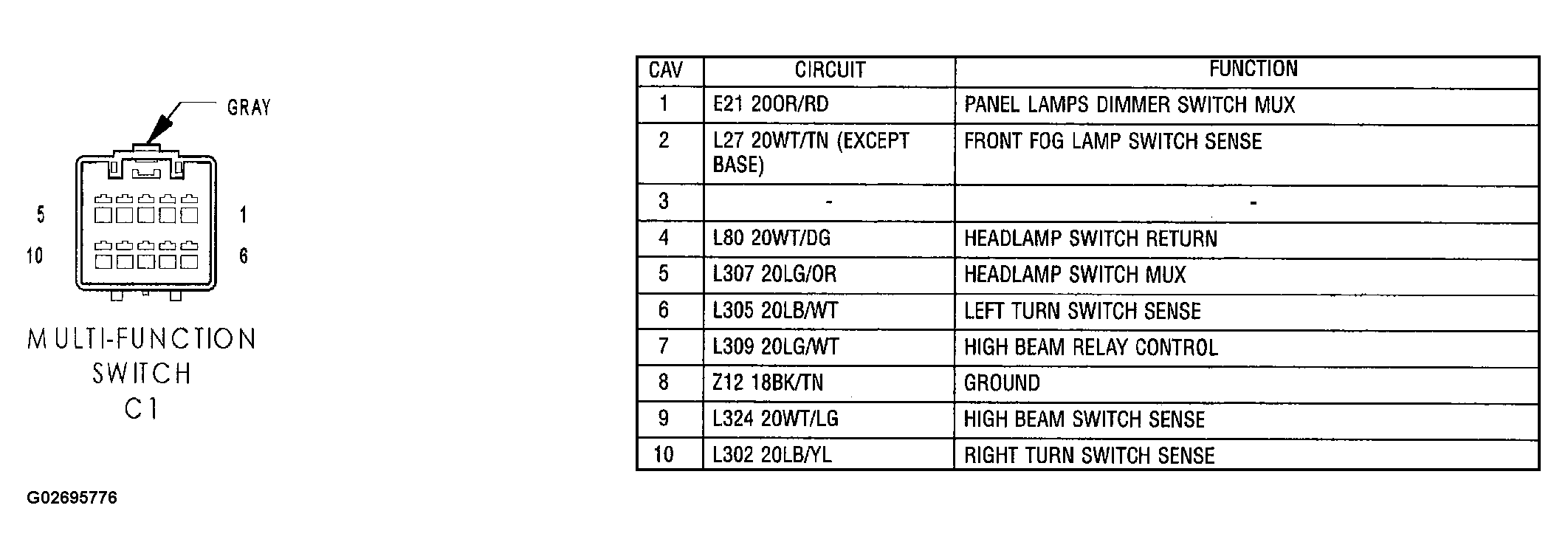

Fig 1: Multifunction Switch C1 Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
