Transfer Case Position Sensor Connector End View

Fig 1: Transfer Case Position Sensor Connector End View
G00962542Courtesy of CHRYSLER GROUP, LLC

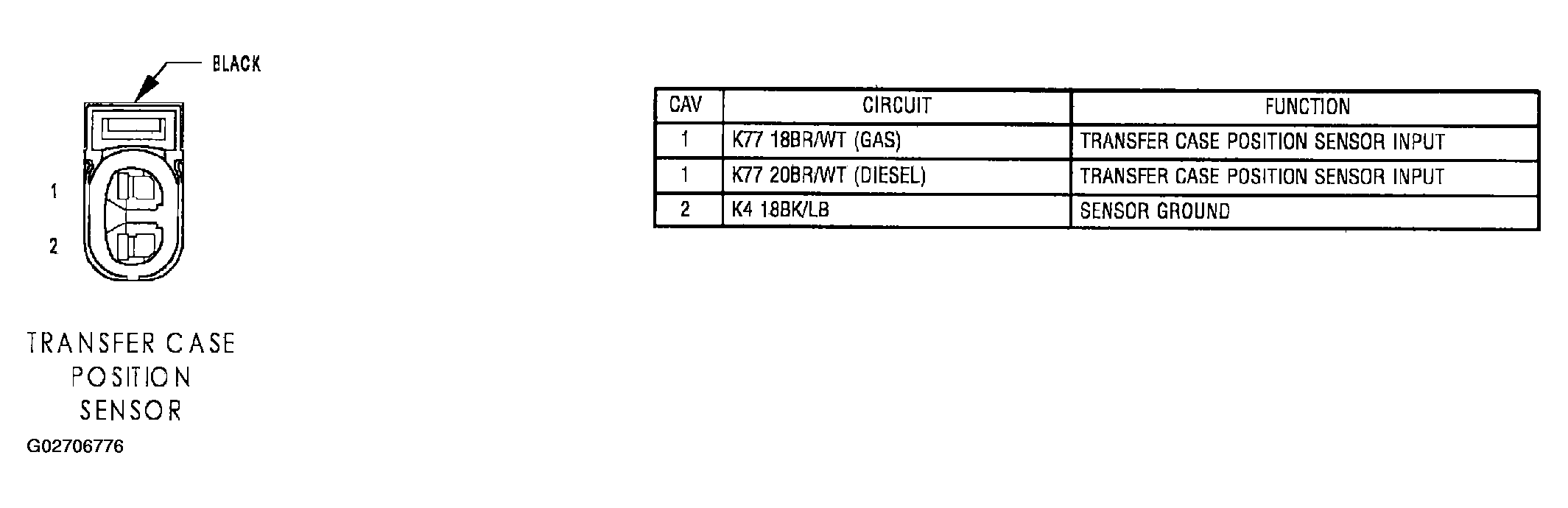

Fig 1: Transfer Case Position Sensor Connector End View
G02706776Courtesy of CHRYSLER GROUP, LLC
