Battery Temperature Sensor: Removal

The battery temperature sensor is located under the vehicle battery (Fig 1) and is attached to a mounting hole on battery tray.

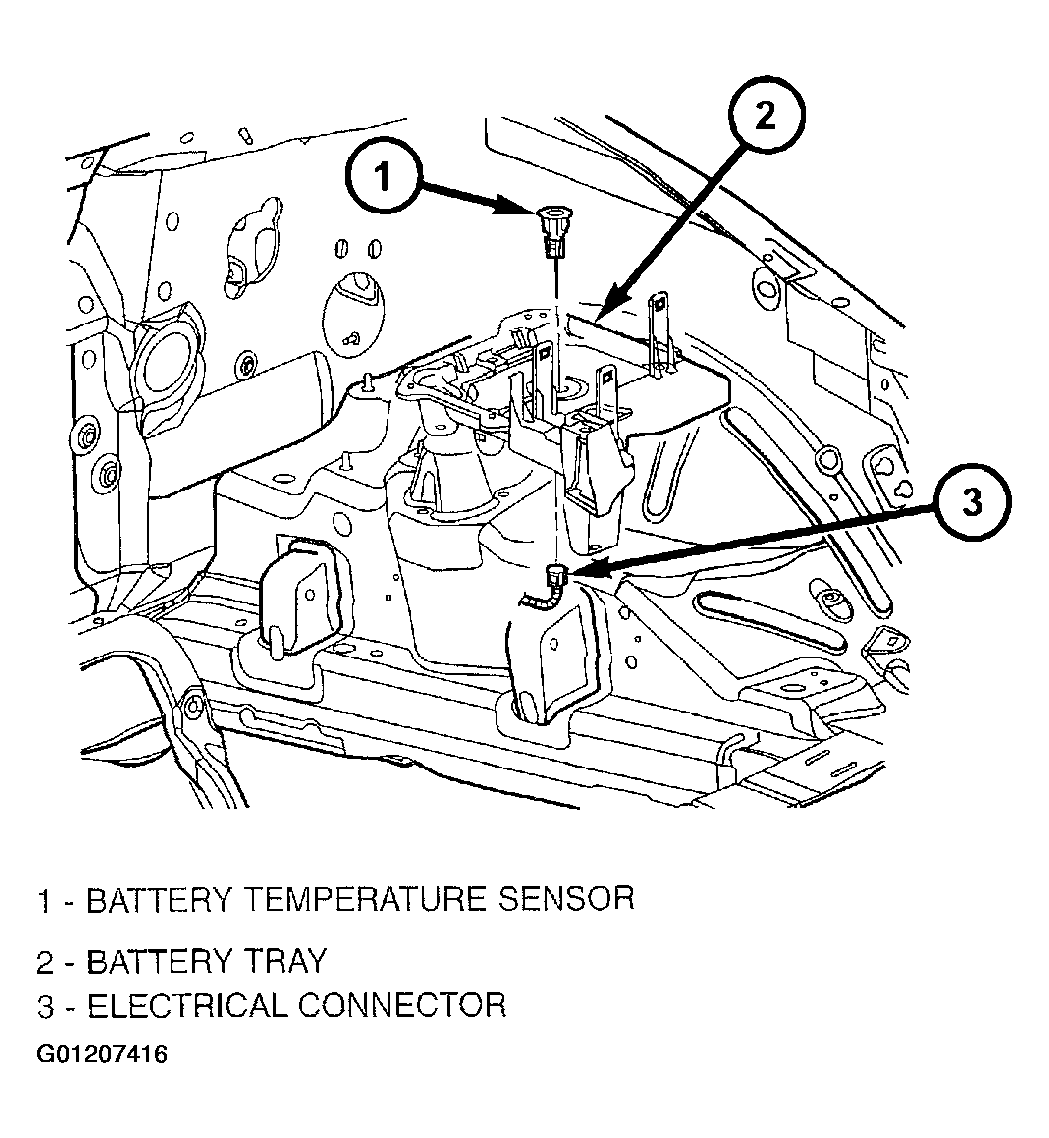

Fig 1: Identifying Battery Temperature Sensor

Courtesy of DAIMLERCHRYSLER CORP.

1. Remove battery.
2. Disconnect sensor pigtail harness for engine wire harness electrical connector.
3. Pry sensor straight up from battery tray mounting hole.
