Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
Figure 15
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Figure 15

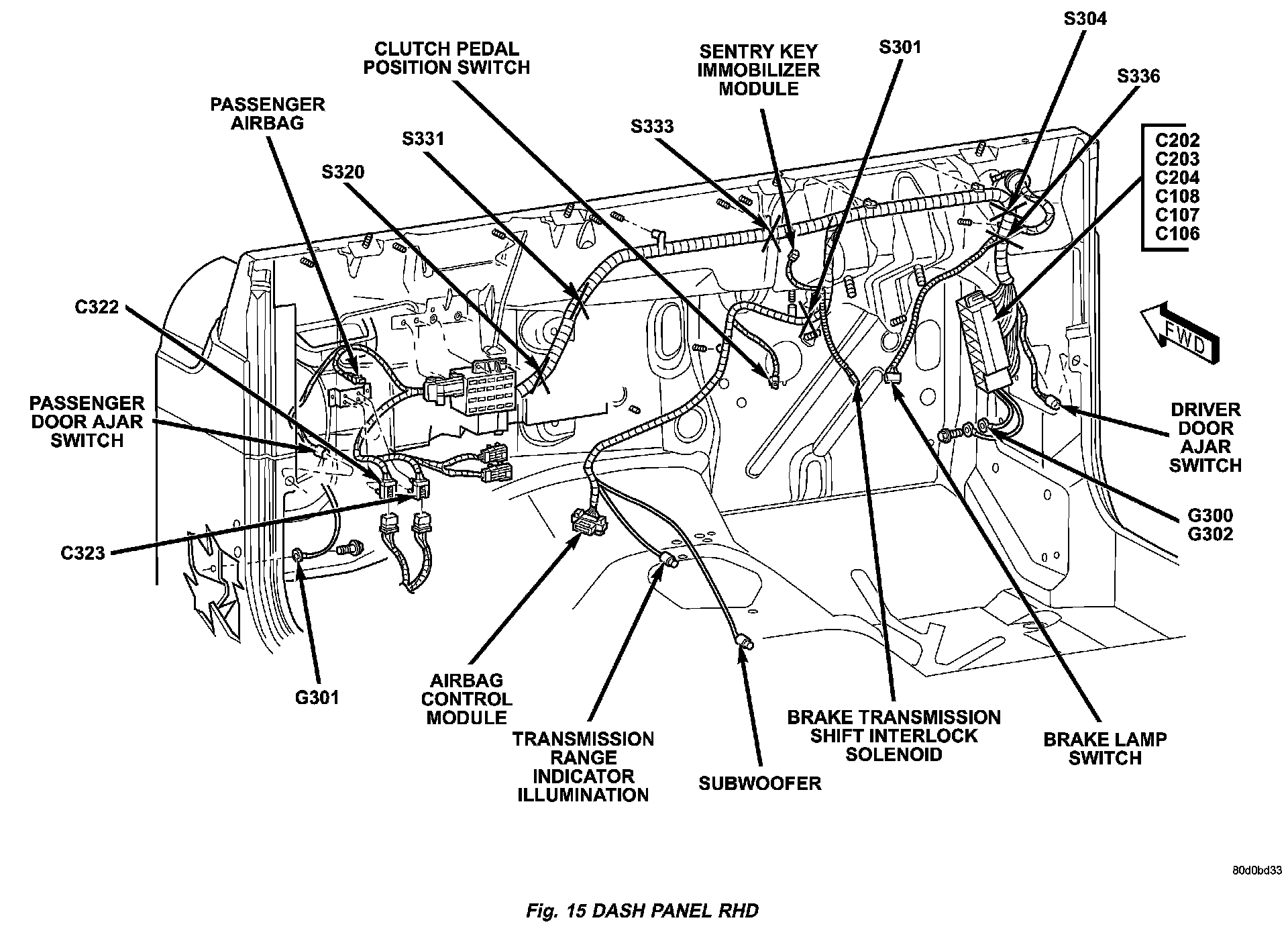

Fig.15 Dash Panel RHD:
