Fuel Filter: Locations

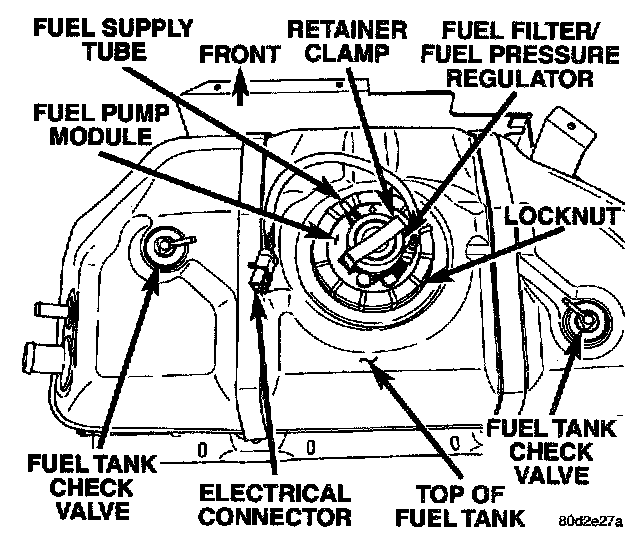

The combination fuel filter and fuel pressure regulator is located on the top of fuel pump module (Fig. 12).
