Checking the Throttle Position Sensor

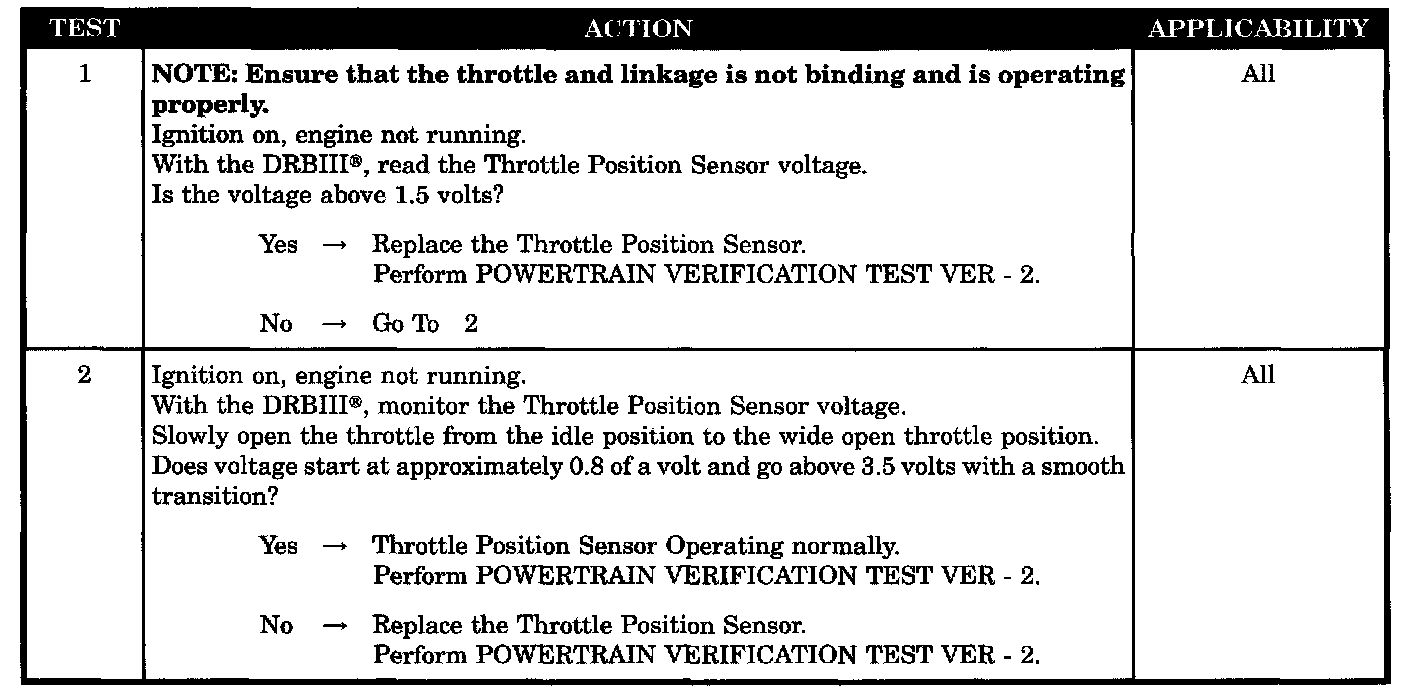

Tests 1 - 2:




SYMPTOM
CHECKING THROTTLE POSITION SENSOR OPERATION WITH NO DTCS

POSSIBLE CAUSES
- Throttle position sensor voltage above 1.5 volts
- Throttle position sensor sweep
- TP sensor
