Pump Motor Not Working Properly: Testing

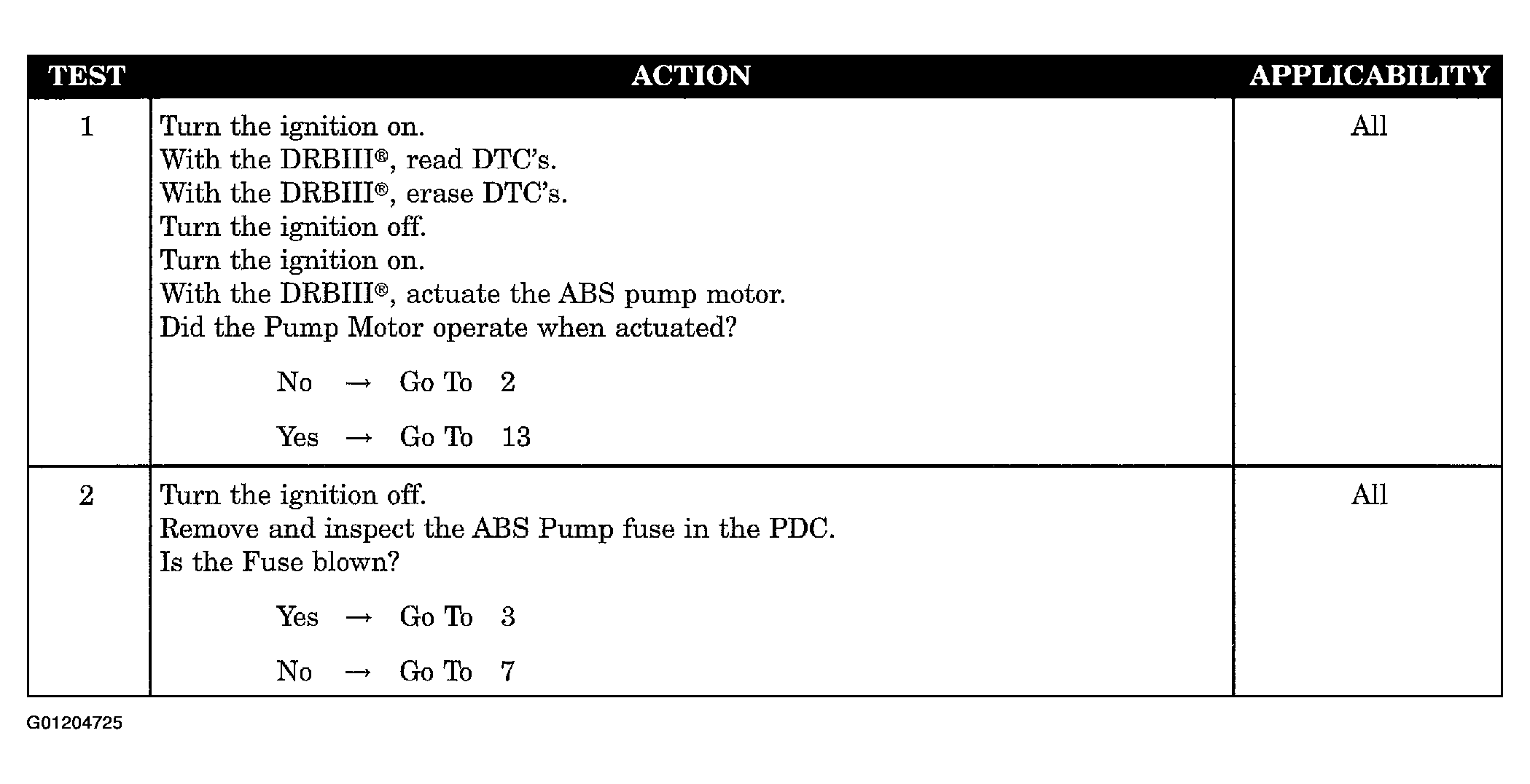

Fig 1: Testing: Pump Motor Not Working Properly (1 Of 4)

Courtesy of DAIMLERCHRYSLER CORP.

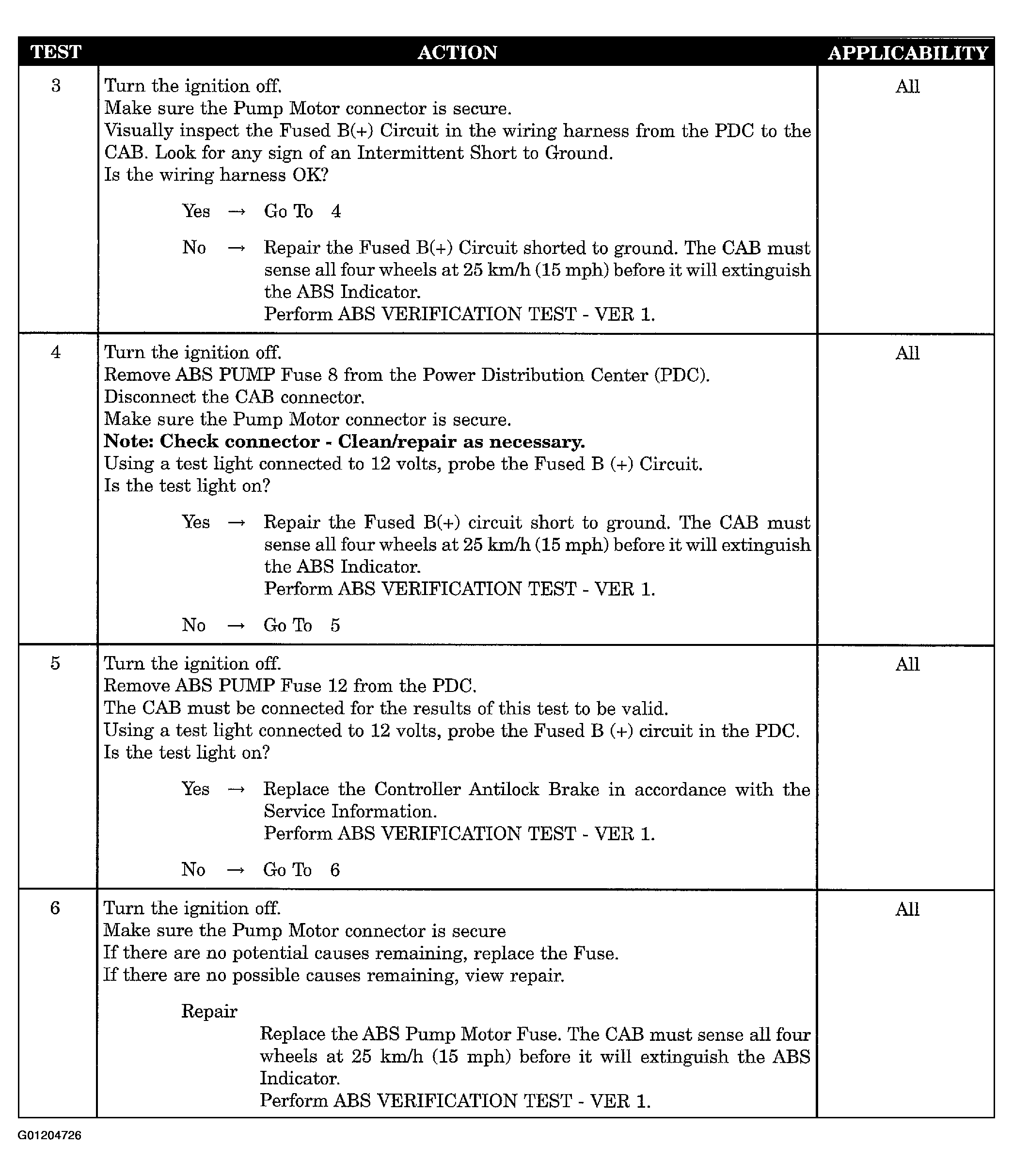

Fig 2: Testing: Pump Motor Not Working Properly (2 Of 4)

Courtesy of DAIMLERCHRYSLER CORP.

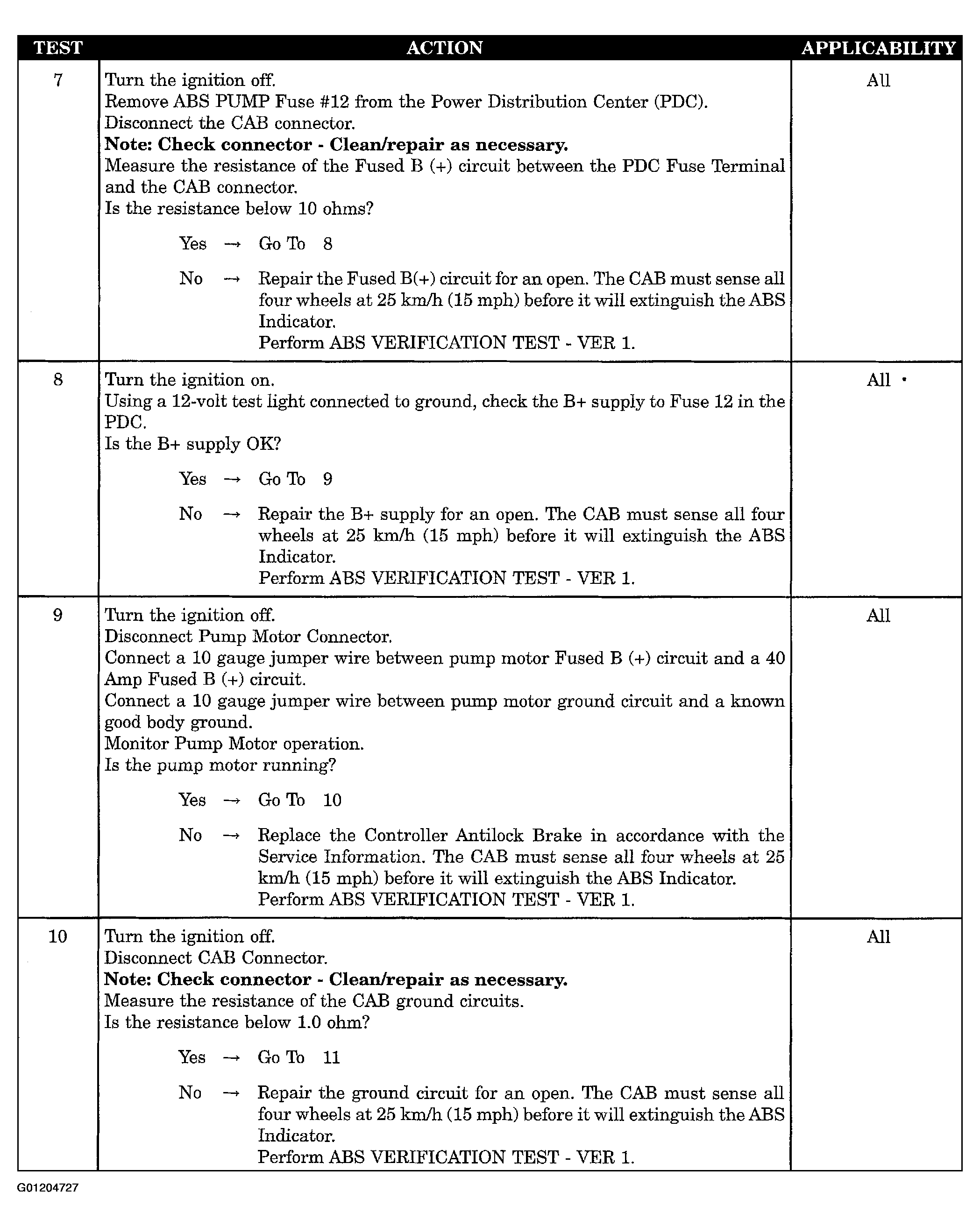

Fig 3: Testing: Pump Motor Not Working Properly (3 Of 4)

Courtesy of DAIMLERCHRYSLER CORP.

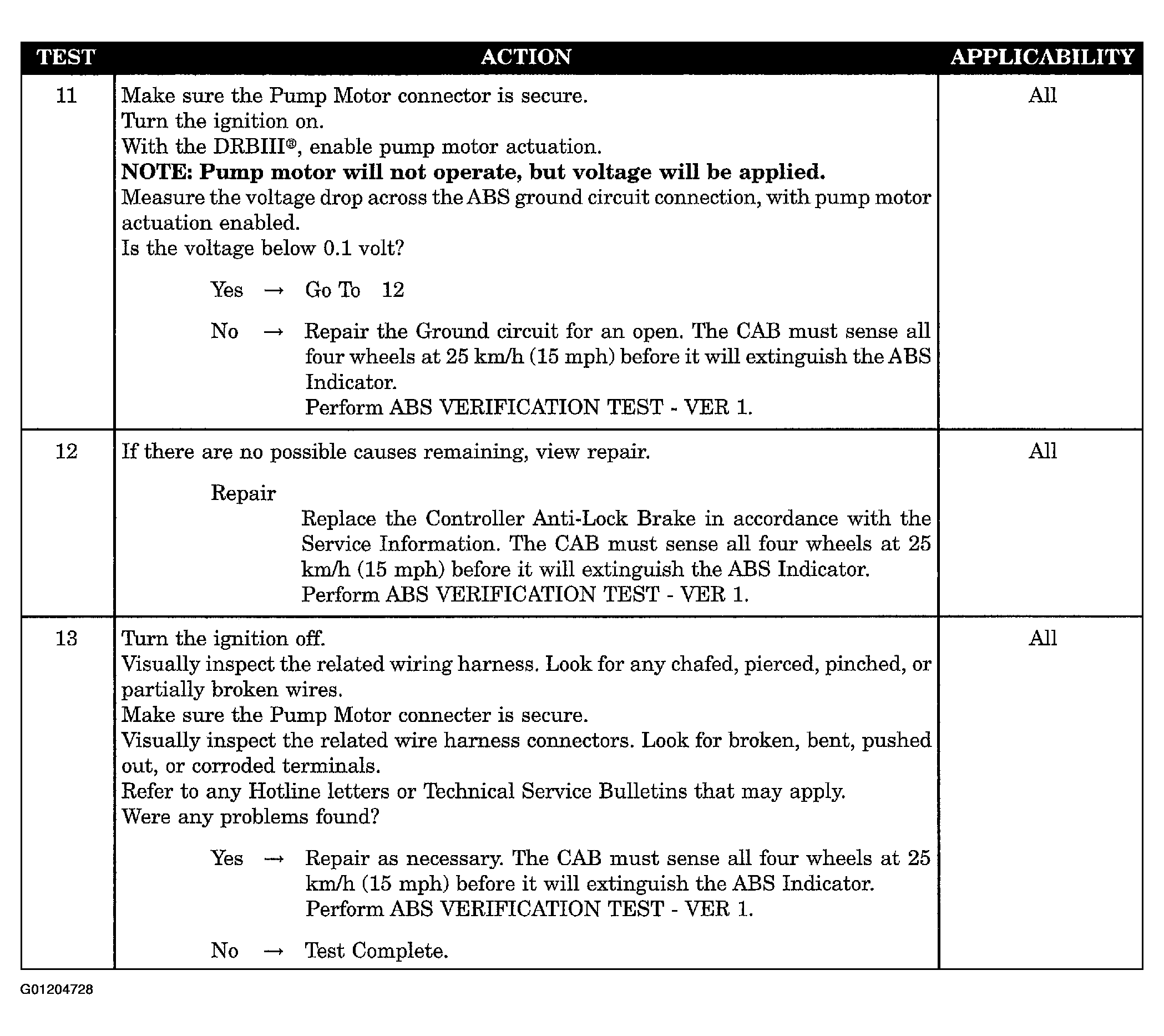

Fig 4: Testing: Pump Motor Not Working Properly (4 Of 4)

Courtesy of DAIMLERCHRYSLER CORP.
