Abs Verification Test - VER 1

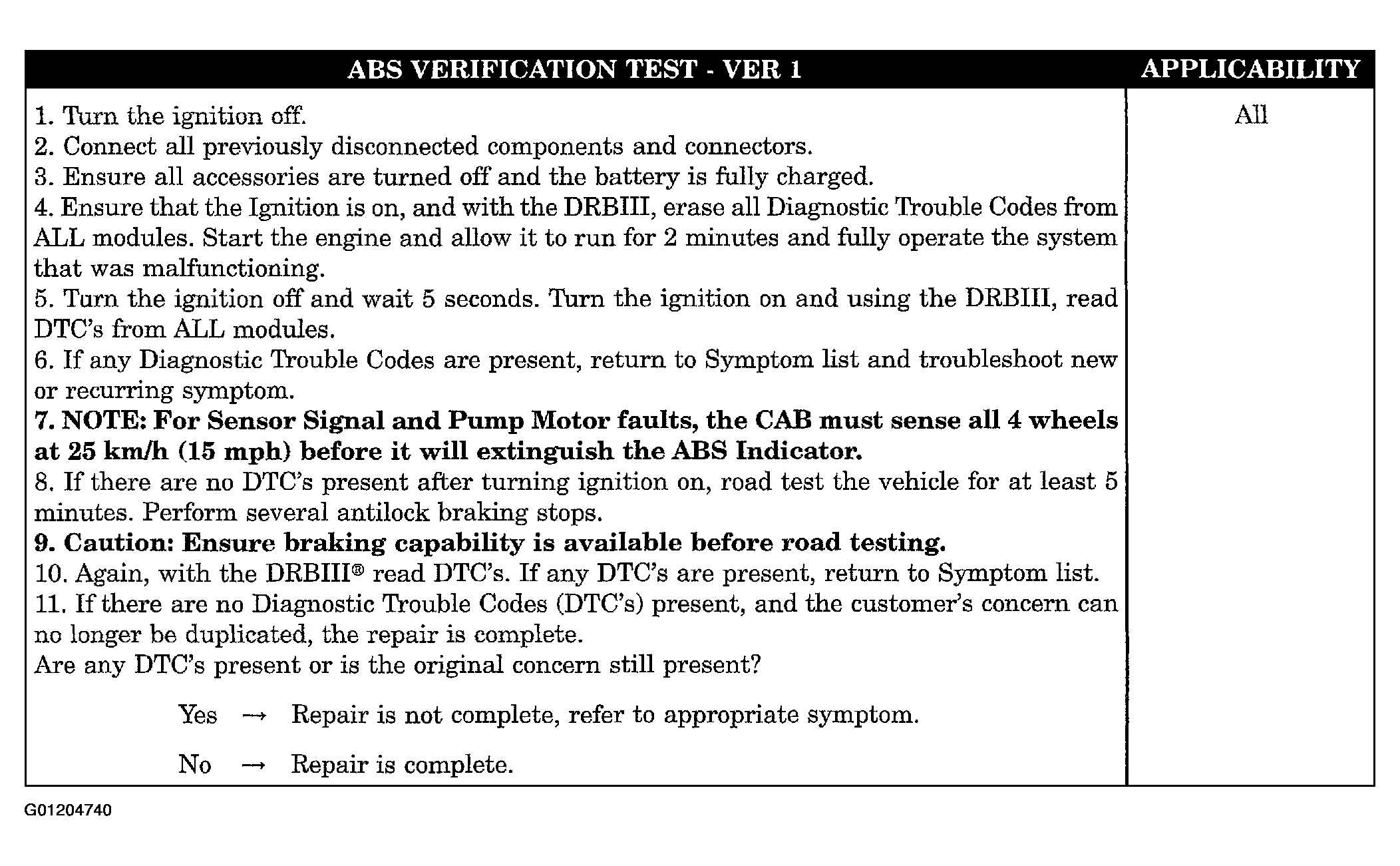

Fig 1: ABS Verification Test - Ver 1

G01204740

Courtesy of DAIMLERCHRYSLER CORP.
