*Brake Lamp Switch: Testing

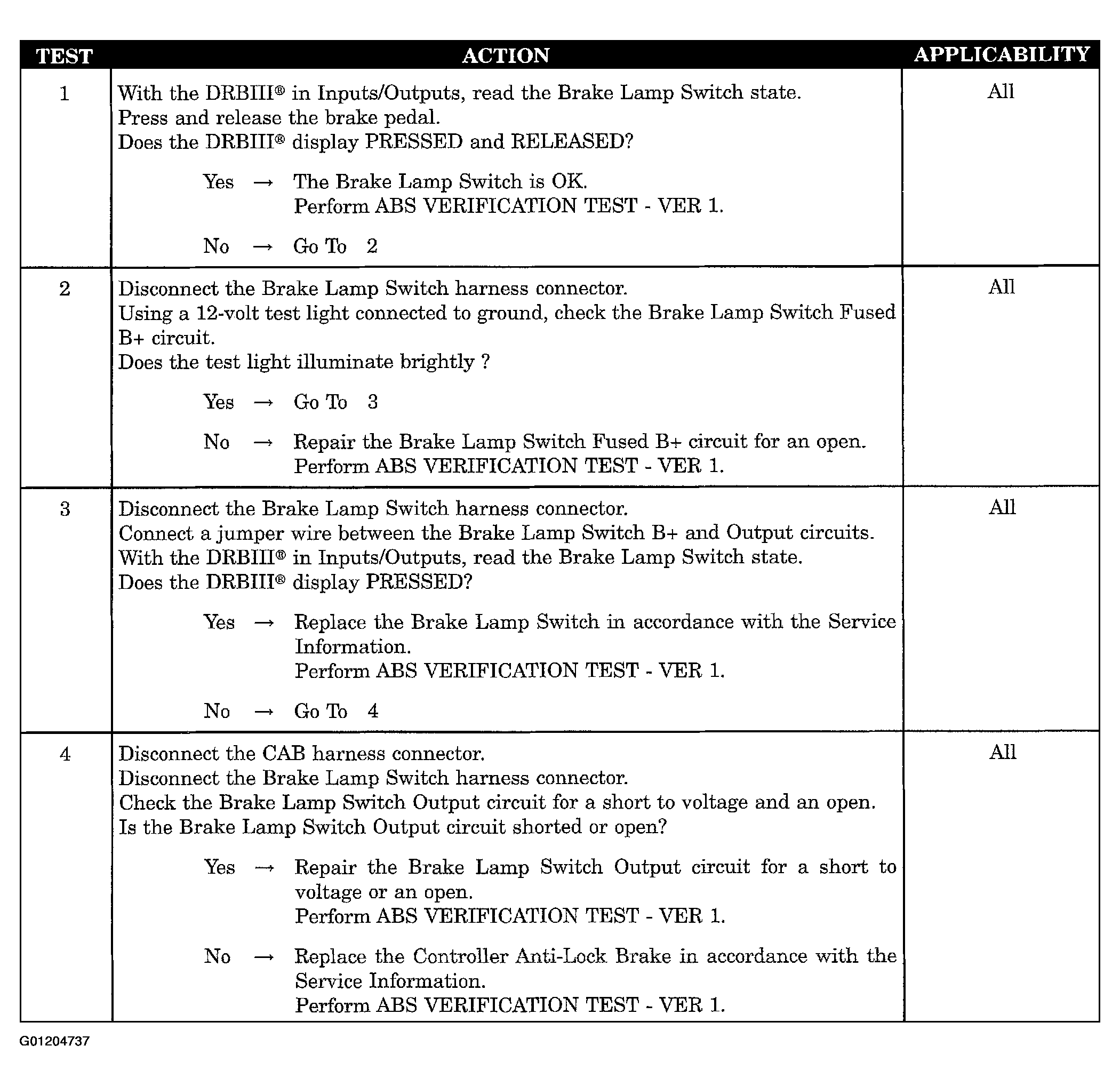

Fig 1: Testing: Brake Lamp Switch
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
