Controller Failure: Testing

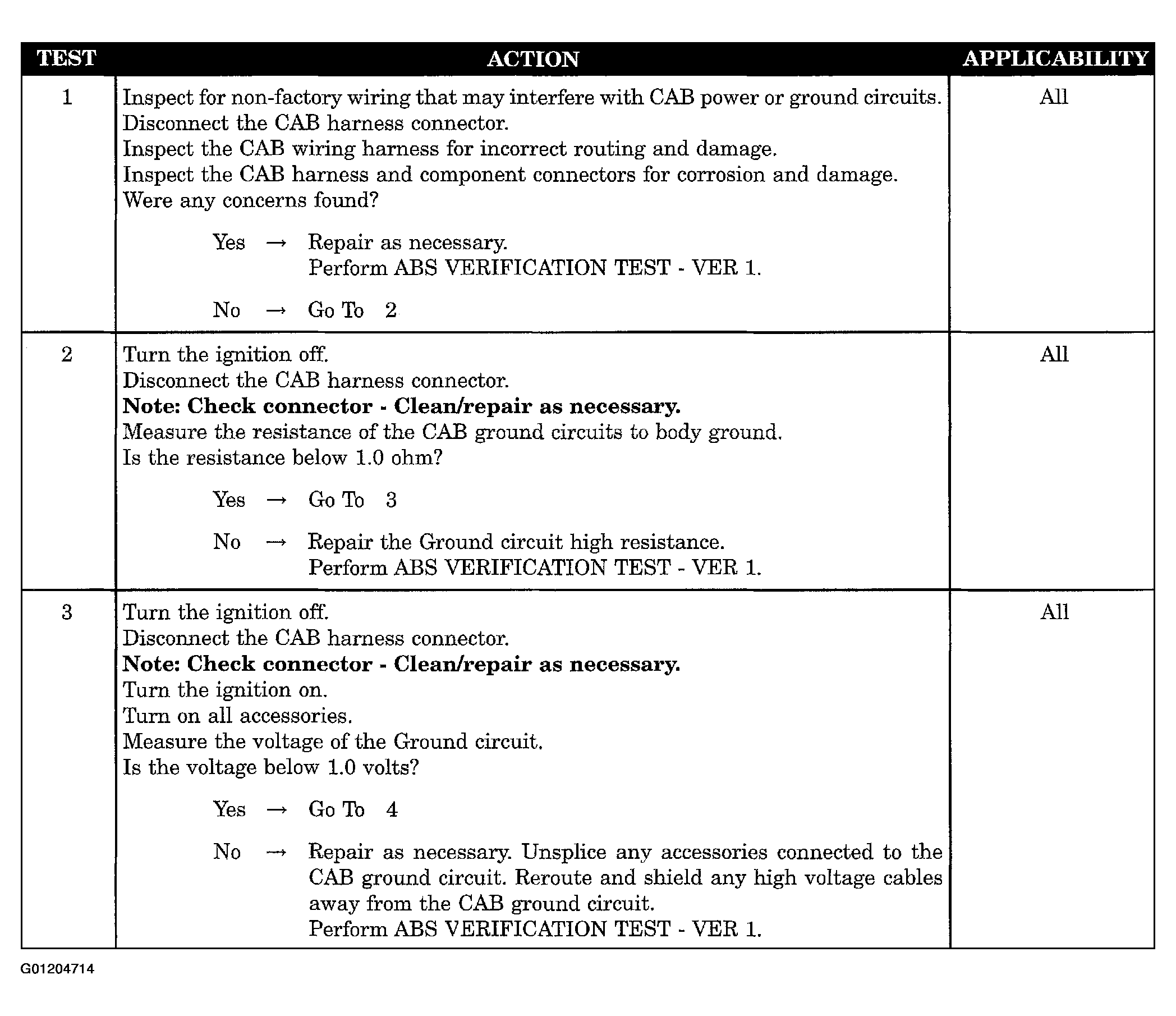

Fig 1: Testing: Controller Failure (1 Of 2)
G01204714Courtesy of DAIMLERCHRYSLER CORP.

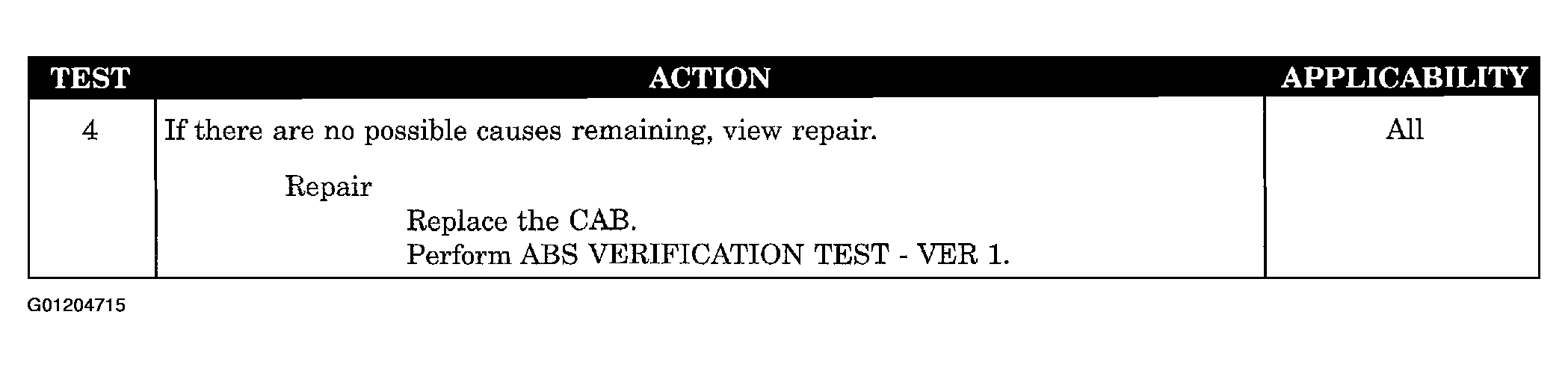

Fig 2: Testing: Controller Failure (2 Of 2)
G01204715Courtesy of DAIMLERCHRYSLER CORP.
