Battery Temperature Sensor: Removal

The battery temperature sensor is located under the vehicle battery and is attached to a mounting hole on battery tray.

1. Remove battery. Refer to REMOVAL  for procedures.
2. Disconnect sensor pigtail harness from engine wire harness.
3. Pry sensor straight up from battery tray mounting hole.

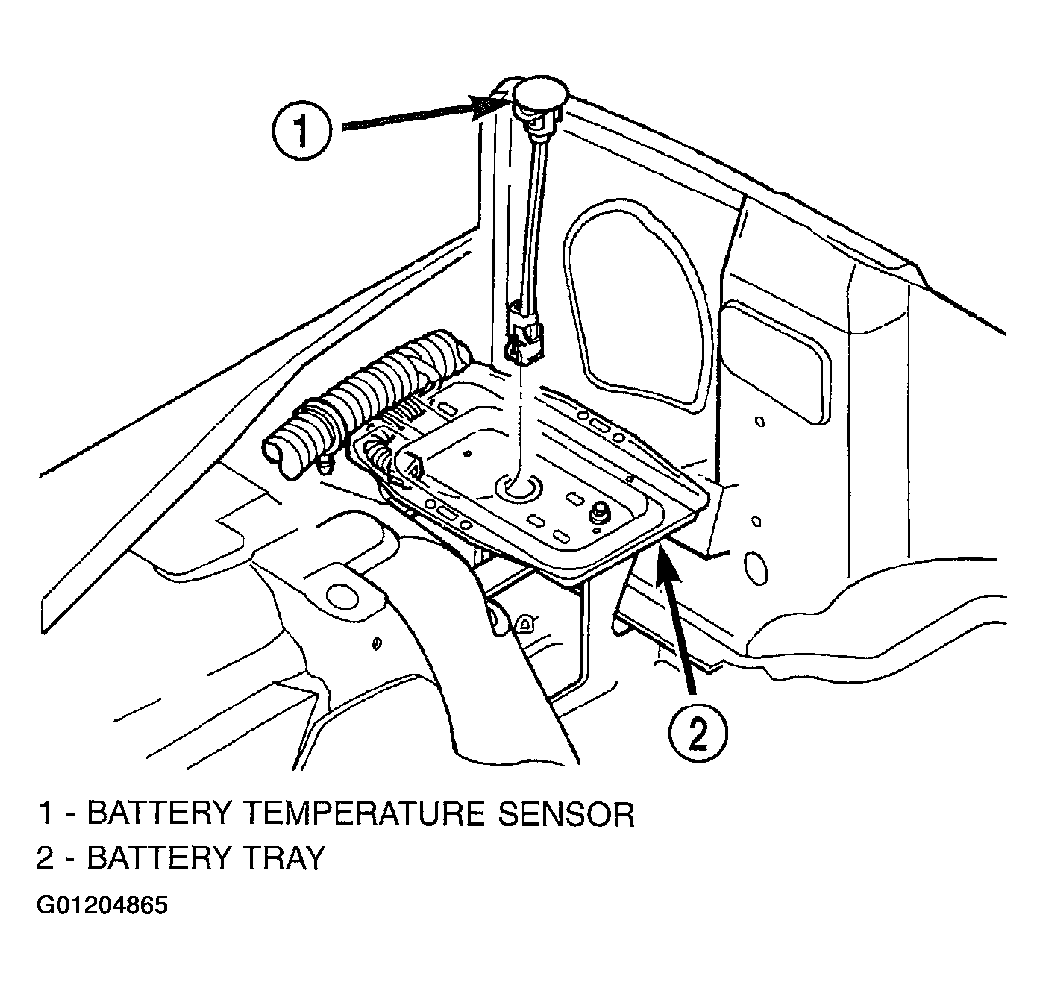

   Fig 1: Removing & Installing Battery Temperature Sensor

   Courtesy of DAIMLERCHRYSLER CORP.
