Standard Procedure - Using Micro 420 Electrical Tester: Notes

Always use the Micro 420 Instruction Manual that was supplied with the tester as a reference. If the Instruction Manual is not available, the following procedure can be used:

WARNING: ALWAYS WEAR APPROPRIATE EYE PROTECTION AND USE EXTREME CAUTION WHEN WORKING WITH BATTERIES.

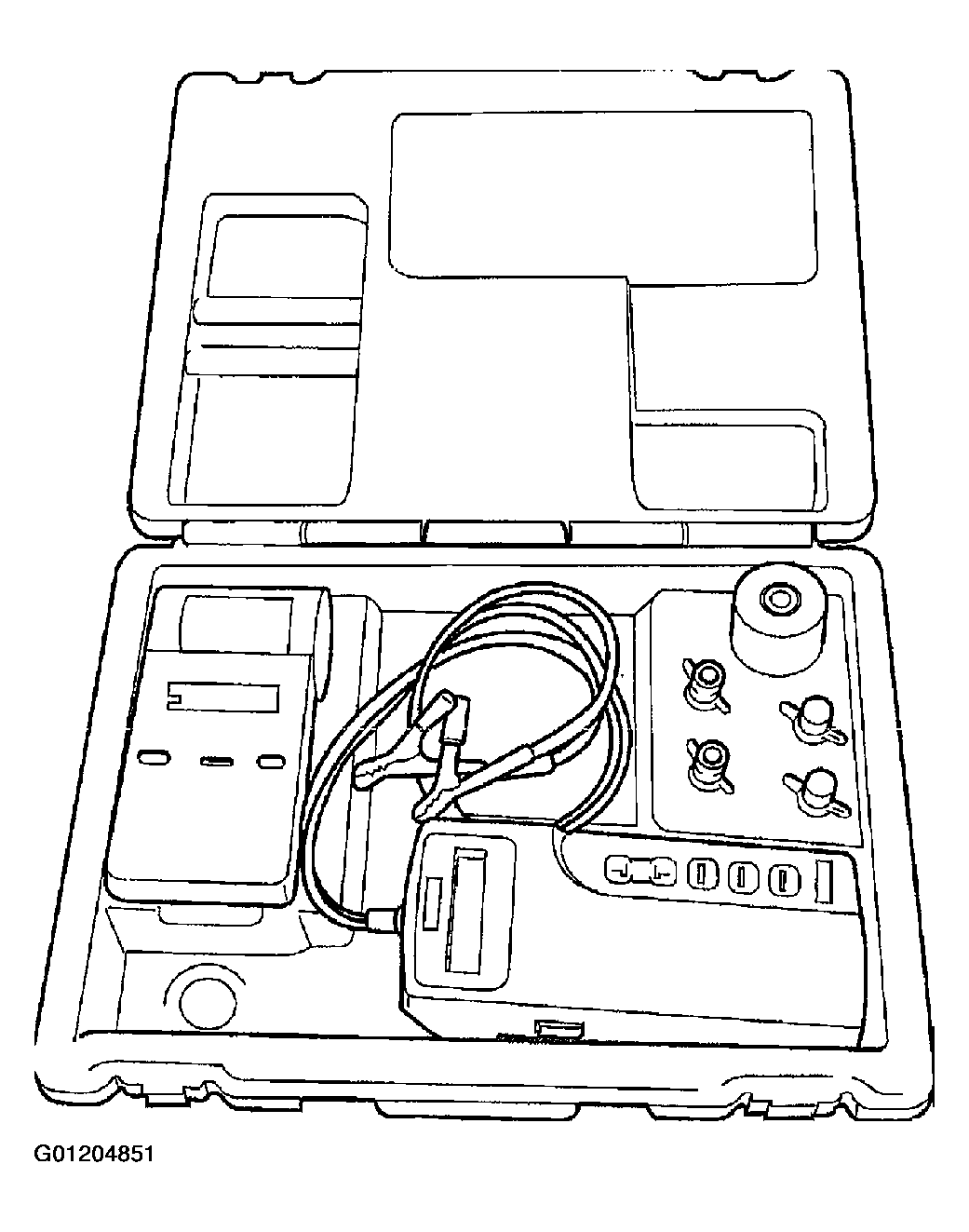

Fig 1: Identifying Micro 420 Battery Tester
G01204851Courtesy of DAIMLERCHRYSLER CORP.
