Charging System & Starting System: Generator: Removal

WARNING: DISCONNECT NEGATIVE CABLE FROM BATTERY BEFORE REMOVING BATTERY OUTPUT WIRE (B+ WIRE) FROM GENERATOR. FAILURE TO DO SO CAN RESULT IN INJURY OR DAMAGE TO ELECTRICAL SYSTEM.

Disconnect negative battery cable at battery.
Remove generator drive belt. Refer to COOLING SYSTEM for procedure.
Remove generator pivot and mounting bolts/nut (Fig 1 ) or (Fig 2 ). Position generator for access to wire connectors.

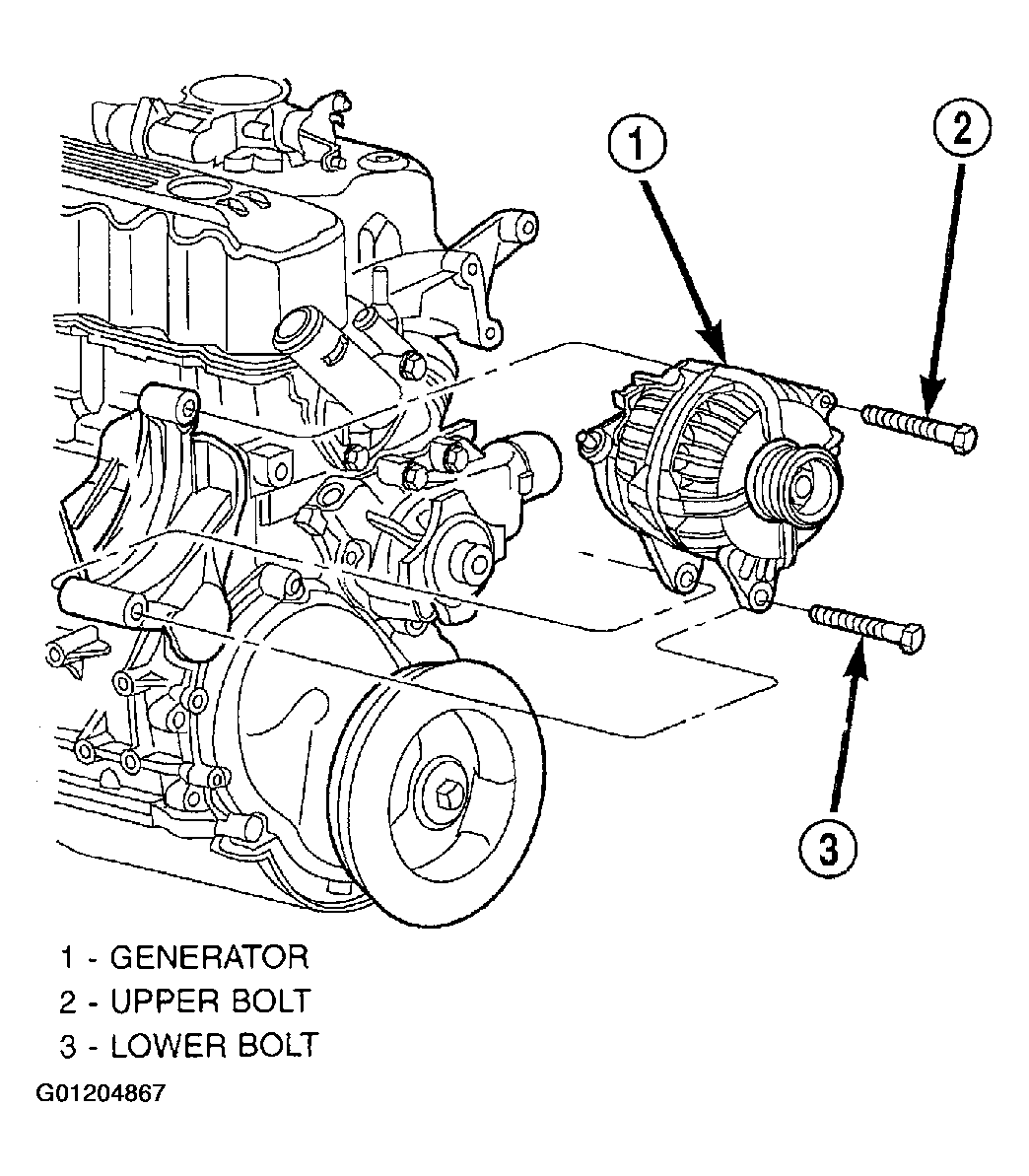

Fig 1: Removing & Installing Generator (2.5L)
Courtesy of DAIMLERCHRYSLER CORP.

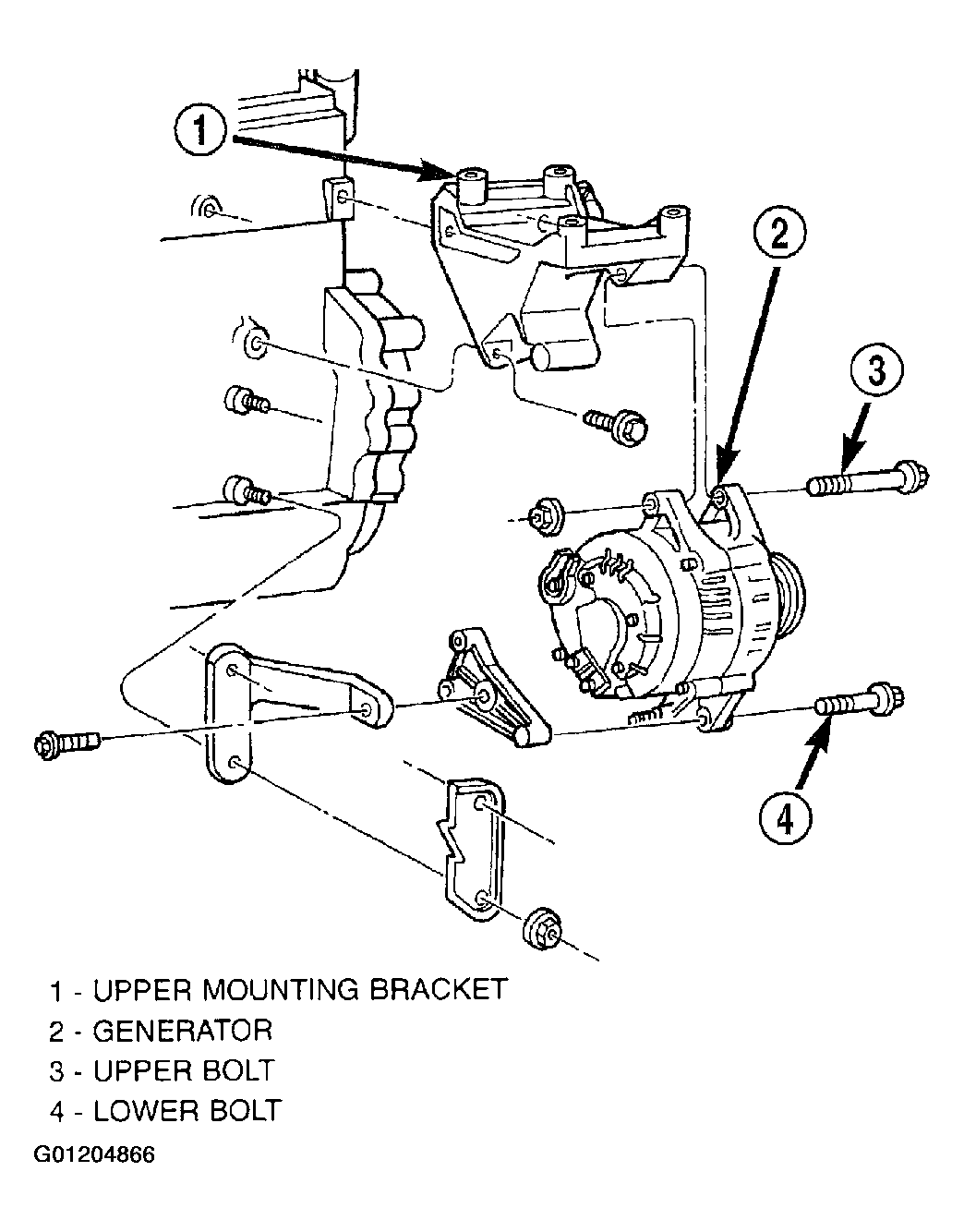

Fig 2: Removing & Installing Generator (4.0L)
Courtesy of DAIMLERCHRYSLER CORP.
If equipped, unsnap plastic cover from B+ terminal.
Remove B+ cable output terminal mounting nut at rear of generator (Fig 3 ) or (Fig 4 ). Disconnect terminal from generator.
Disconnect field wire connector at rear of generator by pushing on connector tab.
Remove generator from vehicle.

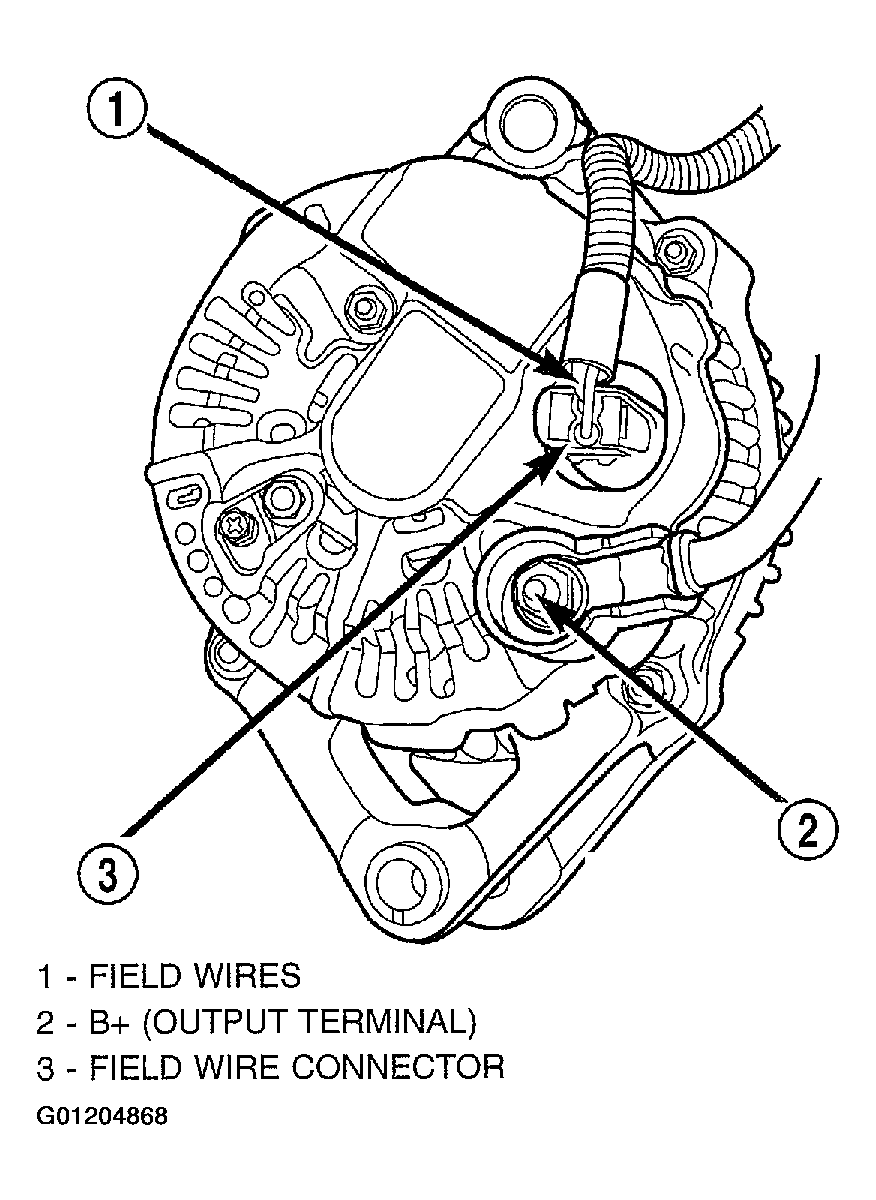

Fig 3: Locating Generator Connectors (2.5L) (Typical Denso)
Courtesy of DAIMLERCHRYSLER CORP.

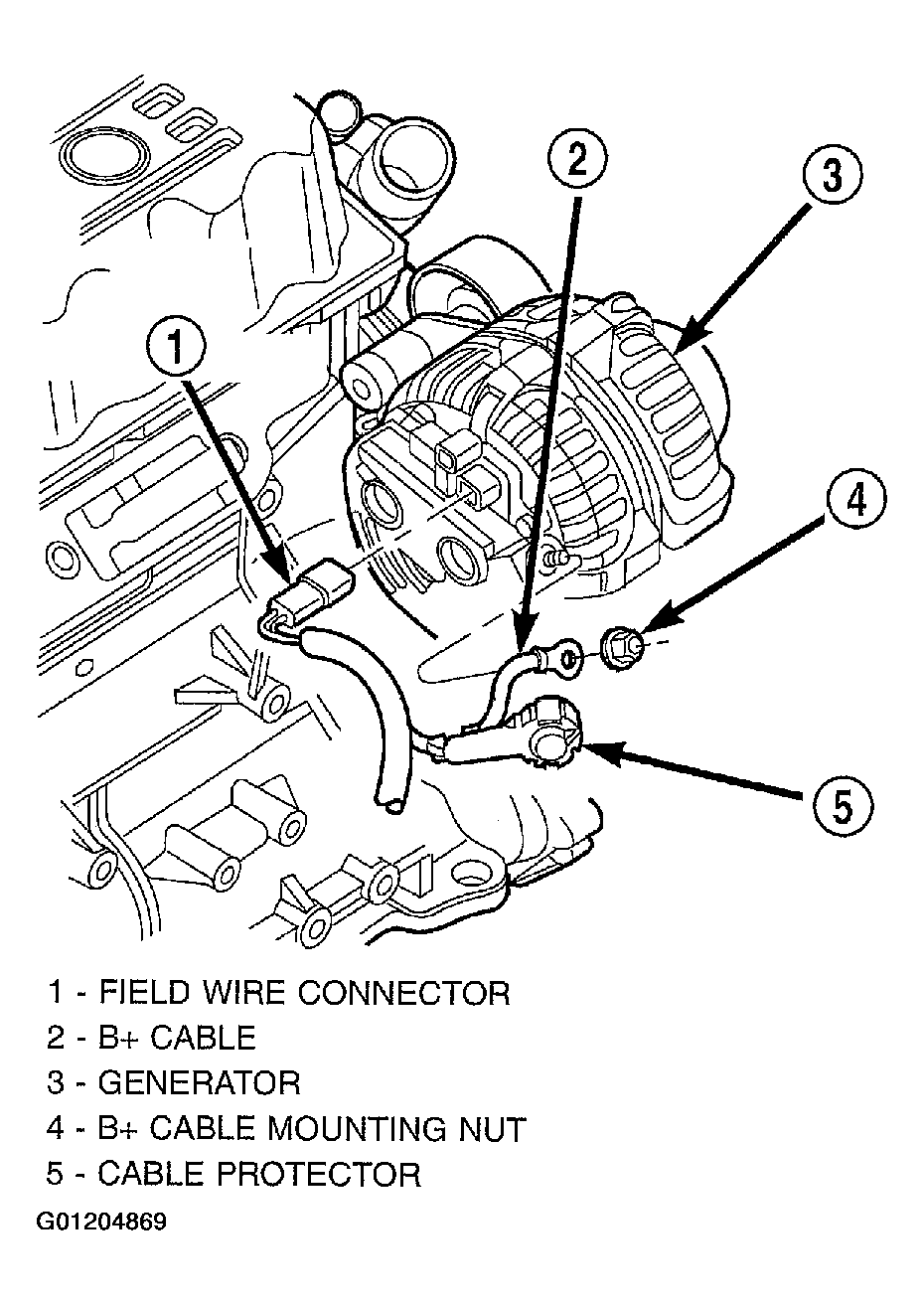

Fig 4: Locating Generator Connectors (4.0L)
Courtesy of DAIMLERCHRYSLER CORP.
