Battery Temperature Sensor

The Battery Temperature Sensor (BTS) is attached to the battery tray located under the battery. See Fig 1 .

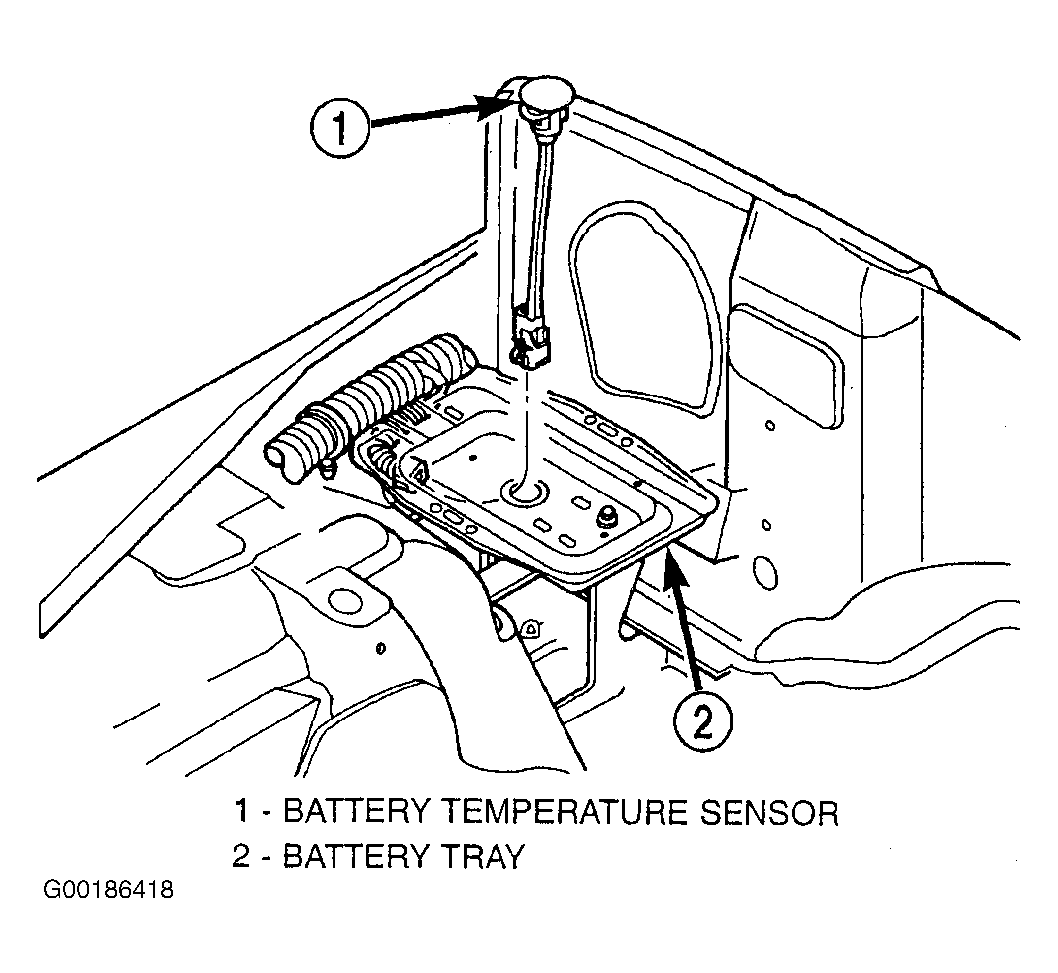

Fig 1: Locating Battery Temperature Sensor
G00186418Courtesy of CHRYSLER CORP.
