Fuse Block

8w-12-2 Junction Block (Front):

8w-12-3 Junction Block (Rear):

Junction Block Body Control Module:

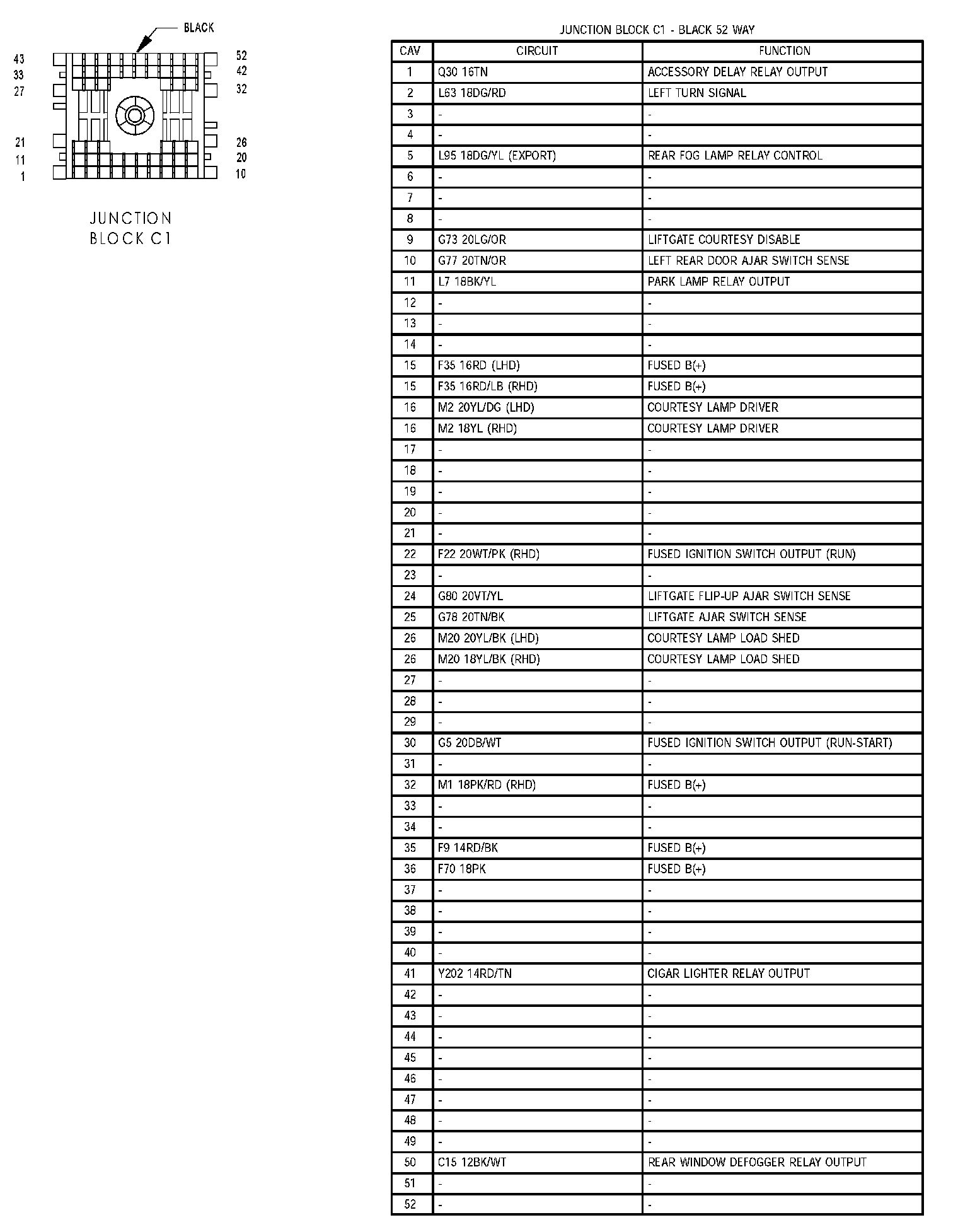

Junction Block C1:

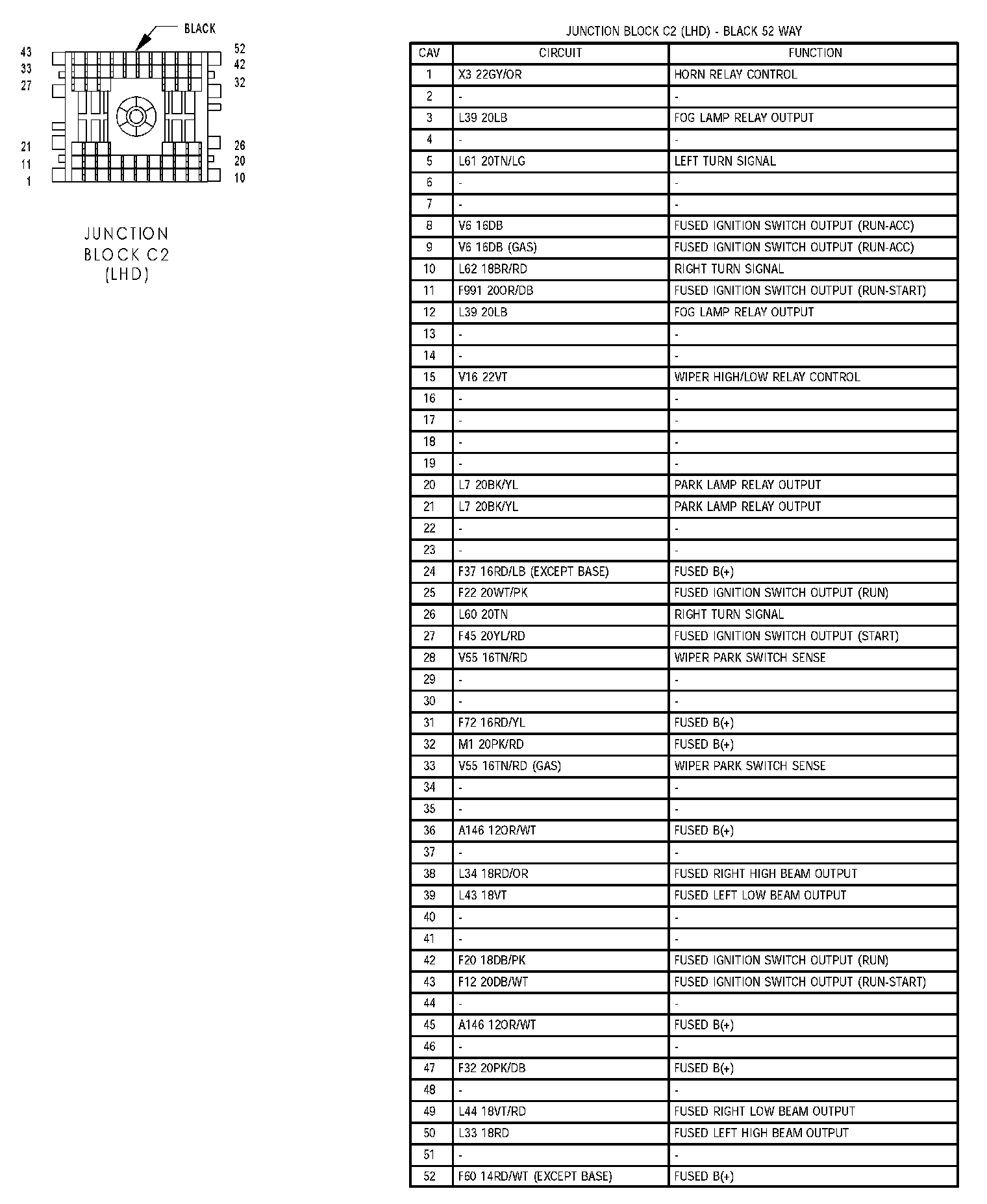

Junction Block C2 (LHD):

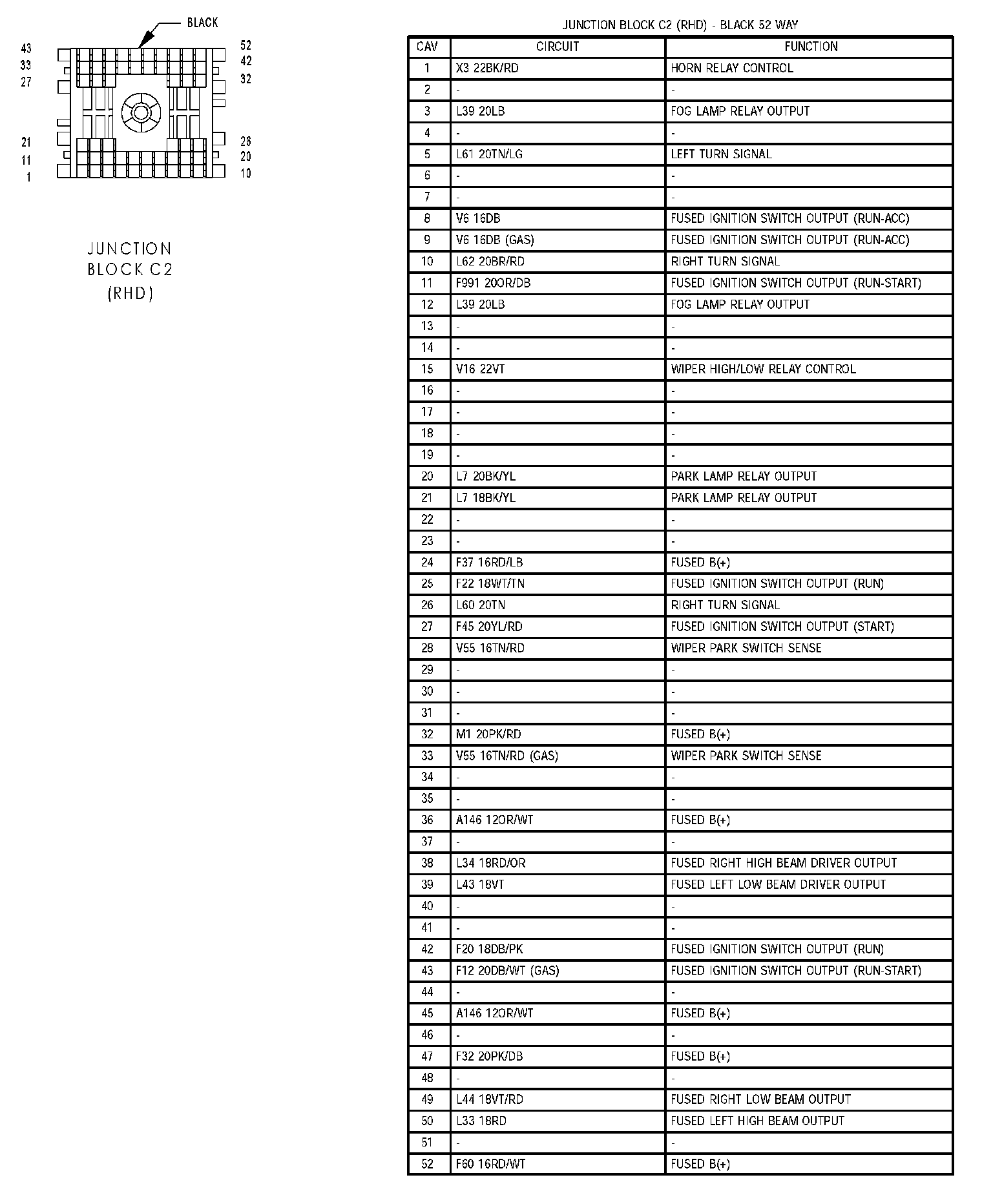

Junction Block C2 (RHD):

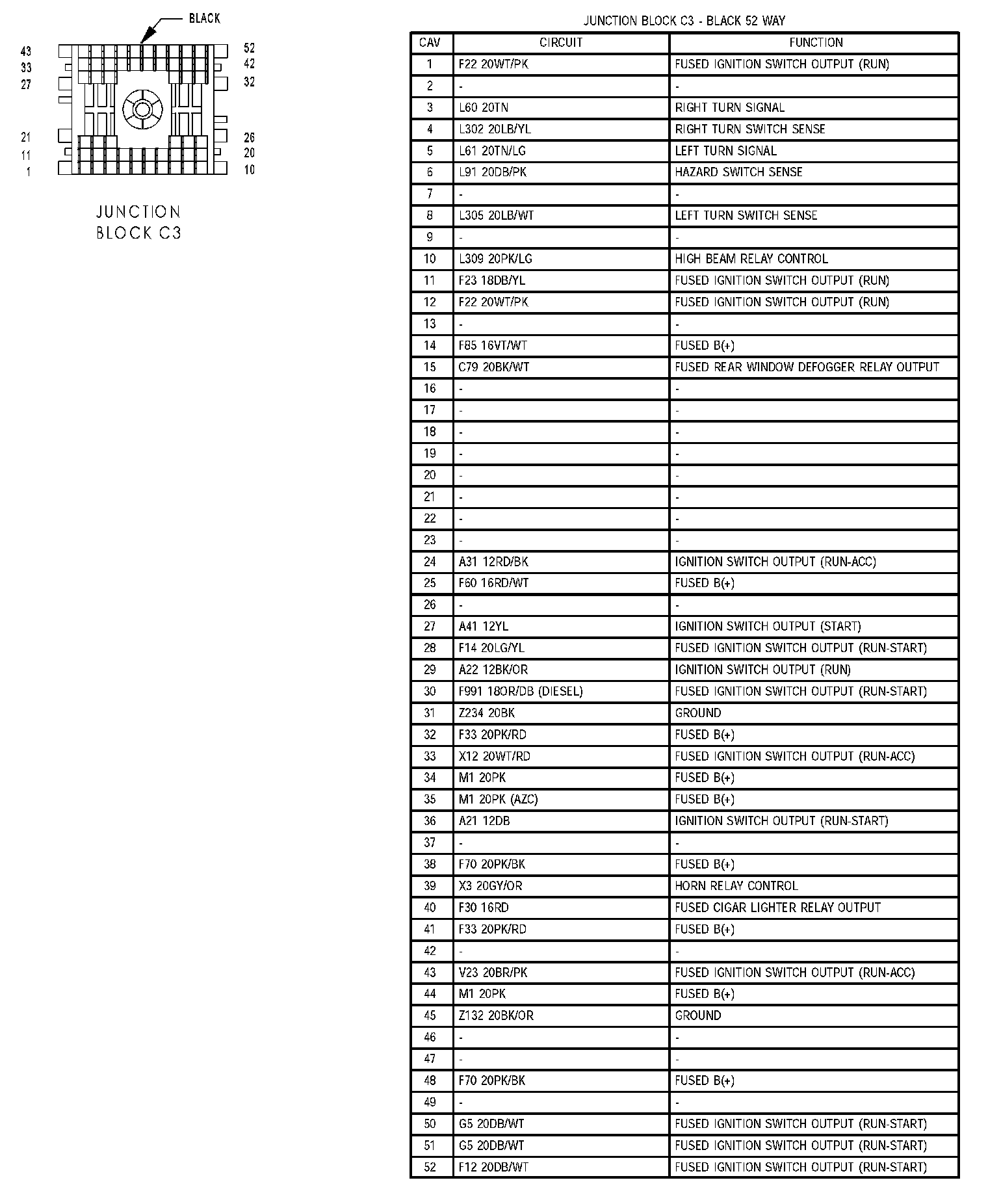

Junction Block C3:

Junction Block C4:

Junction Block C5:
