Map Light: Service and Repair

REMOVAL
1. Remove the overhead console.

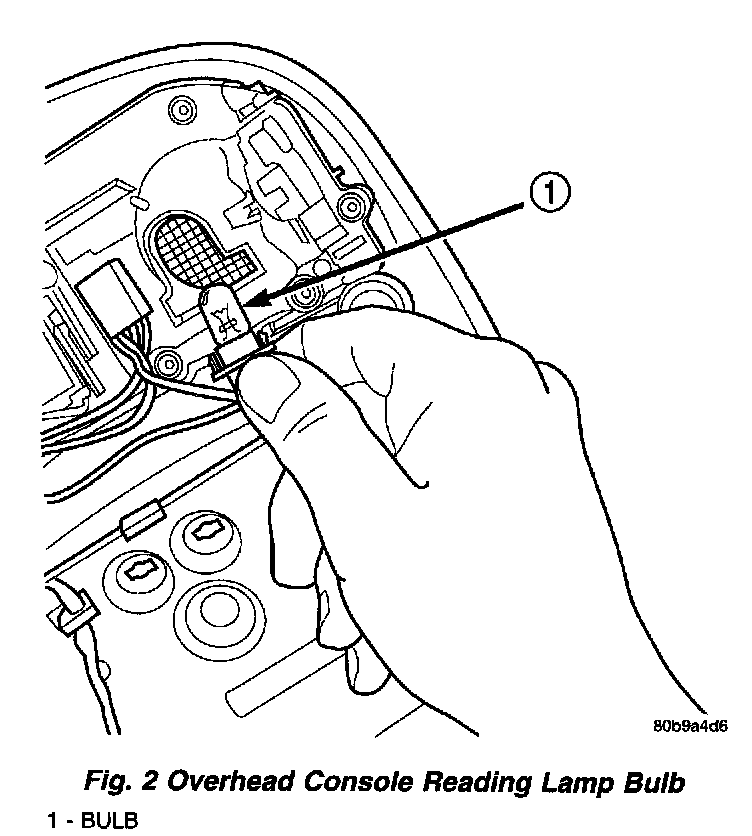

Fig.2 Overhead Console Reading Lamp Bulb:

2. Rotate the console until the bulb is visible.
3. Grasp the bulb and remove from the socket.

INSTALLATION
1. Push the bulb into the bulb socket.
2. Install the console on the headliner and roof panel.
3. Align the screw hole and install the screw.
