Chime Inoperative With Drivers Seat Belt Unfastened

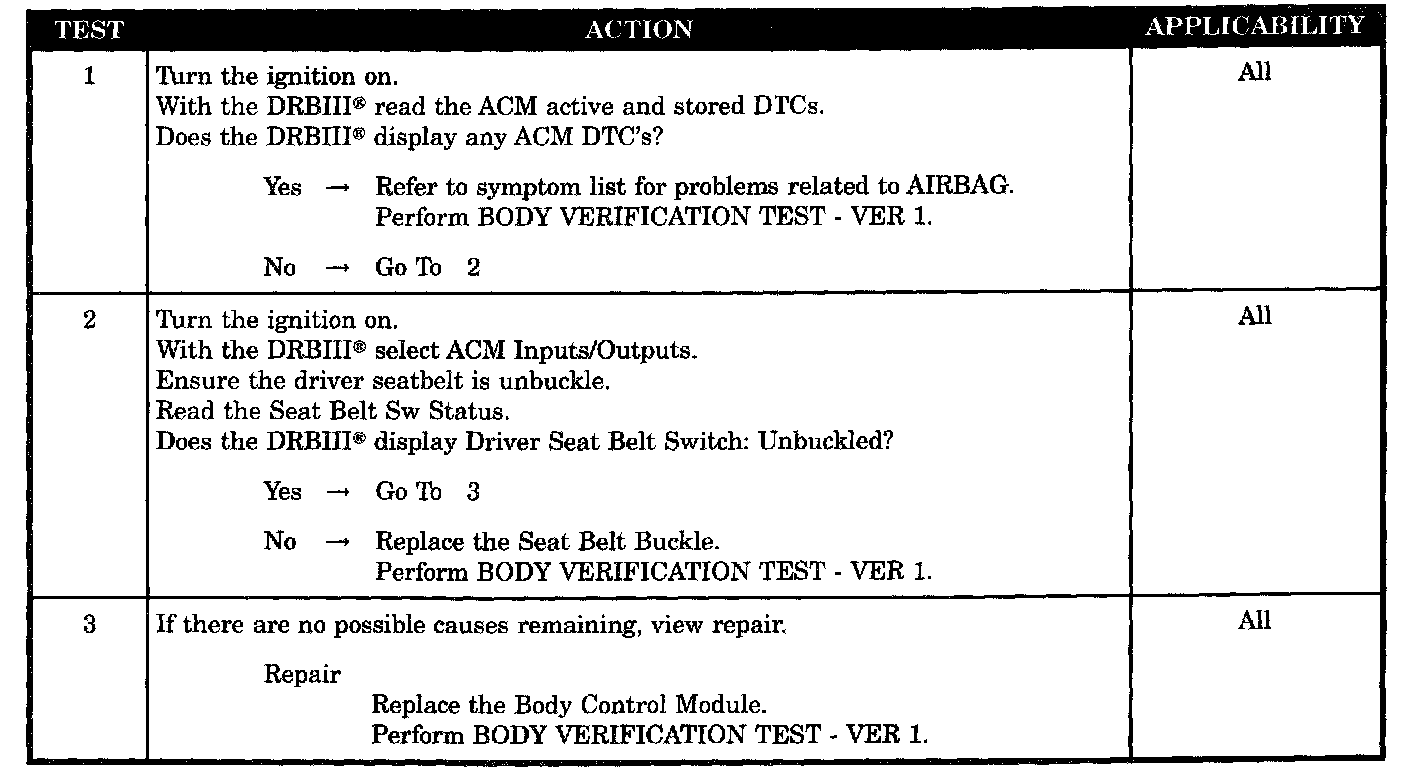

Test 1 - 3:
SYMPTOM
CHIME INOPERATIVE WITH DRIVERS SEAT BELT UNFASTENED
POSSIBLE CAUSES
-
Airbag control module DTCs
-
Seat Belt Buckle
-
Body control module
