Ride Height

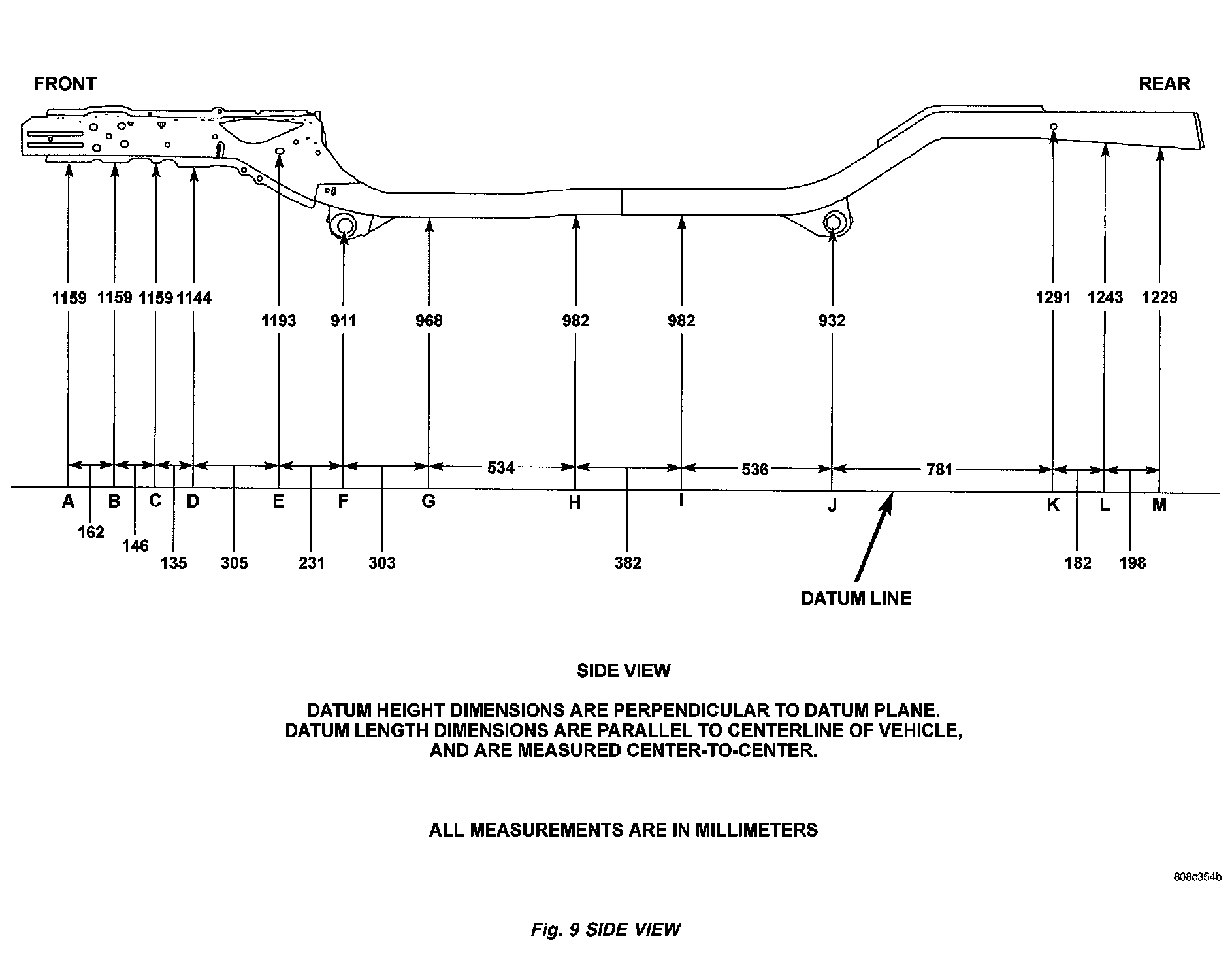

Fig. 9:






Chrysler does not provide a ride height specification for the Grand Cherokee. Use above image specifications and adjust for tire and wheel installed on vehicle.
