System Specifications

Brake Components

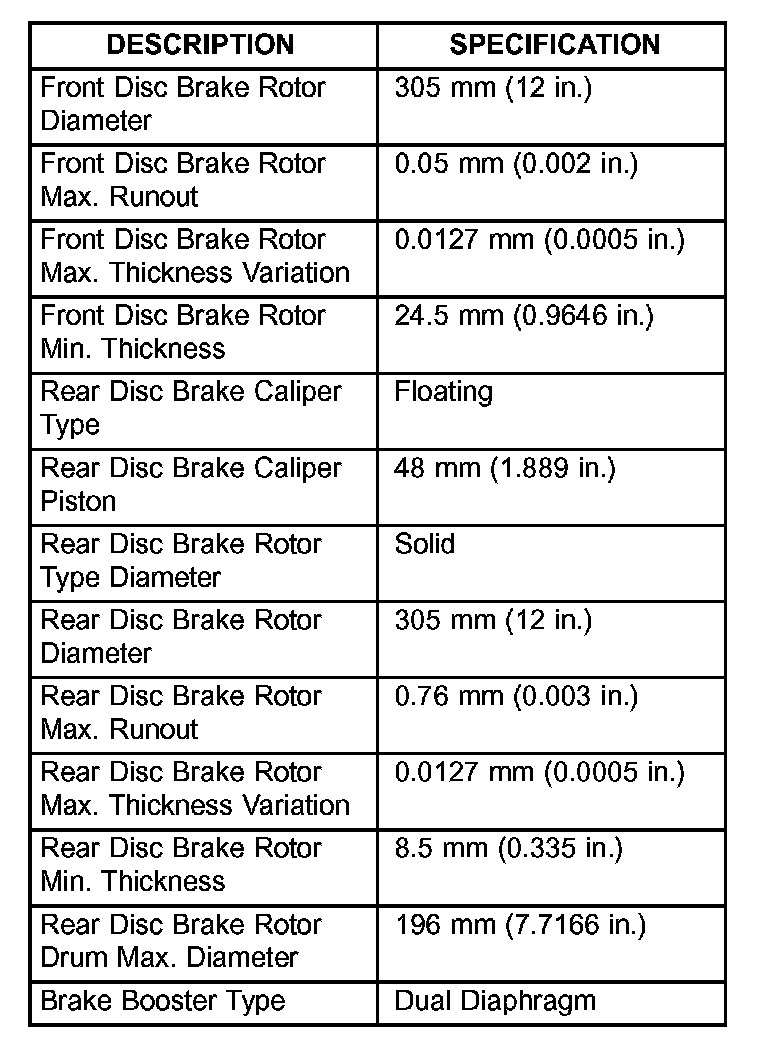

Rotor, Drum, Caliper And Booster Specifications:





Specifications

Torque Chart

Torque Table, 1 Of 2:




Torque Table, 2 Of 2:





Torque Specifications
